2612-08-08-08-SS

Connection Details	Side 1 Connection Type: Female NPTF Side 1 Pipe Size: 1/2" Side 1 Thread Type: 1/2-14 NPTF Side 1 Standard: SAE J476 Side 1 Role: Pipe Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 1/2" Side 3 Thread Type: 3/4-16 UNF Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Female Branch Tee Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 1.062 Weight: 0.49 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-202901-8-8
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female Pipe x Female Pipe x Male JIC

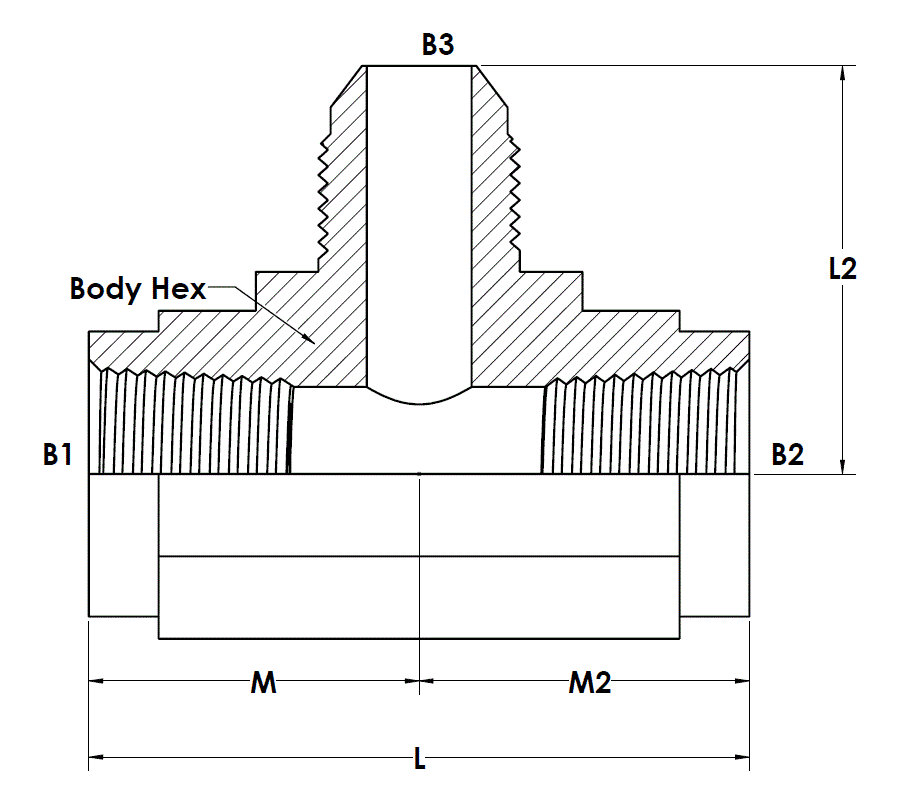

Technical Series Configuration	SAE J476 Female NPTF x Female NPTF x SAE J514 Male JIC Tube Branch Tee
Side 1 Connection Type	Female NPTF
Side 2 Connection Type	Female NPTF
Shape	Tee
Product Type	Fittings
