6400-12-20-O-SS-VITON - Capital Rubber & Gasket: A Singer Industrial Company

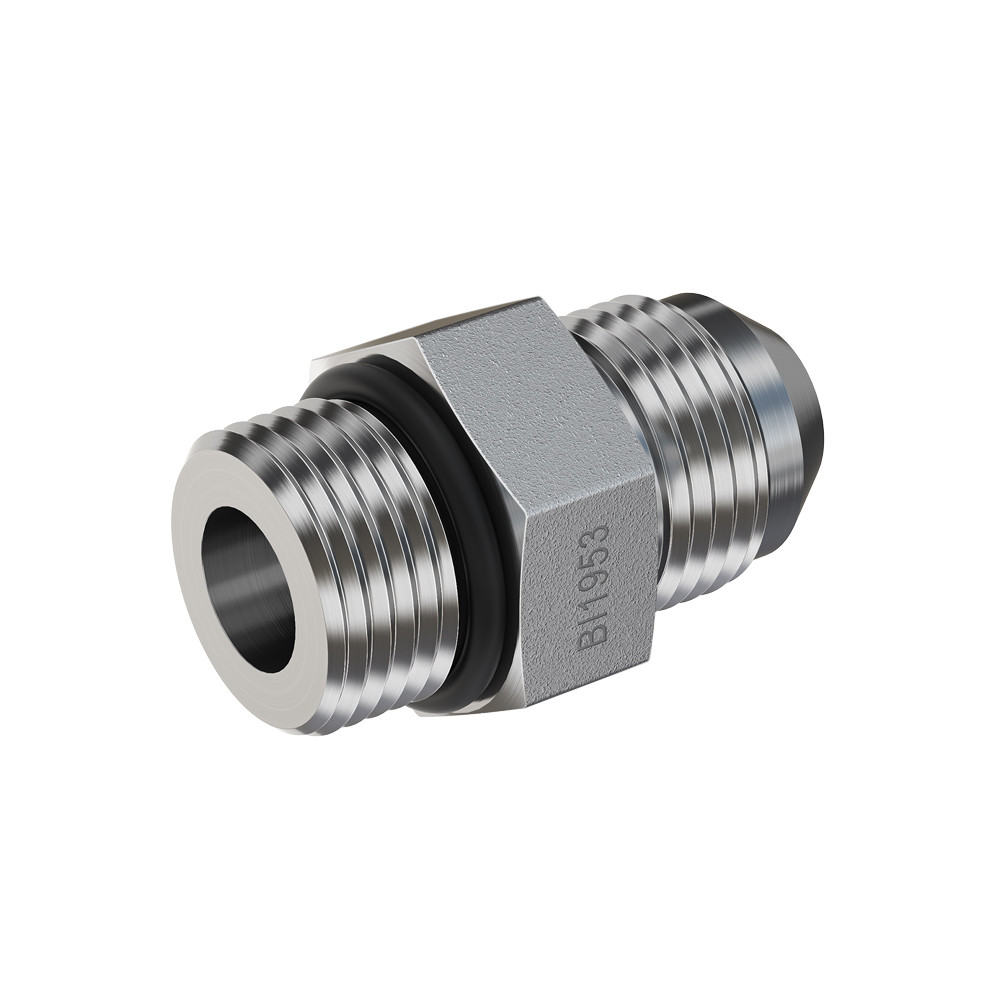

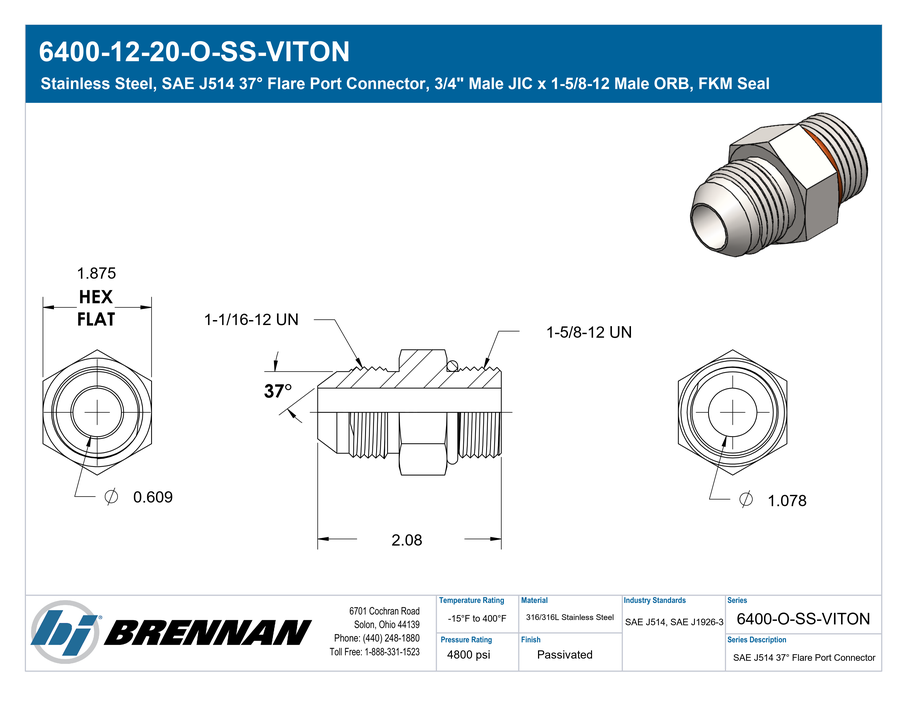

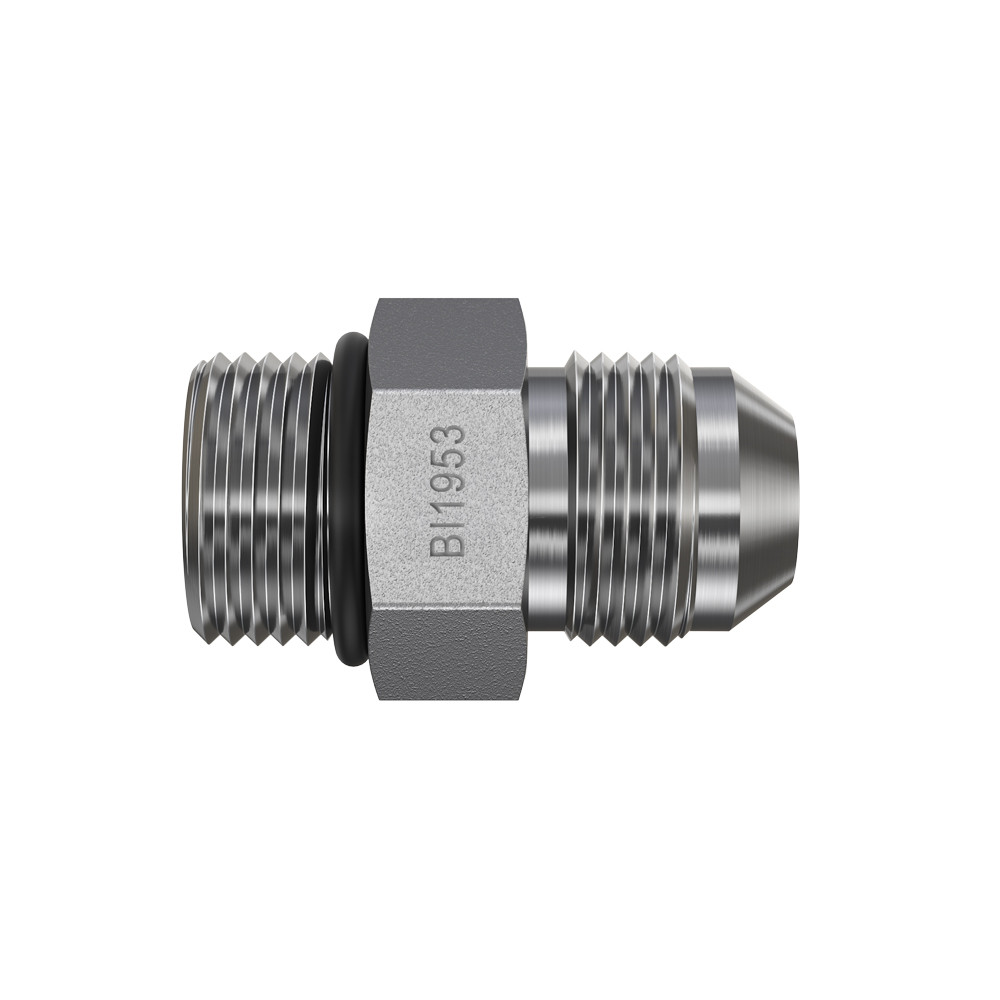

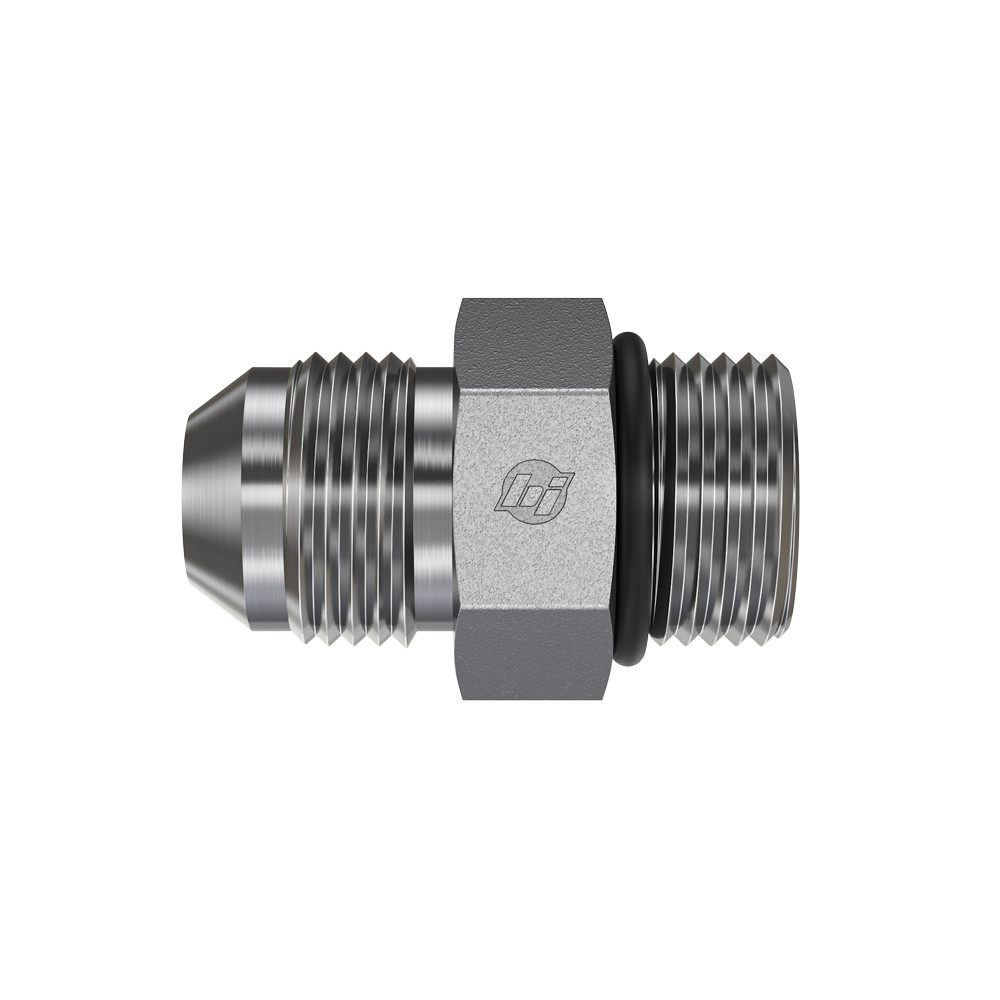

Stainless Steel, SAE J514 37° Flare Port Connector, 3/4″ Male JIC x 1-5/8-12 Male ORB, FKM Seal

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/4" Side 1 Thread Type: 1-1/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male ORB Side 2 Thread Type: 1-5/8-12 UN Side 2 Standard: SAE J1926 Side 2 Role: Port Connection Side 2 Replacement Seal: 4001-20
Body & Materials	Shape: Straight Shape Type: Male Connector Primary Material: Stainless Steel Material Grade: 316/316L Seal Code: FKM Seal Material: Viton (Fluorocarbon)
Dimensions	Weight: 0.71 lb
Performance Specifications	Working Pressure: 4800 psi Temperature Range: -15°F to 400°F Temperature Notes: Temperature limited by FKM Seal Burst Pressure: 19200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 213-259-202702-20-12 Parker TFD Part Number: 12-20 F5OX-SS FKM SAE J514 Part Number: SAE J514 12-20 070120SF
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male ORB
Technical Series Configuration	SAE J514 Male JIC x SAE J1926-3 Male O-Ring Boss Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male ORB
Shape	Straight
Product Type	Fittings
