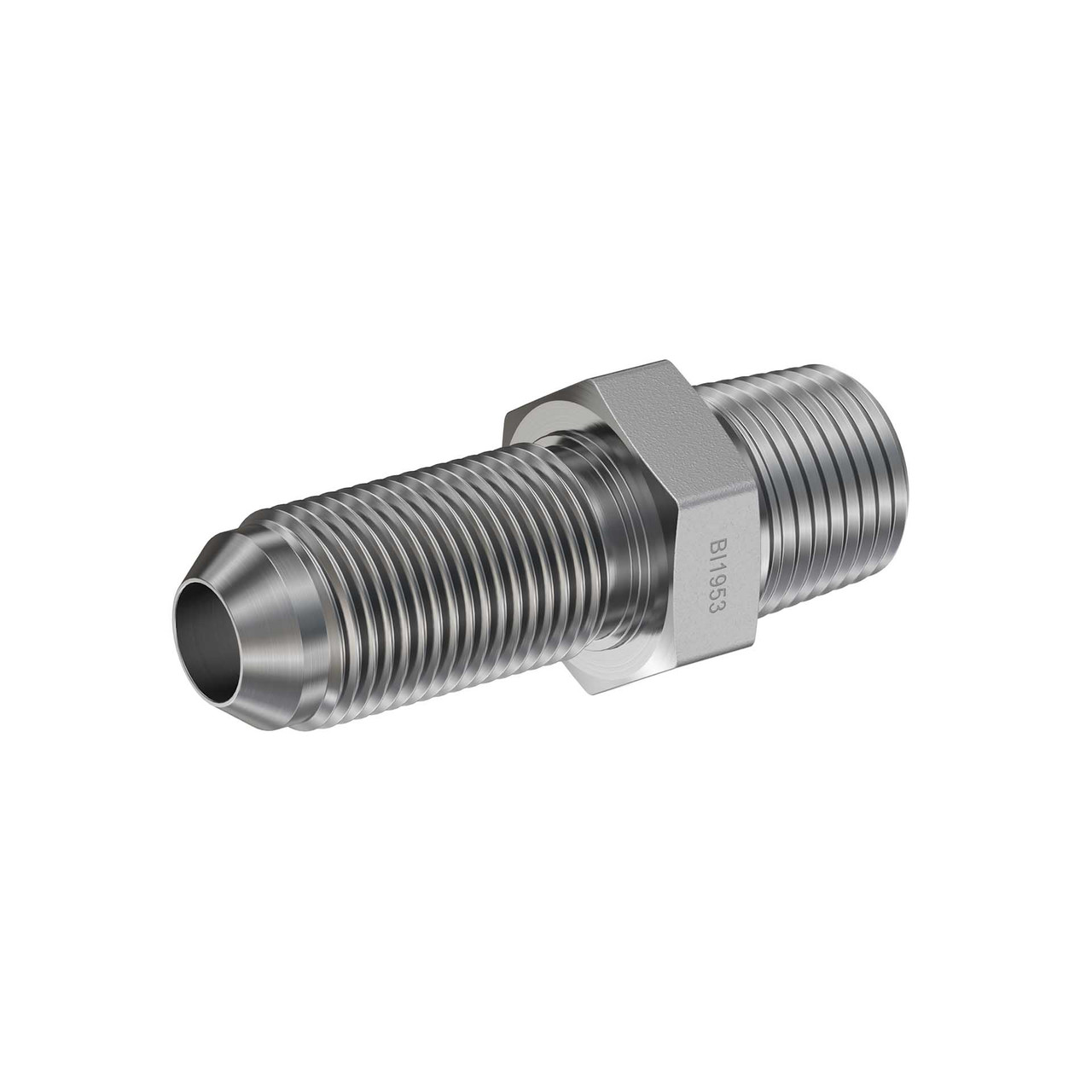

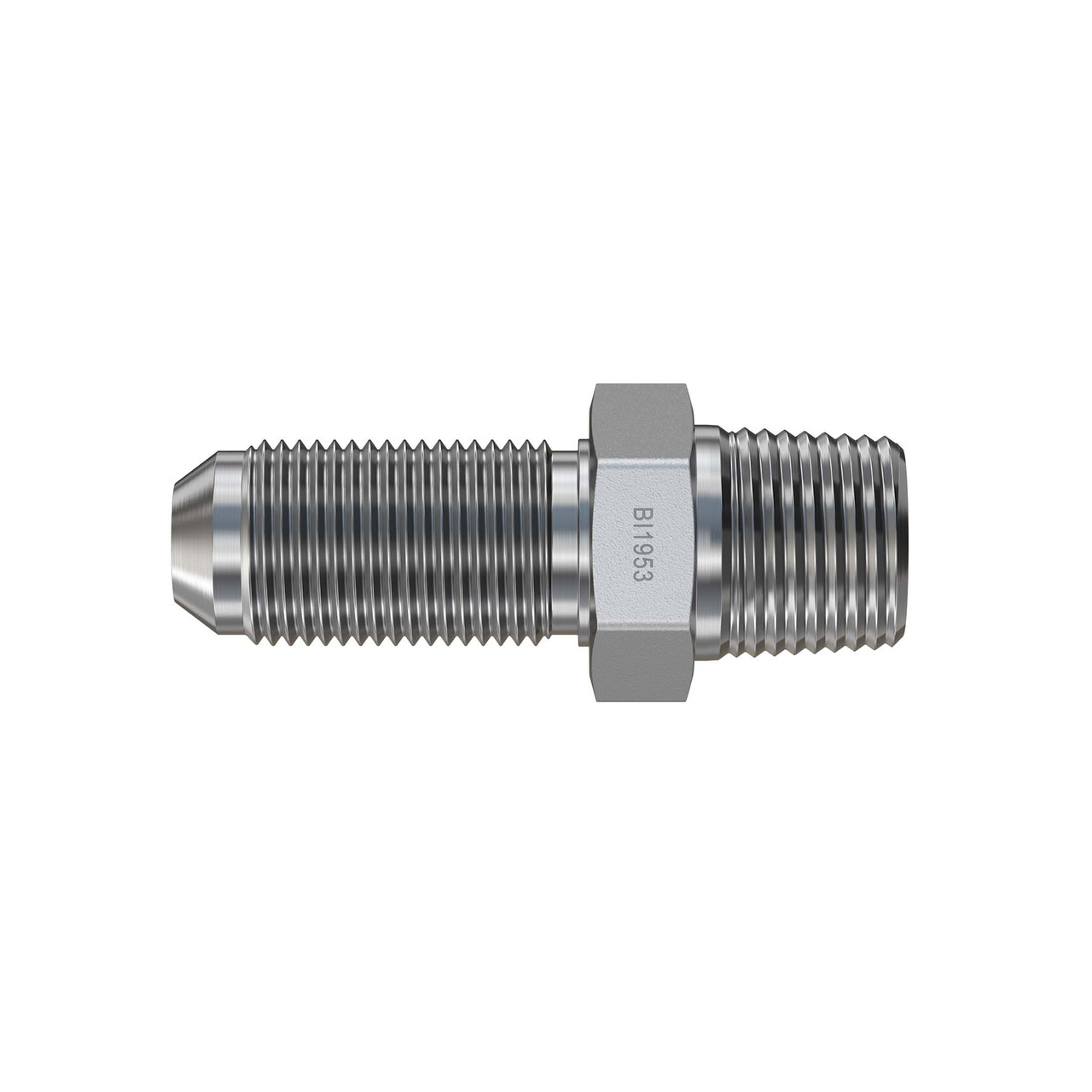

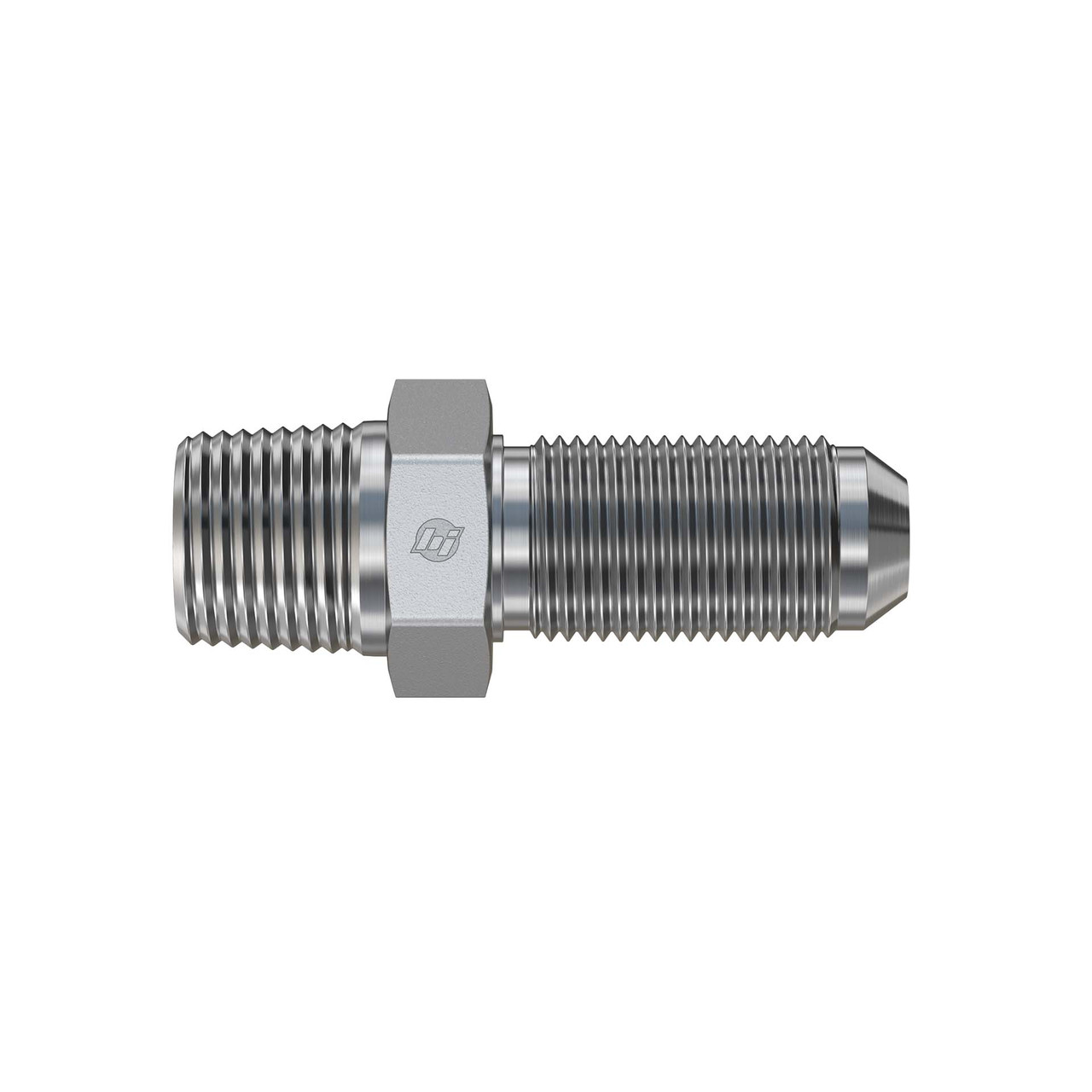

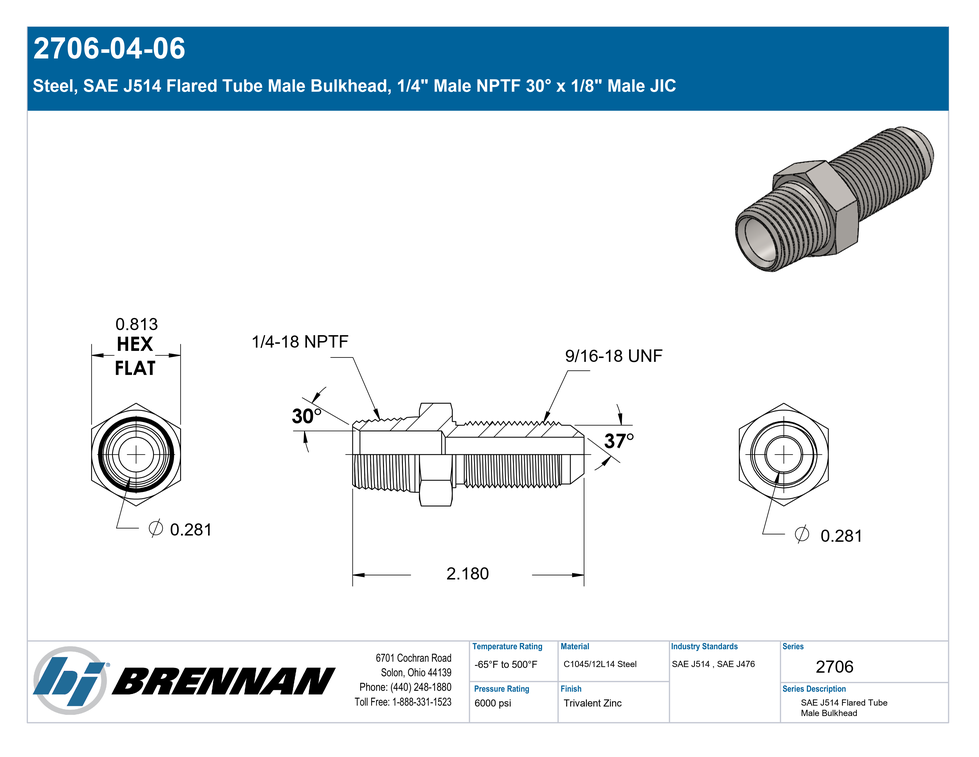

Steel, SAE J514 Flared Tube Male Bulkhead, 1/4″ Male NPTF 30° x 1/8″ Male JIC

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 1/4" Side 1 Thread Type: 1/4-18 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Male Bulkhead Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc Feature: Bulkhead
Dimensions	Hex/Wrench: 0.813 Weight: 0.12 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2240-1-4-6S Parker TFD Part Number: 6 WFTX-S
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male Pipe x Male JIC Bulkhead
Technical Series Configuration	SAE J476 Male NPTF x SAE J514 Male JIC Tube Bulkhead
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
