9020-06-06

Connection Details	Side 1 Connection Type: Male BSPP 60° Line/Port Side 1 Thread Type: G – 3/8-19 Side 1 Standard: ISO 8434-6, ISO 1179 Side 1 Role: Line/Port Connection Side 2 Connection Type: Male BSPT 30° Side 2 Pipe Size: 3/8" Side 2 Thread Type: R – 3/8-19 Side 2 Standard: ISO 7-1 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc

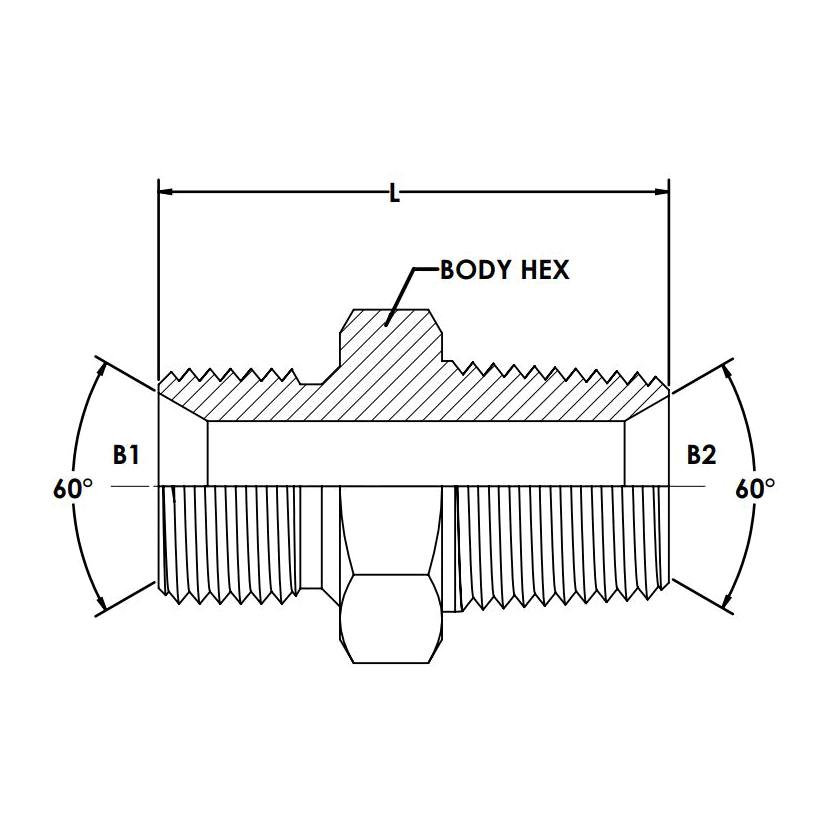

Dimensions	Hex/Wrench: 0.866 Weight: 0.11 lb
Performance Specifications	Working Pressure: 5100 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 20400 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 6-6F3MK4S
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male BSPP x Male BSPT
Technical Series Configuration	ISO 1179/ISO 8434-6 Male BSPP Port/Line x ISO 7-1 Male BSPT Pipe Connector
Side 1 Connection Type	Male BSPP 60° Line/Port
Side 2 Connection Type	Male BSPT 30°
Shape	Straight
Product Type	Fittings
