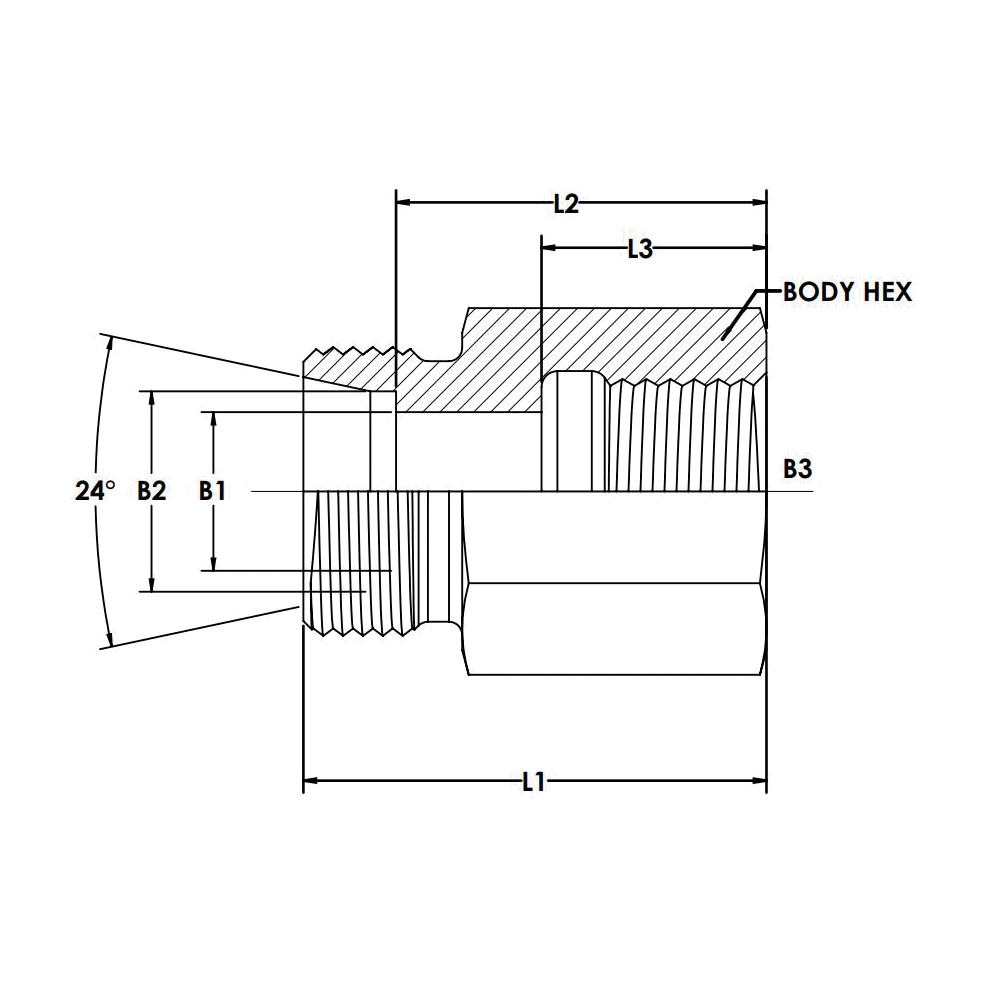

D8405-S08-14-X

Connection Details	Side 1 Connection Type: Male DIN Side 1 Tube OD: 8mm Side 1 Thread Type: M16X1.5 Side 1 Standard: DIN 2353, ISO 8434-1 Side 1 Role: Line/Tube Connection Side 1 DIN Pressure Series: Heavy Side 2 Connection Type: Female Metric Side 2 Thread Type: M14X1.5 Side 2 Standard: ISO 9974-1 Side 2 Role: Port Connection
Body & Materials	Shape: Straight Shape Type: Female Connector Primary Material: Steel Material Grade: 11SMnPb30 Plating: Zinc Nickel
Dimensions	Hex/Wrench: 19mm Weight: 0.10 lb
Performance Specifications	Working Pressure: 5802 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 1,000 hrs no red rust per DIN ISO 9227 Burst Pressure: 23208 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: GAI08SMCFX
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male DIN x Female Metric, Body Only
Technical Series Configuration	DIN 2353/ISO 8434-1 Flareless Tube x ISO 9974-1 Female Metric Port Connector, Body Only
Side 1 Connection Type	Male DIN
Side 2 Connection Type	Female Metric
Shape	Straight
Product Type	Fittings
