7002-05-08 - Capital Rubber & Gasket: A Singer Industrial Company

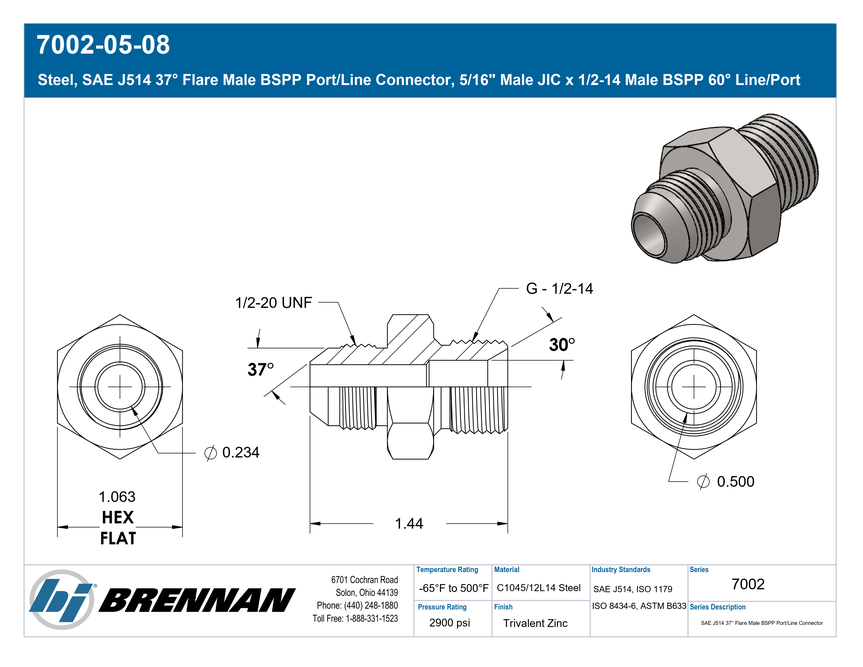

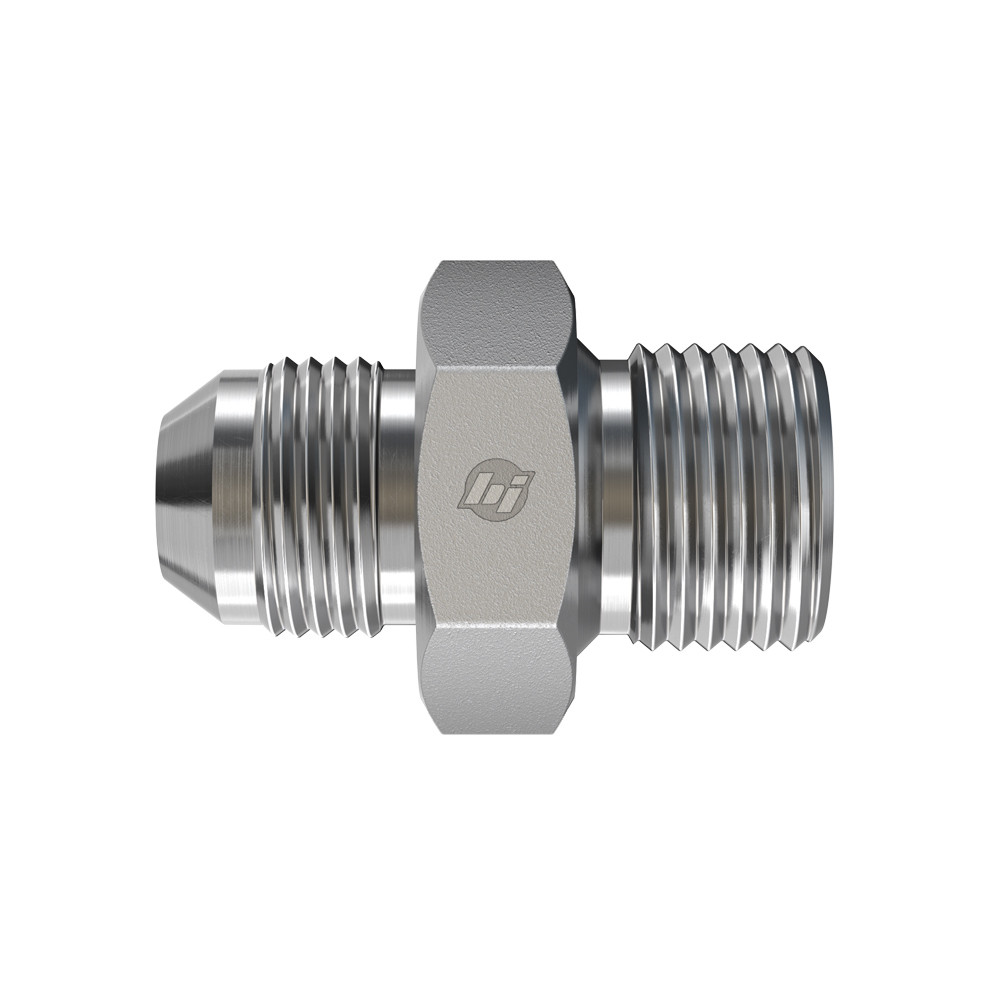

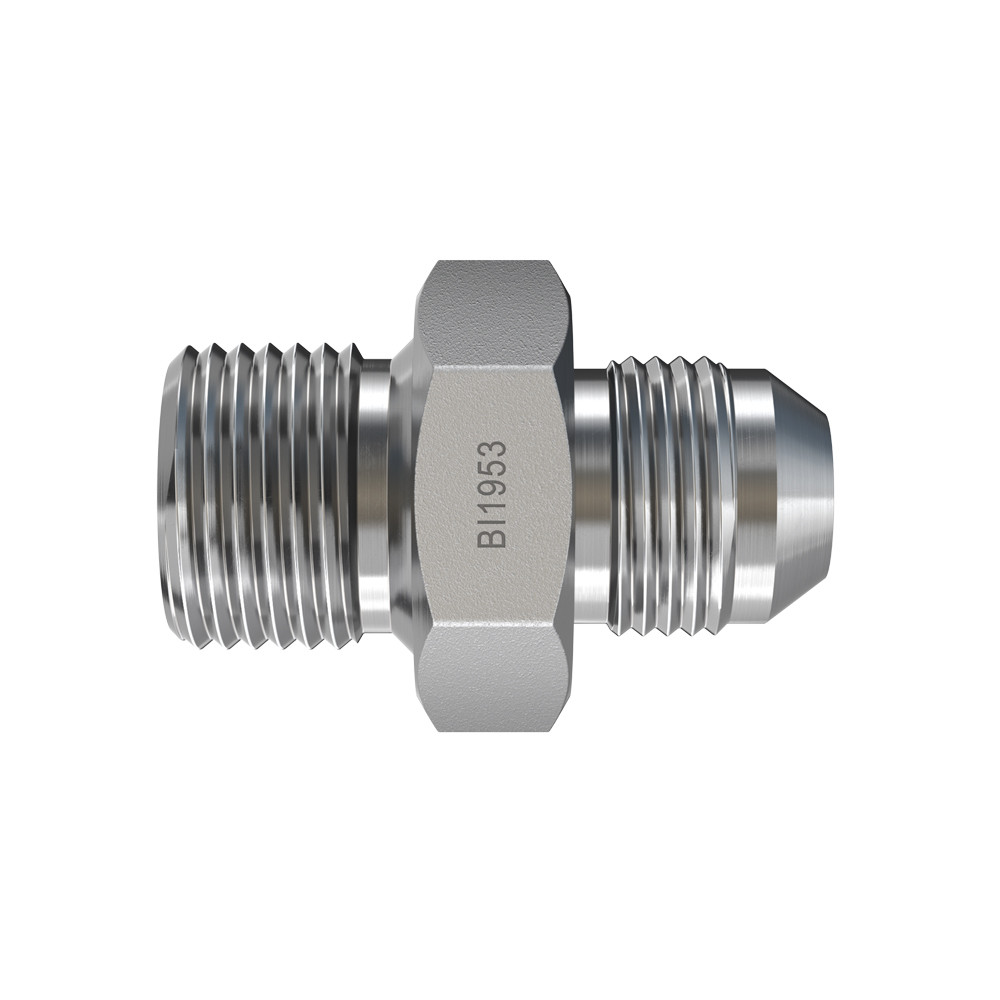

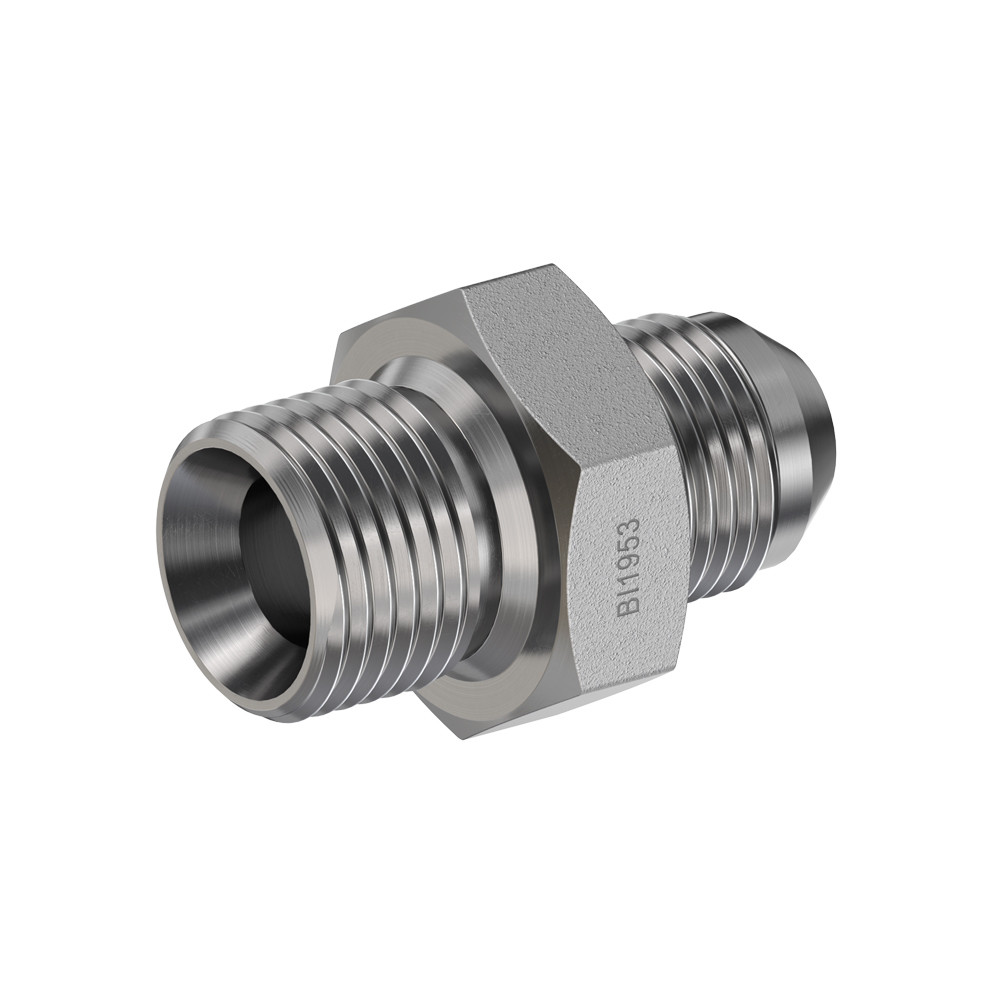

Steel, SAE J514 37° Flare Male BSPP Port/Line Connector, 5/16″ Male JIC x 1/2-14 Male BSPP 60° Line/Port

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/16" Side 1 Thread Type: 1/2-20 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male BSPP 60° Line/Port Side 2 Thread Type: G – 1/2-14 Side 2 Standard: ISO 8434-6, ISO 1179 Side 2 Role: Line/Port Connection
Body & Materials	Shape: Straight Shape Type: Adapter Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 1.063 Weight: 0.15 lb
Performance Specifications	Working Pressure: 2900 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 11600 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2063-8-5S Parker TFD Part Number: 5-8 XHK4S
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male BSPP (Port/Line)
Technical Series Configuration	SAE J514 Male JIC Tube x ISO 1179 / ISO 8434-6 Male BSPP Port/Line Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male BSPP 60° Line/Port
Shape	Straight
Product Type	Fittings
