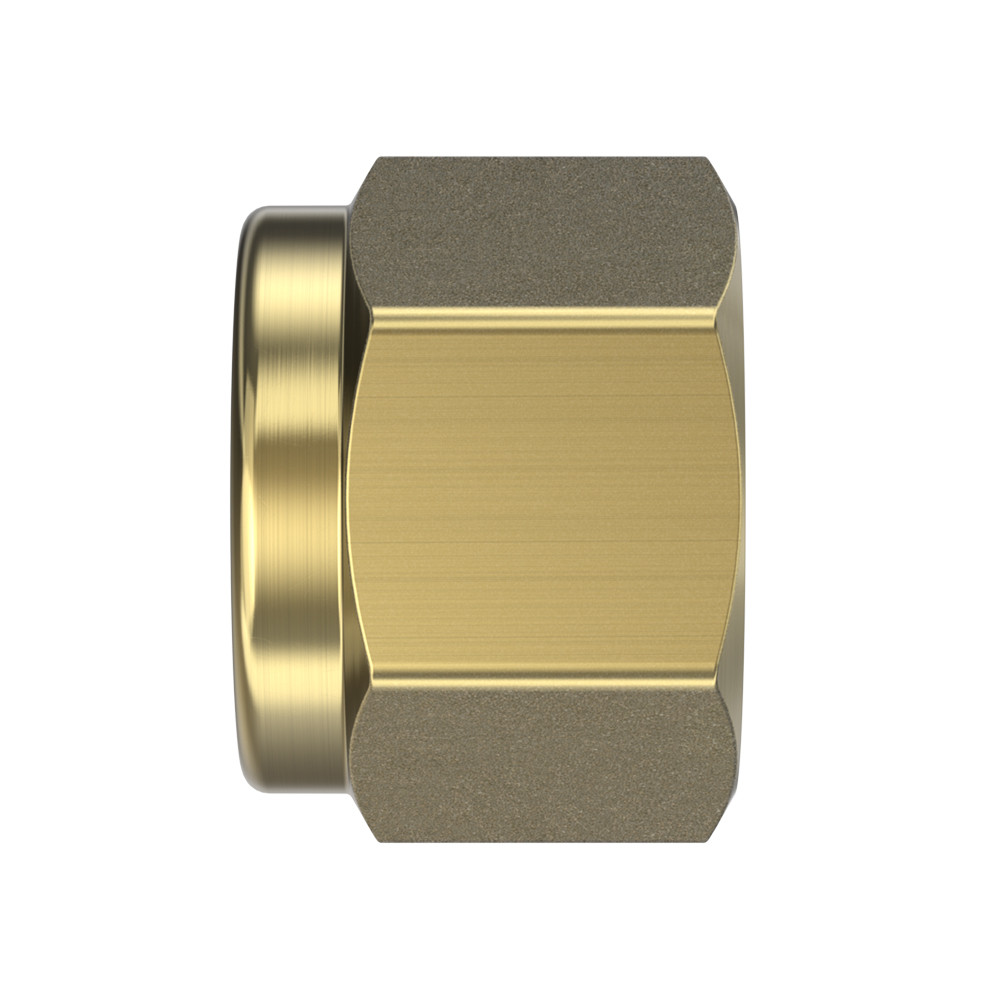

NS0318-04-B

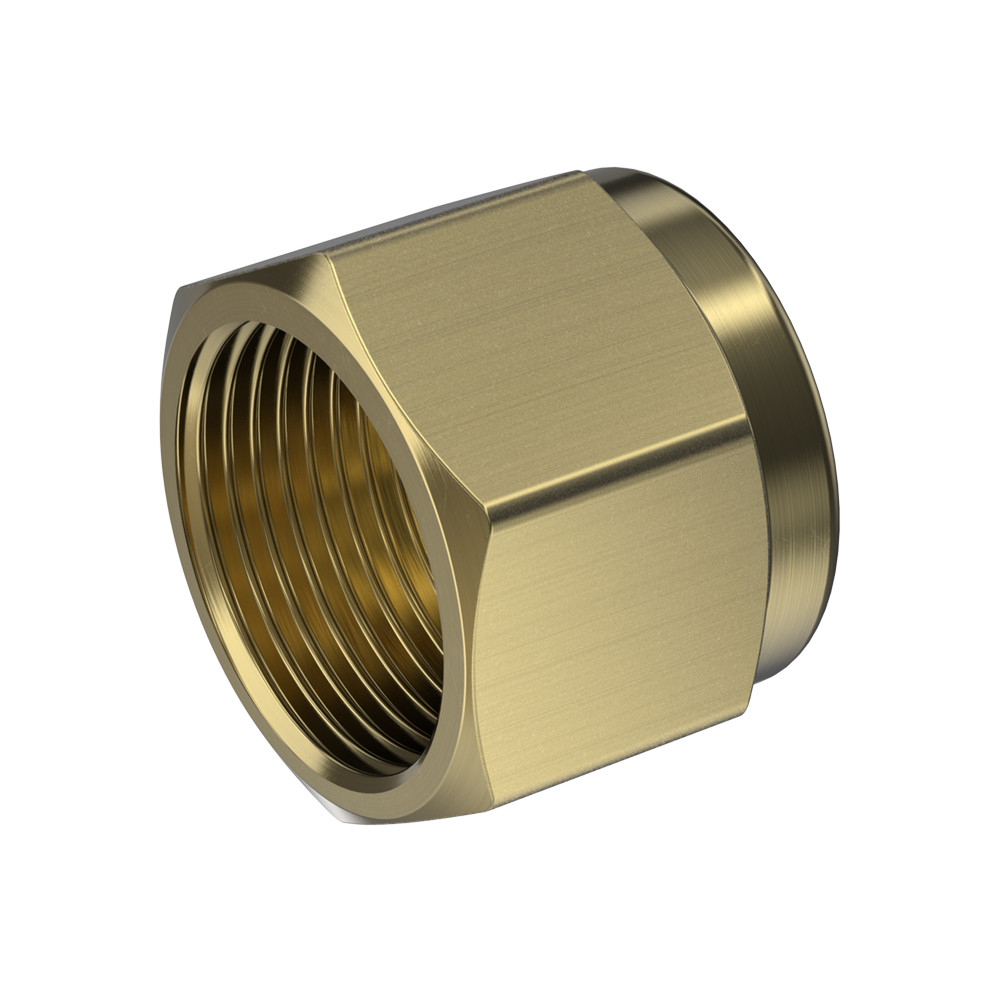

NS0318-04-B - Image 2

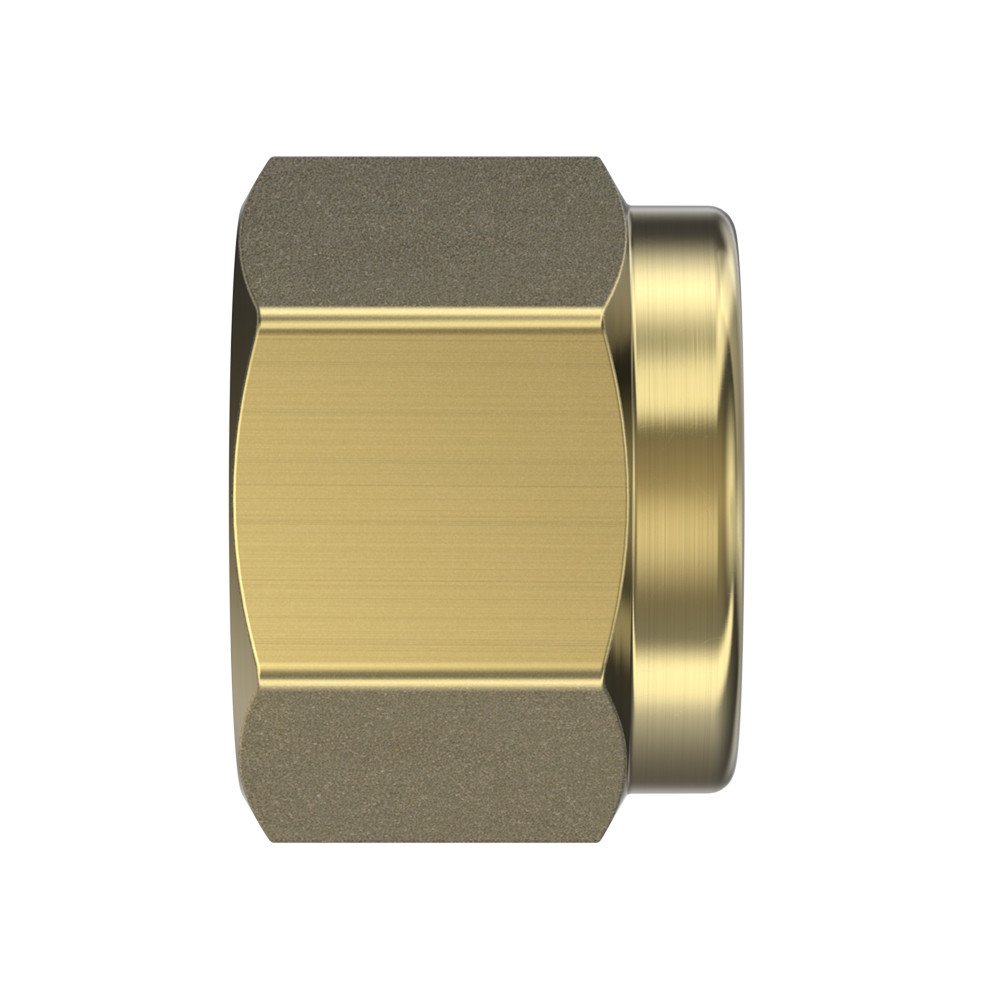

NS0318-04-B - Image 3

NS0318-04-B - Image 4

Product Code: ns0318-04-b Brand: Brennan Inc

Options

ns0318-02-ss ns0318-04-b ns0318-04-ss ns0318-06-ss ns0318-08-ss ns0318-10-ss ns0318-12-ss ns0318-16-ss ns0318-20-ss ns0318-24-ss

Description

04 IN NUT Brass

Additional information

Connection Details	Connection Type: Single Ferrule Compression Tube Nut Tube OD: 1/4" Thread Type: 7/16-20 UNF Standard: ASME B31.3 Connection Standard: ASME B31.3 Tube Fitting System: Brennan NS Series
Body & Materials	Shape: Nut Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 0.5"
Dimensions	Hex/Wrench: 0.5625" Overall Length/Centerline: 0.5" Weight: 0.0336 lb
Performance Specifications	Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Series Configuration	Single Ferrule Compression Tube Nut
Side 1 Connection Type	Single Ferrule Compression Tube Nut
Product Type	Fittings

Documents

Assembly Instructions

Pressure Rating Tables
