FS2403-32-32 - Capital Rubber & Gasket: A Singer Industrial Company

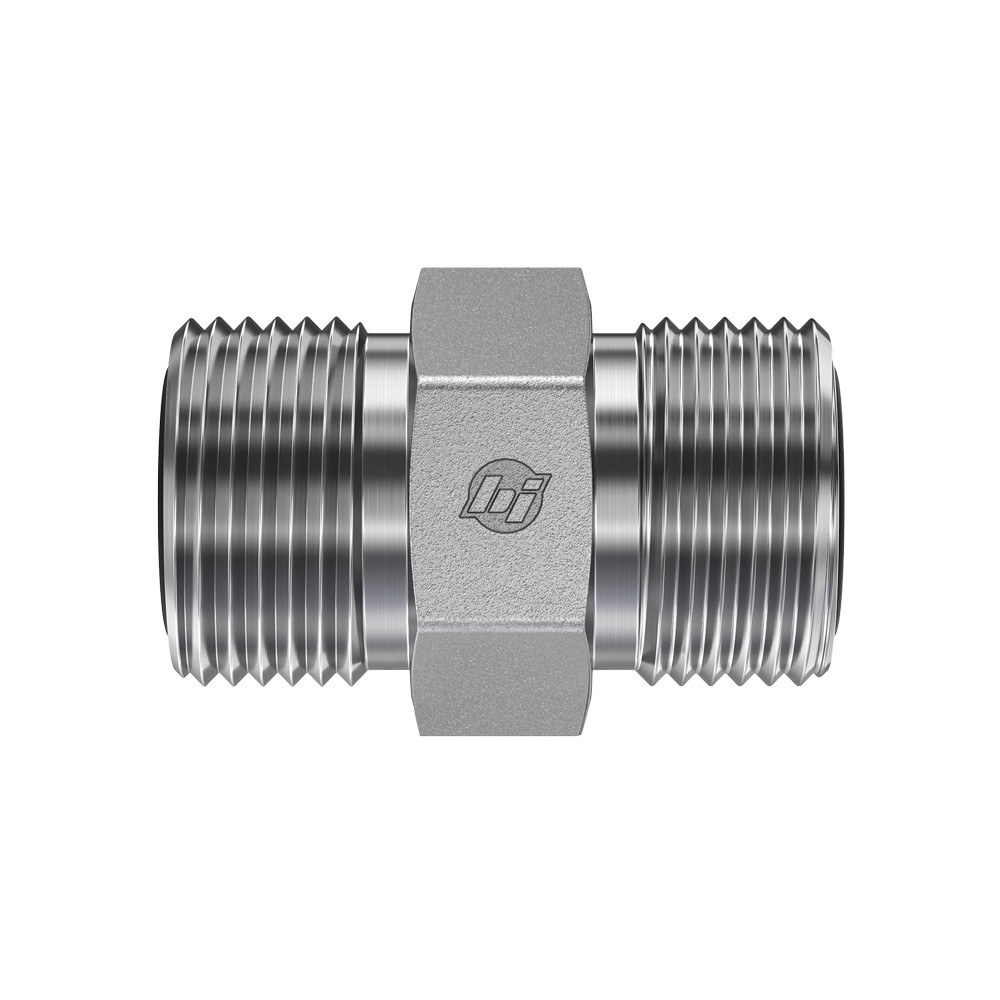

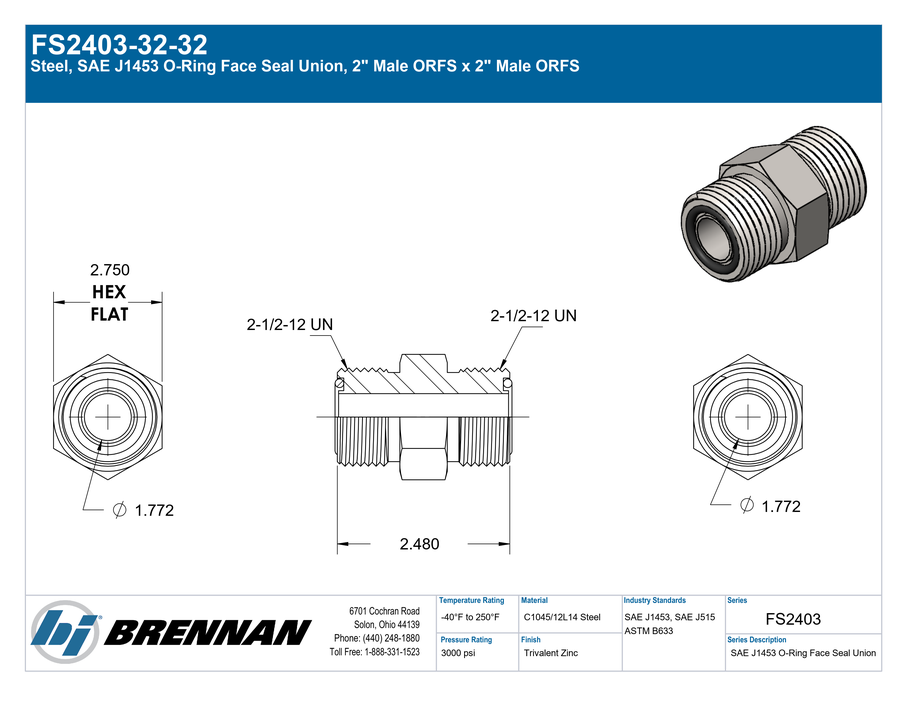

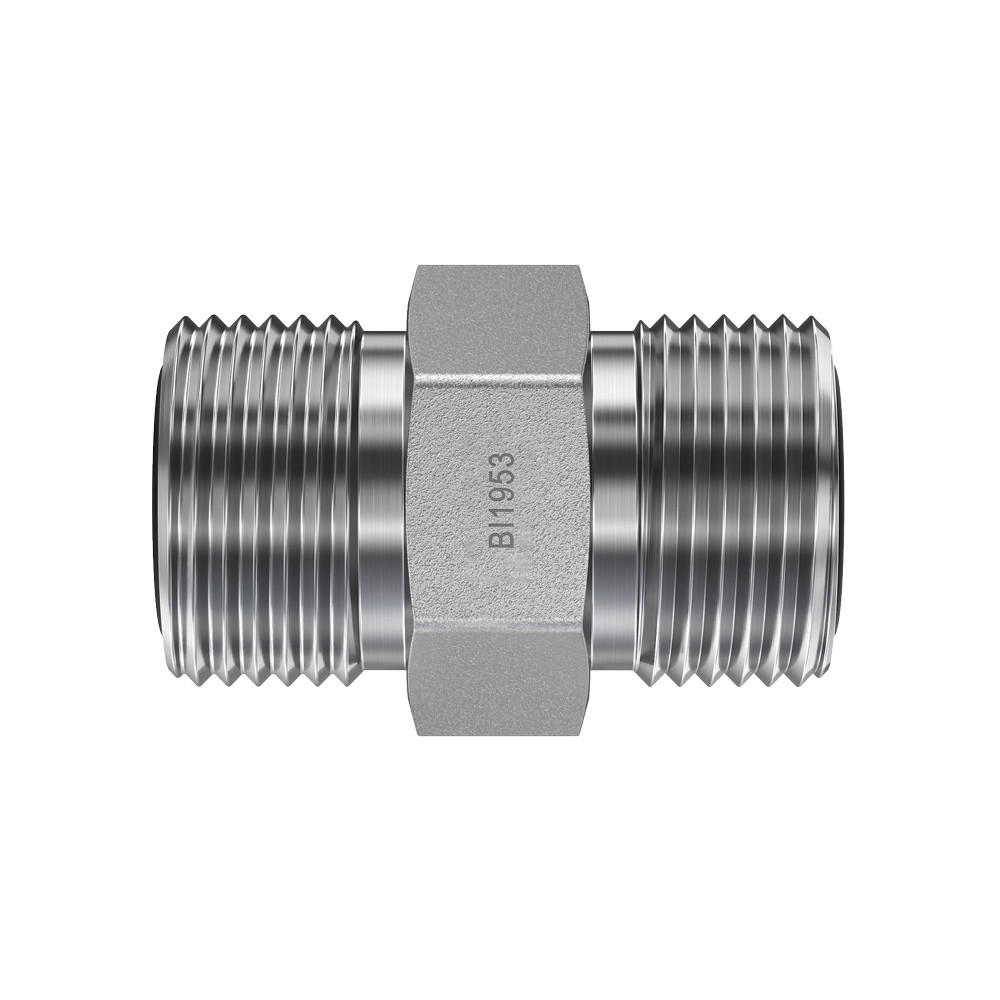

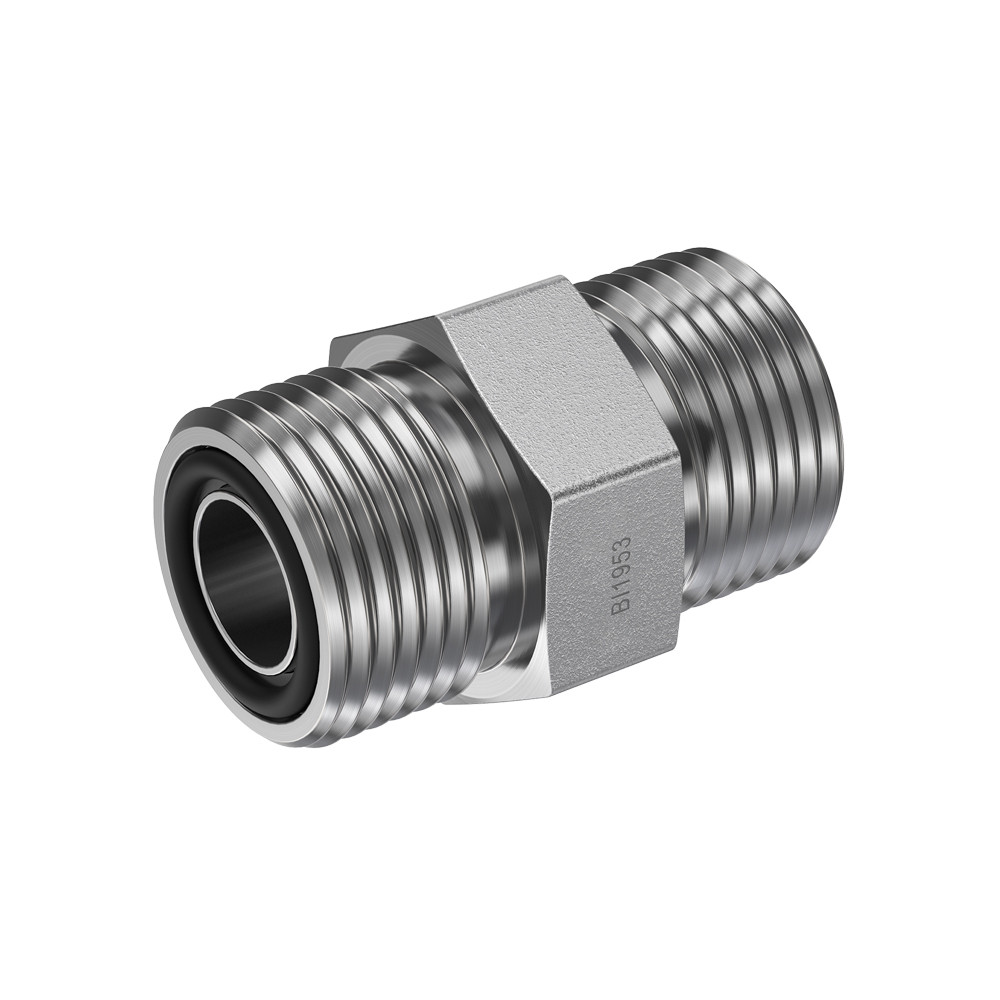

Steel, SAE J1453 O-Ring Face Seal Union, 2″ Male ORFS x 2″ Male ORFS

Connection Details	Side 1 Connection Type: Male ORFS Side 1 Tube OD: 2" Side 1 Thread Type: 2-1/2-12 UN Side 1 Standard: SAE J1453 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 1 Replacement Seal: FS4000-32 Side 2 Connection Type: Male ORFS Side 2 Tube OD: 2" Side 2 Thread Type: 2-1/2-12 UN Side 2 Standard: SAE J1453 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 2 Replacement Seal: FS4000-32
Body & Materials	Shape: Straight Shape Type: Union Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc Seal Code: NBR Seal Material: Buna-N (Nitrile)
Dimensions	Weight: 1.39 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -40°F to 250°F Temperature Notes: Temperature limited by NBR Seal Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: FF2000T3232S Parker TFD Part Number: 32 HLO-S
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male ORFS x Male ORFS
Technical Series Configuration	SAE J1453 Male ORFS Tube x Male ORFS Tube Union
Side 1 Connection Type	Male ORFS
Side 2 Connection Type	Male ORFS
Shape	Straight
Product Type	Fittings
