6801-10-08-NWO-FG - Capital Rubber & Gasket: A Singer Industrial Company

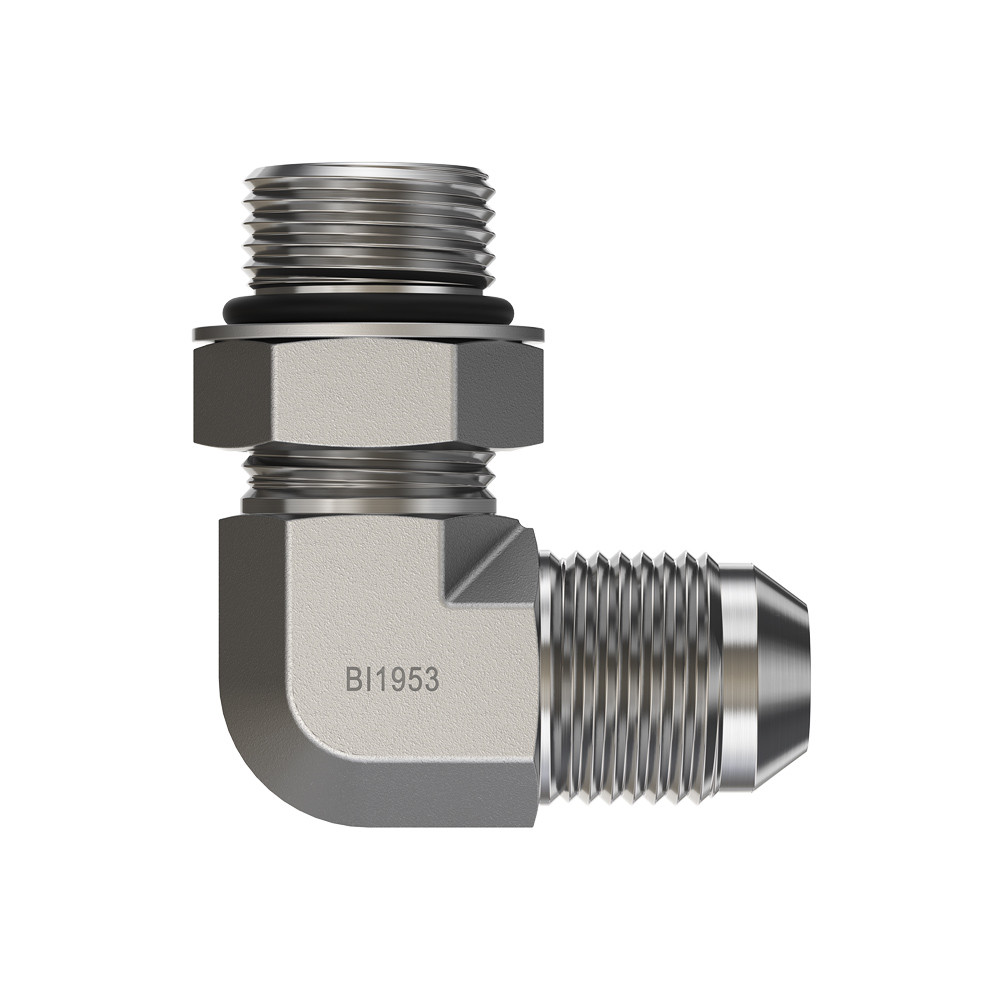

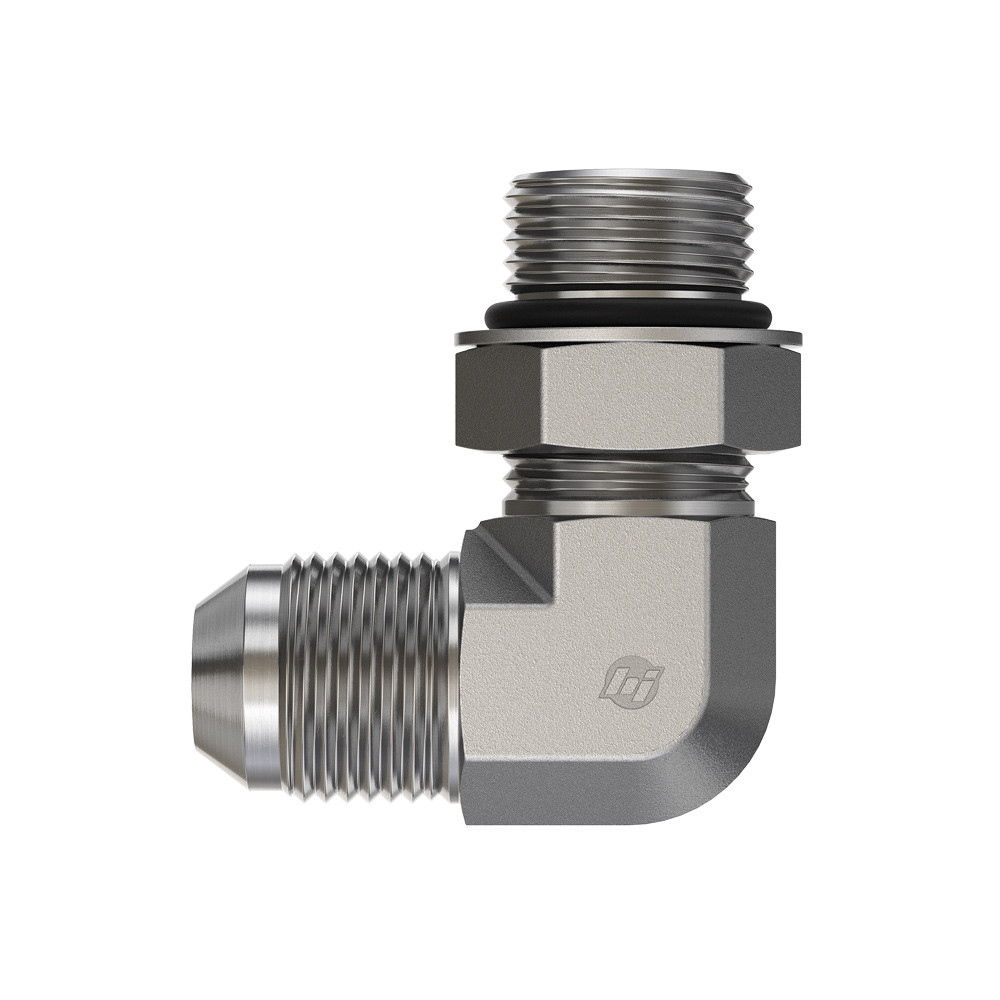

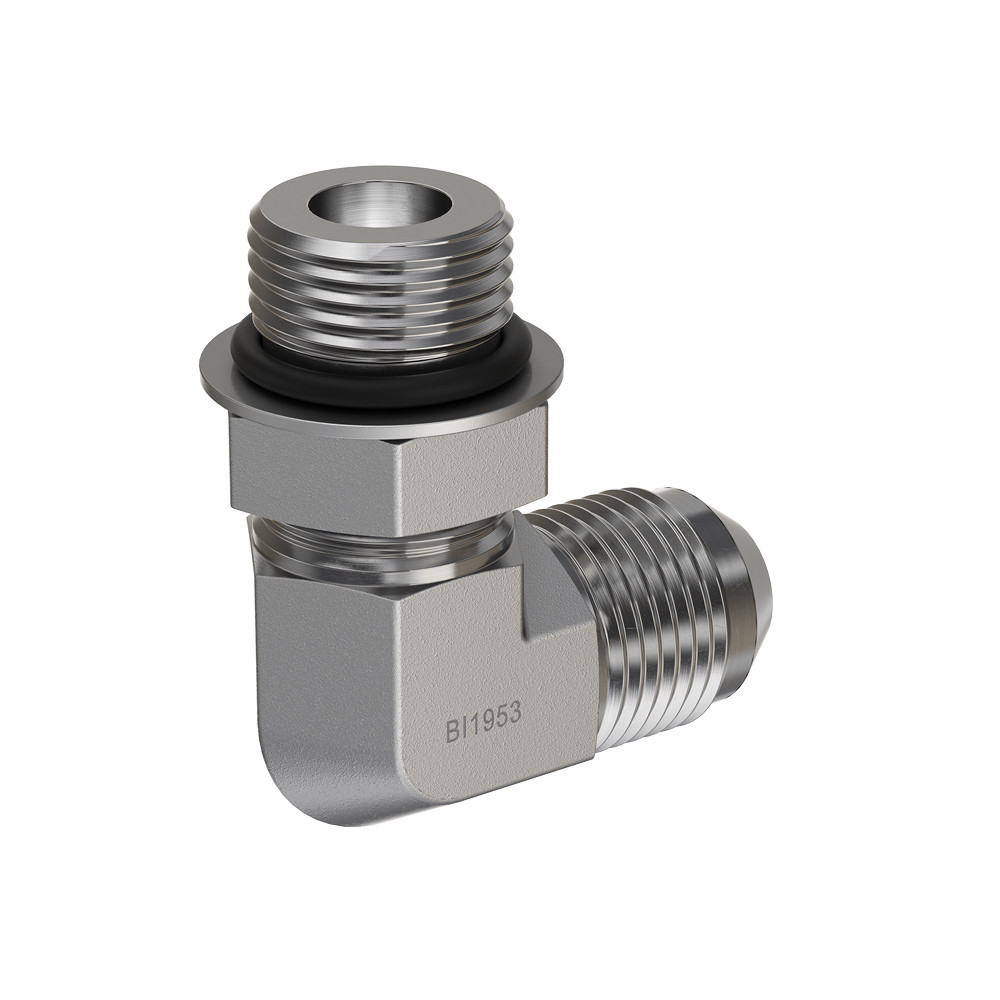

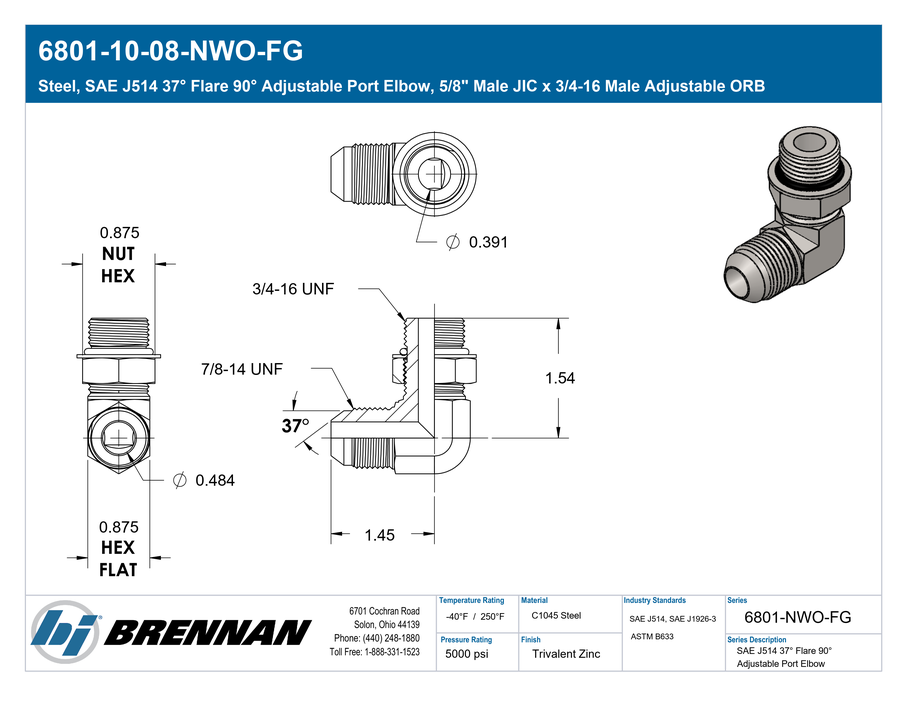

Steel, SAE J514 37° Flare 90° Adjustable Port Elbow, 5/8″ Male JIC x 3/4-16 Male Adjustable ORB

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male Adjustable ORB Side 2 Thread Type: 3/4-16 UNF Side 2 Standard: SAE J1926 Side 2 Role: Port Connection Side 2 Replacement Seal: 4000-08
Body & Materials	Shape: 90° Elbow Shape Type: Adjustable Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc Seal Code: NBR Seal Material: Buna-N (Nitrile)
Dimensions	Weight: 0.34 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -40°F to 250°F Temperature Notes: Temperature limited by NBR Seal Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2062-8-10S Parker Hose Part Number: 2503-8-10 Parker TFD Part Number: 10-8 C5OX-S SAE J514 Part Number: SAE J514 10-8 070220CN
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male Adjustable ORB
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J1926-3 Male Adjustable O-Ring Boss 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male Adjustable ORB
Shape	90° Elbow
Product Type	Fittings
