2764-06-06-O

Connection Details	Side 1 Connection Type: Male ORB Side 1 Thread Type: 9/16-18 UNF Side 1 Standard: SAE J1926 Side 1 Role: Port Connection Side 1 Replacement Seal: 4000-06 Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Male Bulkhead Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc Feature: Bulkhead Seal Code: NBR Seal Material: Buna-N (Nitrile)
Dimensions	Weight: 0.11 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -40°F to 250°F Temperature Notes: Temperature limited by NBR Seal Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 6 WF5OX-S
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%

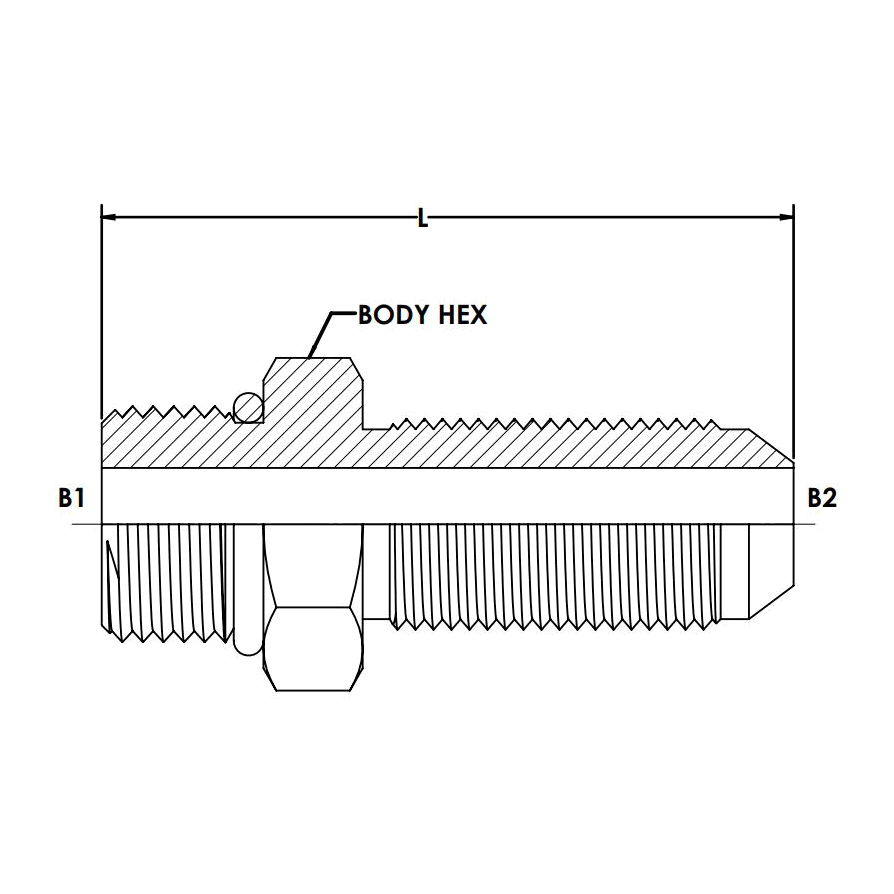

Series Configuration	Male ORB x Male JIC Bulkhead
Technical Series Configuration	SAE J1926-3 Male O-Ring Boss x SAE J514 Male JIC Tube Bulkhead
Side 1 Connection Type	Male ORB
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
