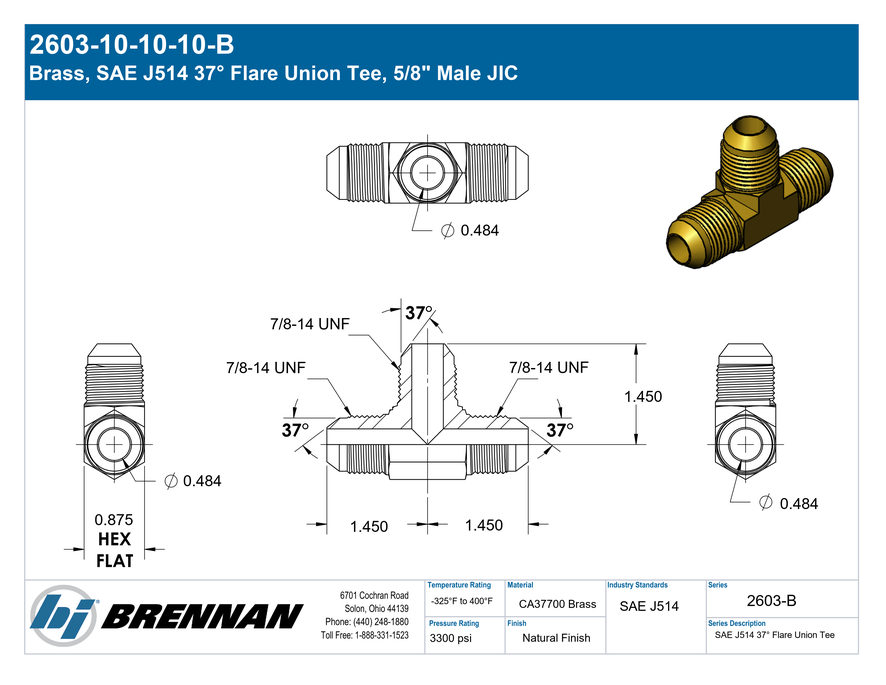

Brass, SAE J514 37° Flare Union Tee, 5/8″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 5/8" Side 2 Thread Type: 7/8-14 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 5/8" Side 3 Thread Type: 7/8-14 UNF Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Union Tee Primary Material: Brass Material Grade: CA377 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 0.875 Weight: 0.44 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	SAE J514 Part Number: SAE J514 10-10-10 070401B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube x Male JIC Tube Union Tee
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Tee
Product Type	Fittings
