D7400-S38-16-ED

Connection Details	Side 1 Connection Type: DIN Tube Side 1 Tube OD: 38mm Side 1 Thread Type: M52X2.0 Side 1 Standard: DIN 2353, ISO 8434-1 Side 1 Role: Tube Connection Side 1 DIN Pressure Series: Heavy Side 2 Connection Type: Male BSPP ED Seal Side 2 Thread Type: G – 1-11 Side 2 Standard: DIN 3852-11, ISO 1179-2 Side 2 Role: Port Connection Side 2 Replacement Seal: ED4000-16
Body & Materials	Shape: Straight Shape Type: Male Connector Primary Material: Steel Material Grade: 11SMnPb30 Plating: Zinc Nickel Seal Code: NBR Seal Material: Buna-N (Nitrile)

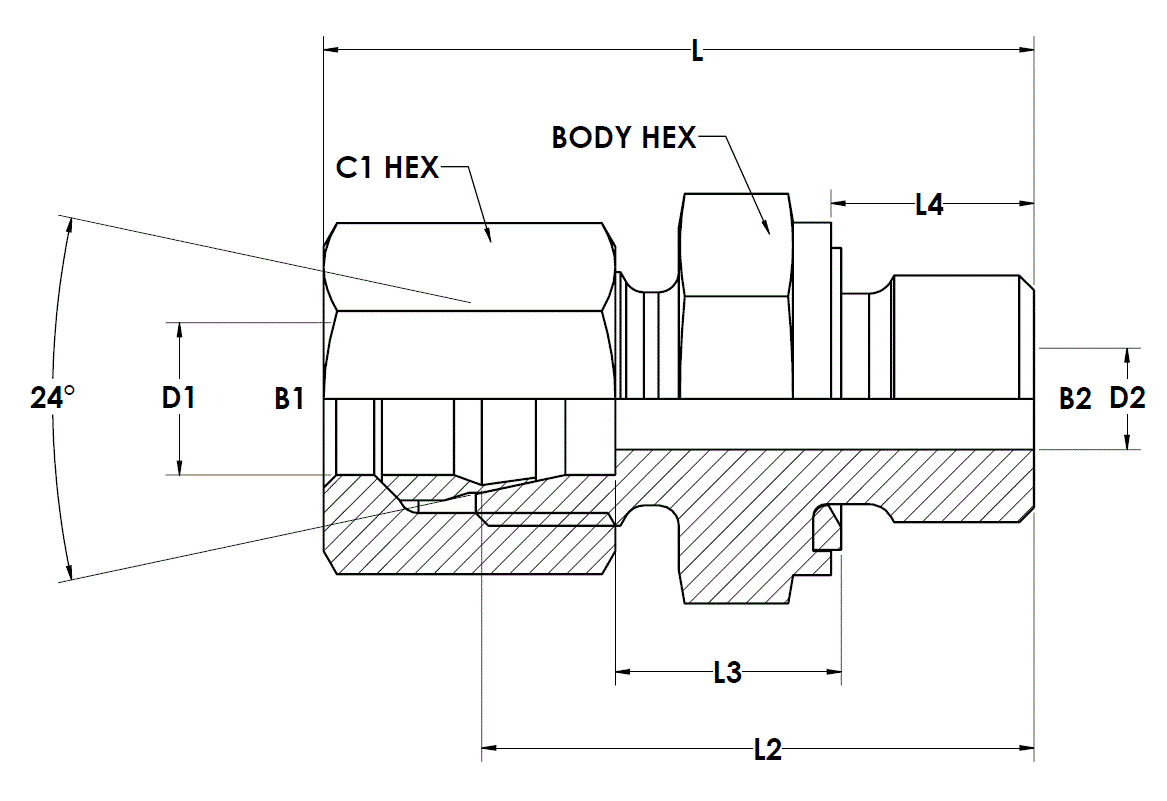

Dimensions	Hex/Wrench: 55mm Weight: 2.04 lb
Performance Specifications	Working Pressure: 5802 psi Temperature Range: -40°F to 250°F Temperature Notes: Temperature limited by NBR Seal Corrosion Resistance: 1,000 hrs no red rust per DIN ISO 9227 Burst Pressure: 23208 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: GE38SR1EDCF
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	DIN Tube x Male BSPP ED Seal
Technical Series Configuration	DIN 2353/ISO 8434-1 Flareless Tube x ISO 1179-2 Male BSPP (Type E) Port Connector
Side 1 Connection Type	DIN Tube
Side 2 Connection Type	Male BSPP ED Seal
Shape	Straight
Product Type	Fittings
