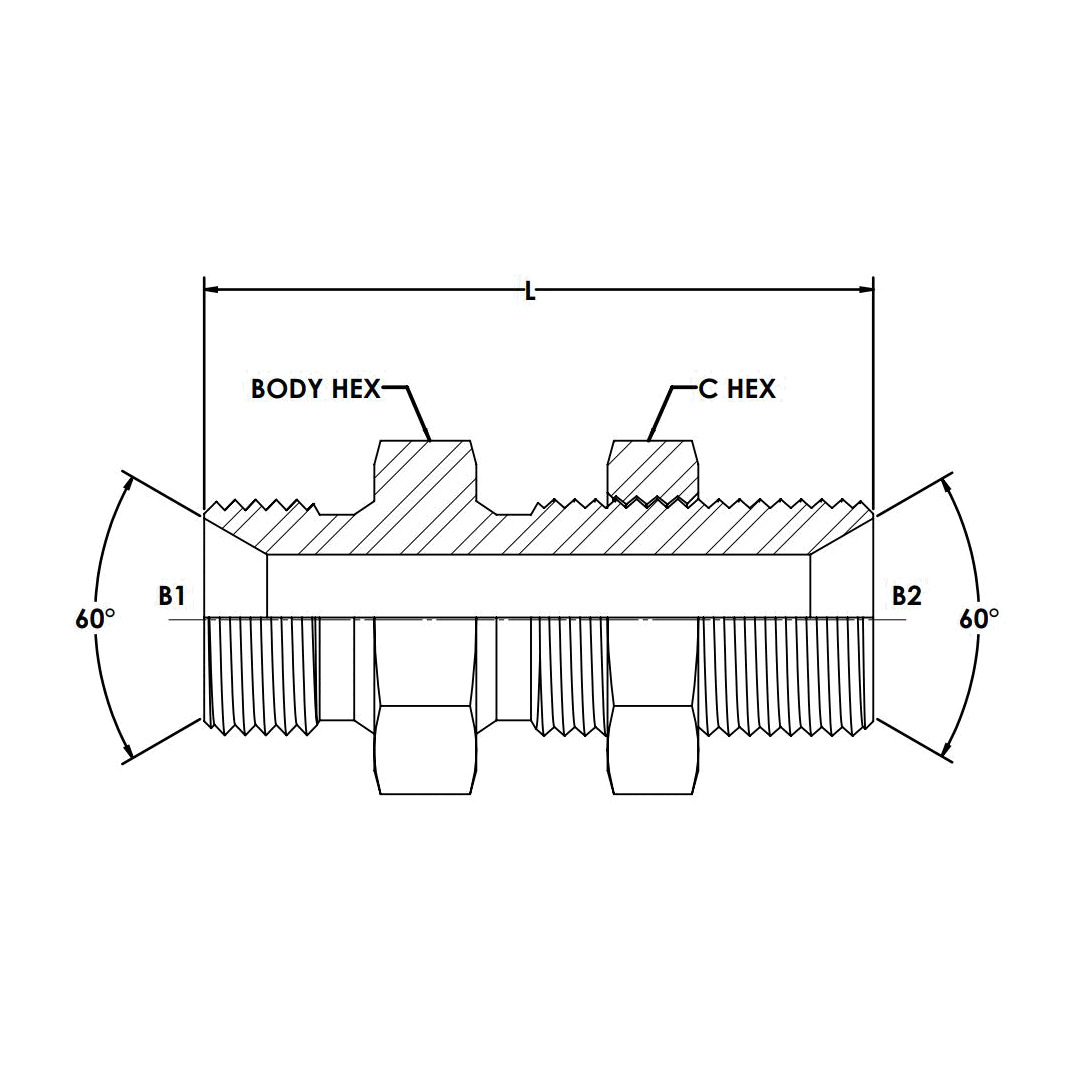

9722-20-20-LN

Connection Details	Side 1 Connection Type: Male BSPP 60° Line Only Side 1 Thread Type: G – 1-1/4-11 Side 1 Standard: ISO 8434-6 Side 1 Role: Line Connection Side 2 Connection Type: Male BSPP 60° Line Only Side 2 Thread Type: G – 1-1/4-11 Side 2 Standard: ISO 8434-6 Side 2 Role: Line Connection
Body & Materials	Shape: Straight Shape Type: Male Bulkhead Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc Feature: Bulkhead
Dimensions	Hex/Wrench: 1.969 Weight: 1.09 lb
Performance Specifications	Working Pressure: 1500 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 6000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 20WMK4WL4NMS
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male BSPP x Male BSPP Bulkhead, With Lock Nut
Technical Series Configuration	ISO 8434-6 Male BSPP Line x Male BSPP Bulkhead Line With Lock Nut
Side 1 Connection Type	Male BSPP 60° Line Only
Side 2 Connection Type	Male BSPP 60° Line Only
Shape	Straight
Product Type	Fittings
