Cap and Plug / 2408-32-SS

2408-32-SS

2408-32-SS
2408-32-SS - Image 2
2408-32-SS - Image 3
2408-32-SS - Image 4

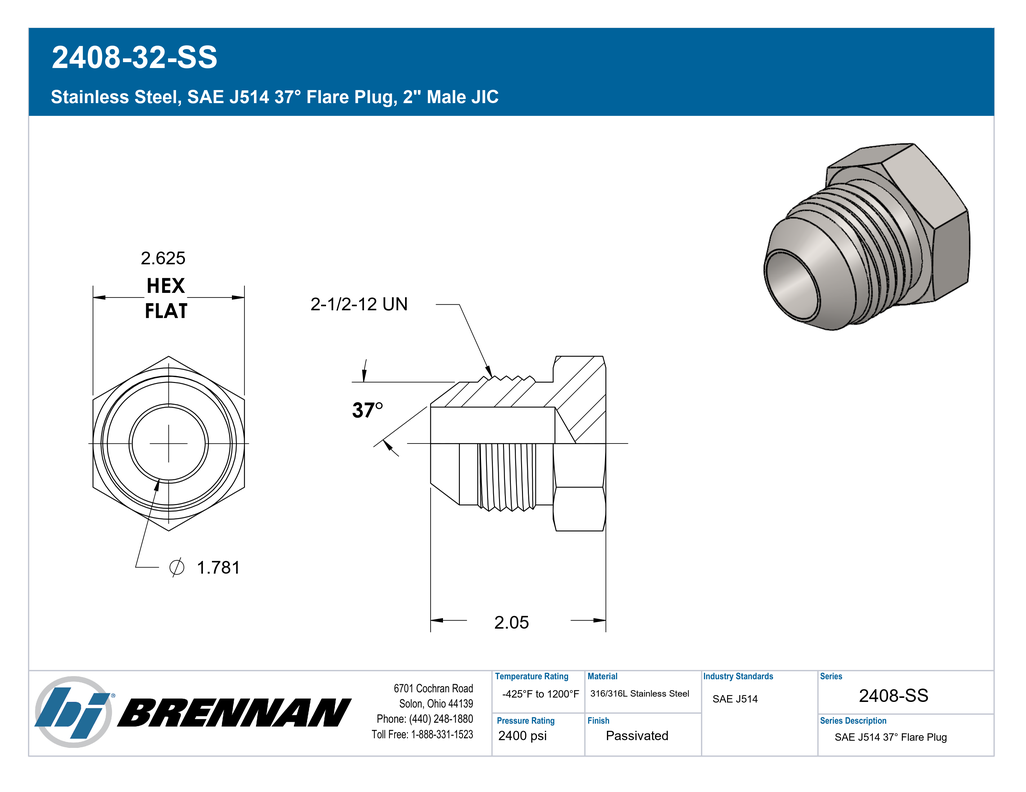

2408-32-SS - Image 5
Product Code: 2408-32-ss Brand:
Options
- +

Description

Stainless Steel, SAE J514 37° Flare Plug, 2″ Male JIC

Additional information

Connection Details

Connection Type: Male JIC
Tube OD: 2"
Thread Type: 2-1/2-12 UN
Standard: SAE J514 – Class 2A Thread
Connection Standard: SAE J514 – Class 2A Thread
Role: Line/Tube Connection
Connection Role: Line/Tube Connection
Body & Materials

Shape: Plug
Shape Type: Plug
Primary Material: Stainless Steel
Material Grade: 316/316L
Dimensions

Weight: 2.00 lb
Performance Specifications

Working Pressure: 2400 psi
Temperature Range: -425°F to 1200°F
Burst Pressure: 9600 psi
Burst Ratio: 4:1
Cross References

Aeroquip Part Number: 259-900599-32
Parker TFD Part Number: 32 PNTX-SS
SAE J514 Part Number: SAE J514 32 070109S
Regulatory & Compliance

RoHS Compliance: Compliant
REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration

Male JIC Plug
Technical Series Configuration

SAE J514 Male JIC Tube Plug
Side 1 Connection Type

Male JIC
Shape

Cap/Plug
Product Type

Fittings
