2408-20-B - Capital Rubber & Gasket: A Singer Industrial Company

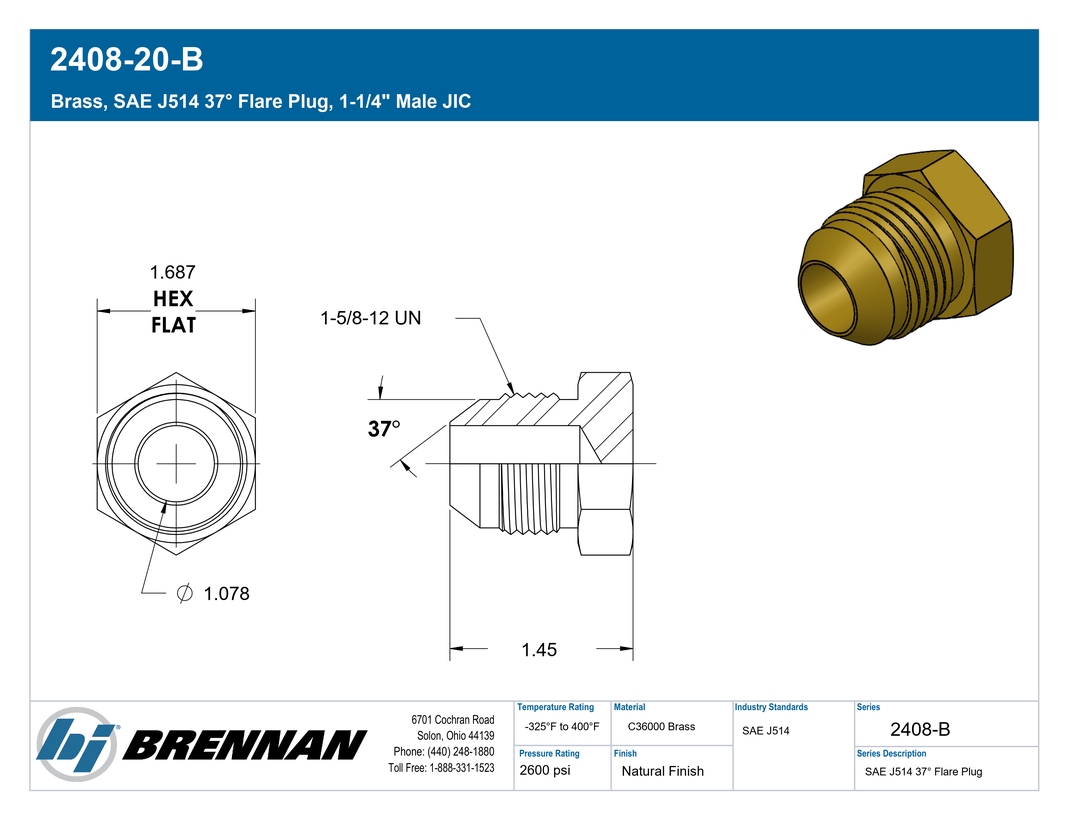

Brass, SAE J514 37° Flare Plug, 1-1/4″ Male JIC

Connection Details	Connection Type: Male JIC Tube OD: 1-1/4" Thread Type: 1-5/8-12 UN Standard: SAE J514 – Class 2A Thread Connection Standard: SAE J514 – Class 2A Thread Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Plug Shape Type: Plug Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.61 lb
Performance Specifications	Working Pressure: 2600 psi Temperature Range: -325°F to 400°F Burst Pressure: 10400 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 20 PNTX-B SAE J514 Part Number: SAE J514 20 070109B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC Plug
Technical Series Configuration	SAE J514 Male JIC Tube Plug
Side 1 Connection Type	Male JIC
Shape	Cap/Plug
Product Type	Fittings
