2704-04-04-04-FG

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/4" Side 2 Thread Type: 7/16-20 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 1/4" Side 3 Thread Type: 7/16-20 UNF Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection

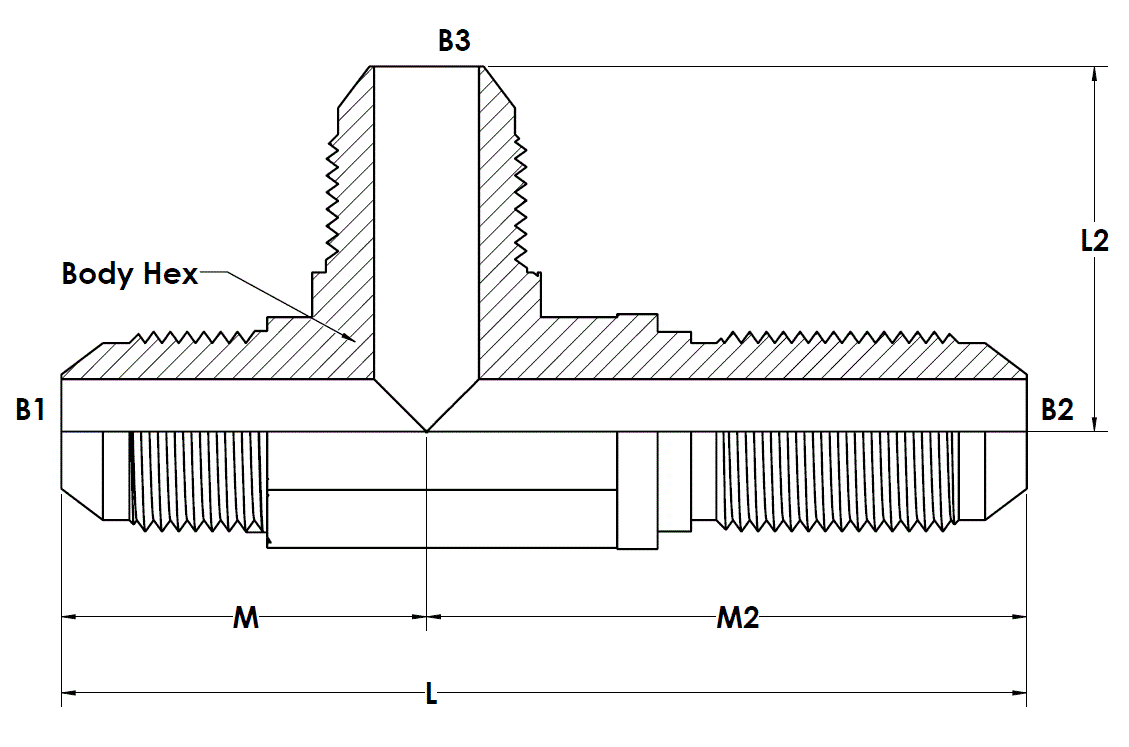

Body & Materials	Shape: Tee Shape Type: Bulkhead Run Tee Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc Feature: Bulkhead
Dimensions	Weight: 0.10 lb
Performance Specifications	Working Pressure: 7500 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 30000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: FF1065-0404S Parker Hose Part Number: 533T-4-4N Parker TFD Part Number: 4 WJJTX-S SAE J514 Part Number: SAE J514 4-4-4 070958C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC Bulkhead x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube Bulkhead x Male JIC Tube Run Tee
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Tee
Product Type	Fittings
