2603-08-08-08-SS - Capital Rubber & Gasket: A Singer Industrial Company

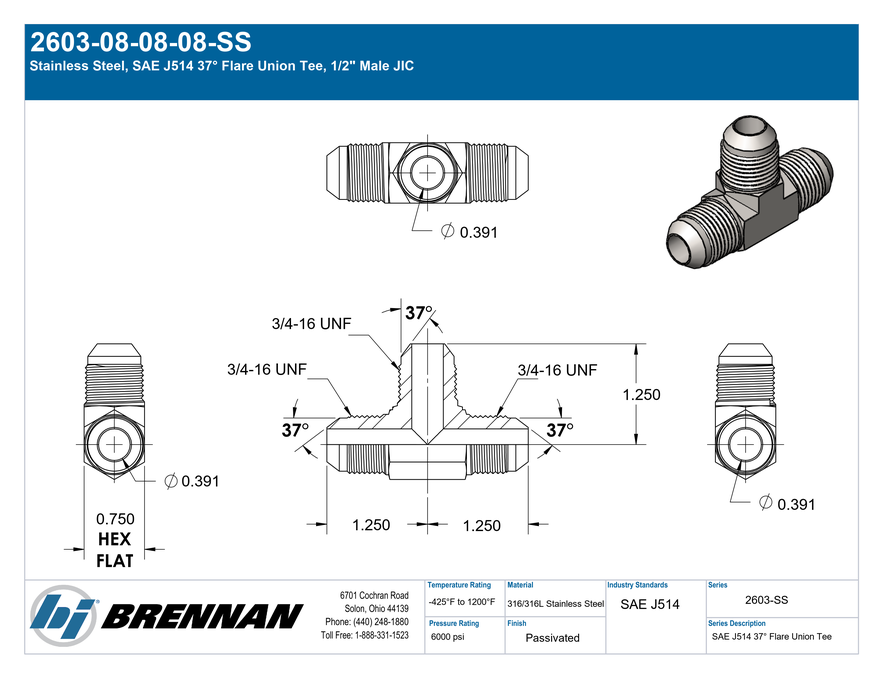

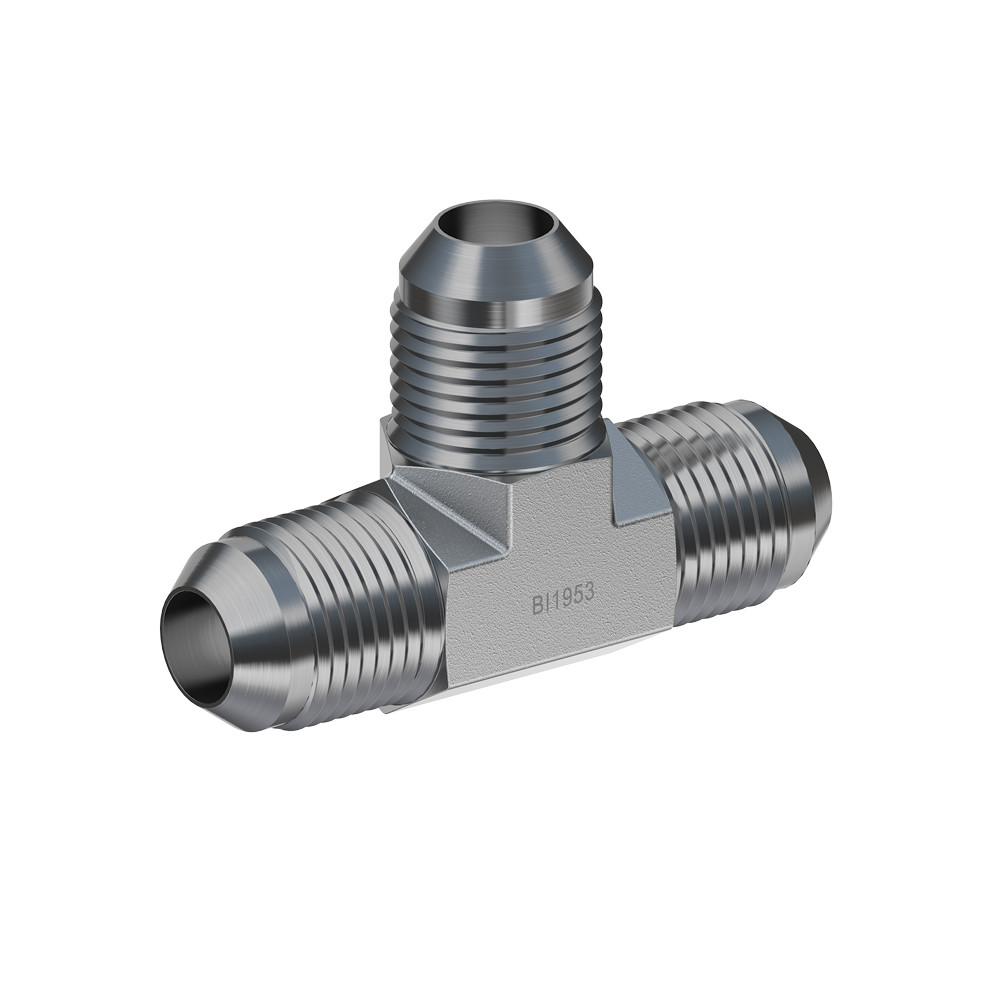

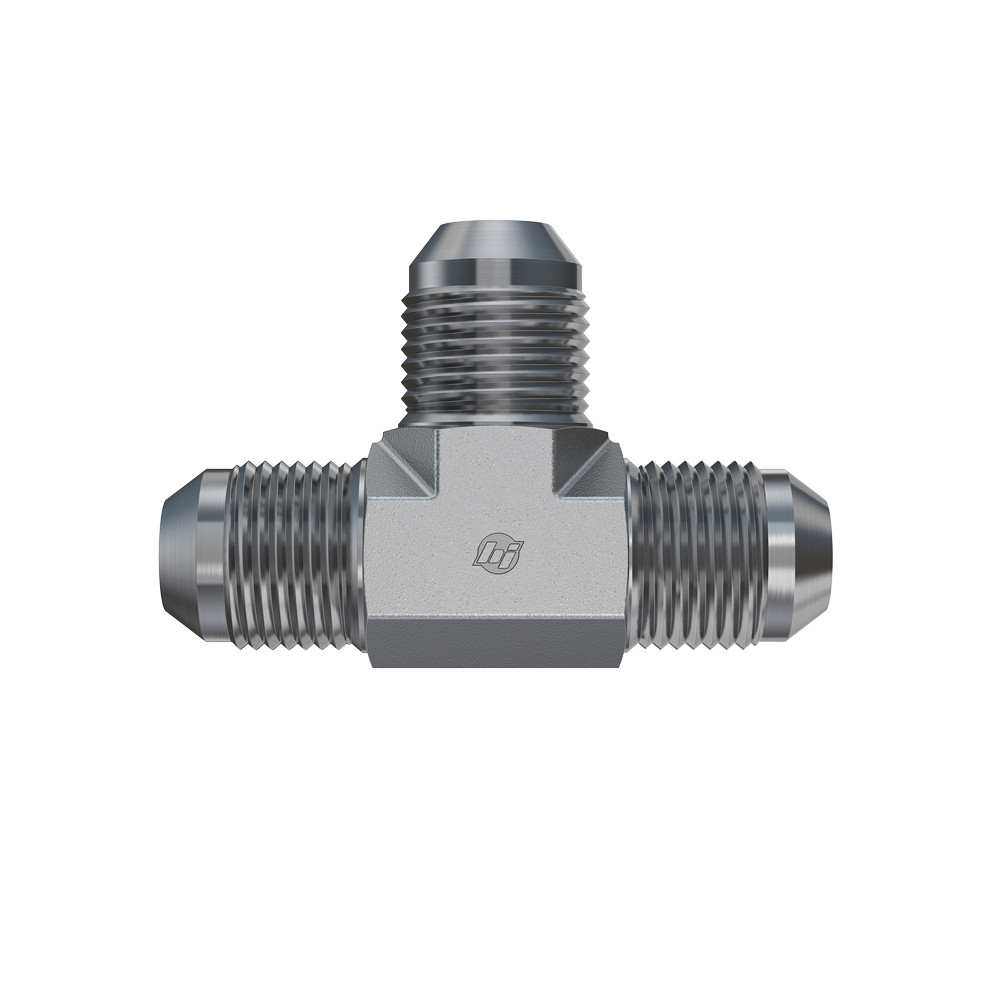

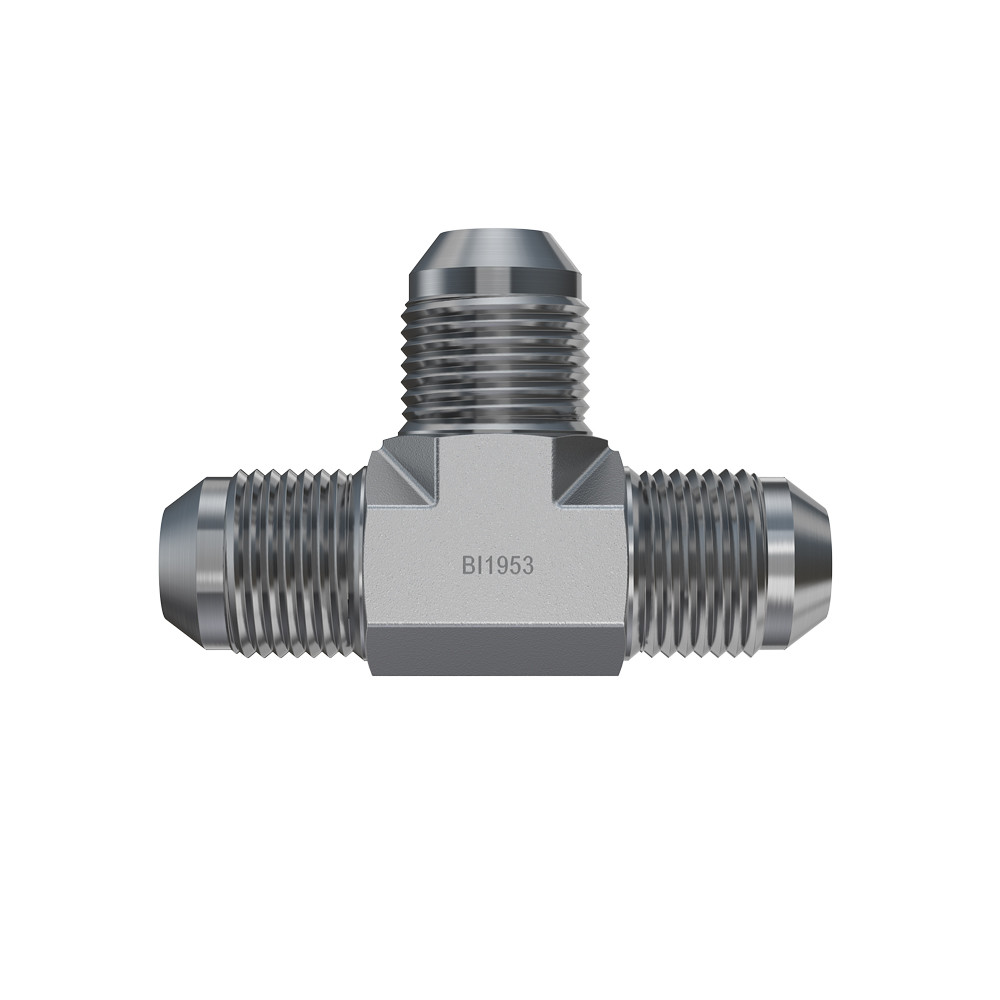

Stainless Steel, SAE J514 37° Flare Union Tee, 1/2″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/2" Side 1 Thread Type: 3/4-16 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/2" Side 2 Thread Type: 3/4-16 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 1/2" Side 3 Thread Type: 3/4-16 UNF Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Union Tee Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 0.750 Weight: 0.27 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2033-8-8 Parker Hose Part Number: 033T-8-8-SS Parker TFD Part Number: 8 JTX-SS SAE J514 Part Number: SAE J514 8-8-8 070401S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x Male JIC Tube x Male JIC Tube Union Tee
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Tee
Product Type	Fittings
