2408-16-SS - Capital Rubber & Gasket: A Singer Industrial Company

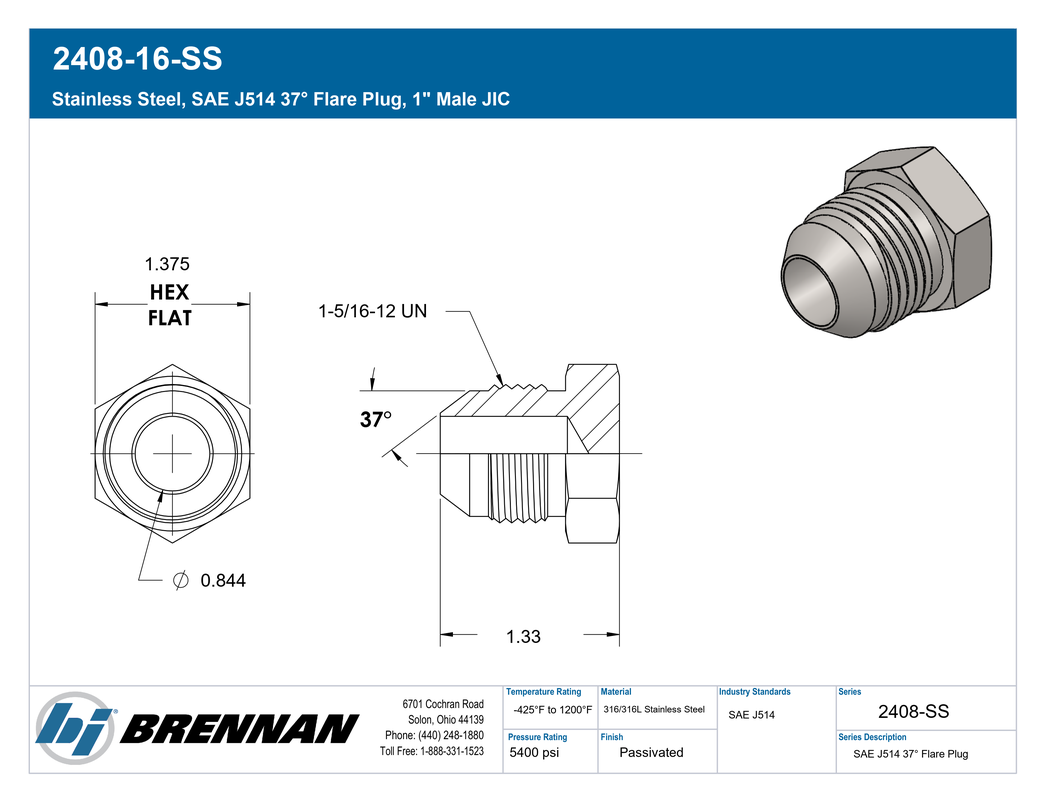

Stainless Steel, SAE J514 37° Flare Plug, 1″ Male JIC

Connection Details	Connection Type: Male JIC Tube OD: 1" Thread Type: 1-5/16-12 UN Standard: SAE J514 – Class 2A Thread Connection Standard: SAE J514 – Class 2A Thread Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Plug Shape Type: Plug Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.35 lb
Performance Specifications	Working Pressure: 5400 psi Temperature Range: -425°F to 1200°F Burst Pressure: 21600 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-900599-16 Parker Hose Part Number: 03CP-16-SS Parker TFD Part Number: 16 PNTX-SS SAE J514 Part Number: SAE J514 16 070109S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC Plug
Technical Series Configuration	SAE J514 Male JIC Tube Plug
Side 1 Connection Type	Male JIC
Shape	Cap/Plug
Product Type	Fittings
