6901-08-08-NWO-SS - Capital Rubber & Gasket: A Singer Industrial Company

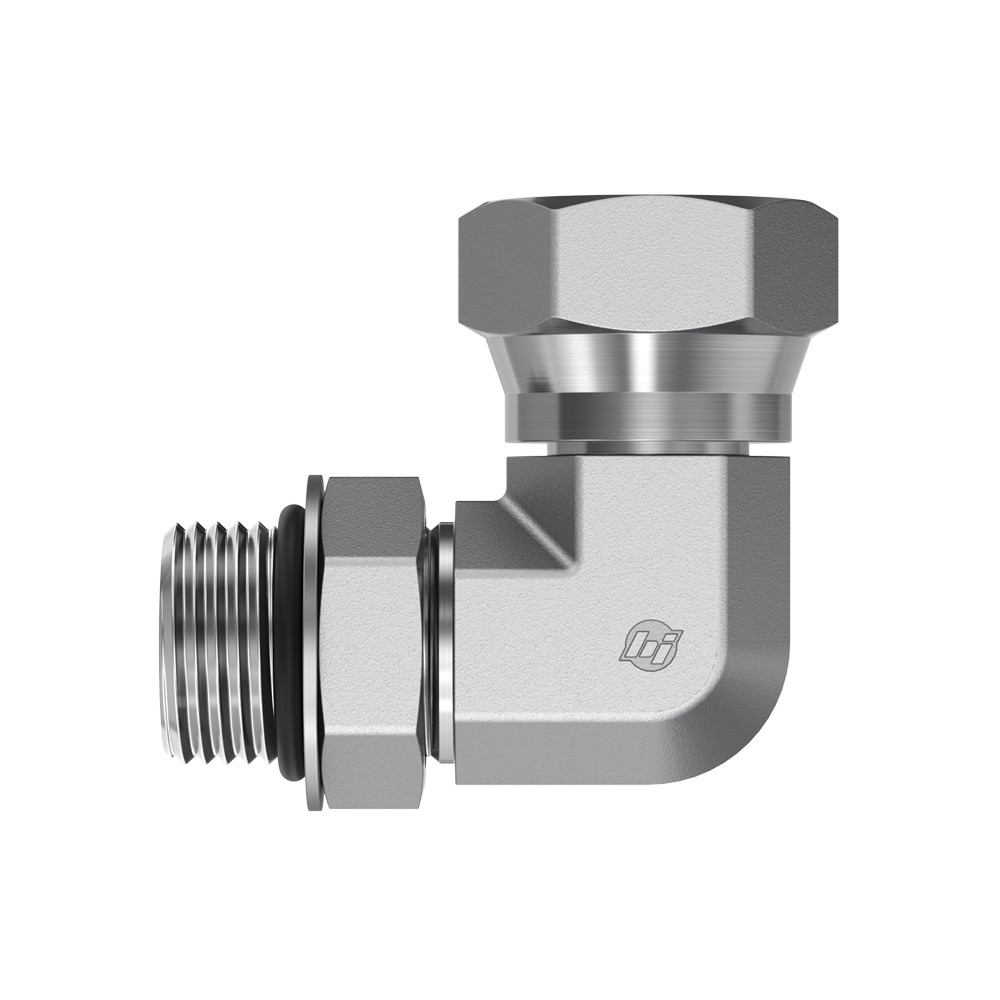

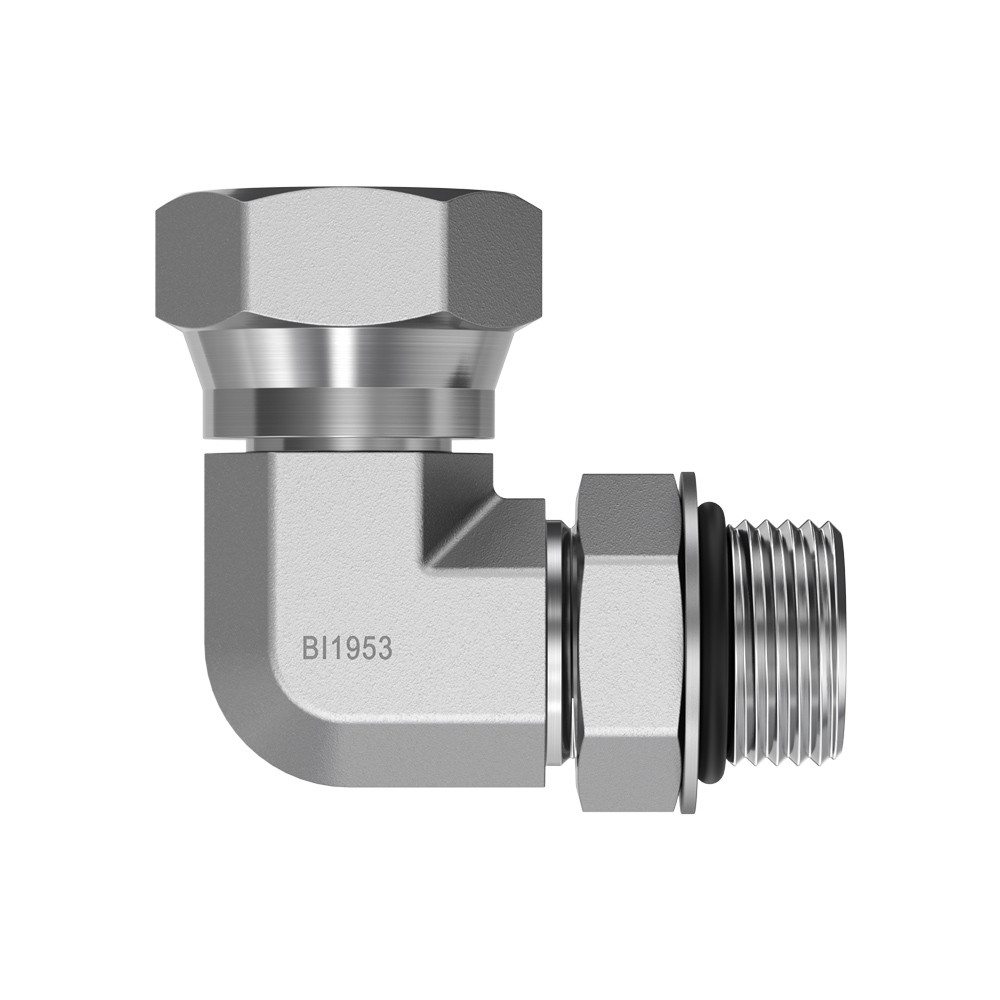

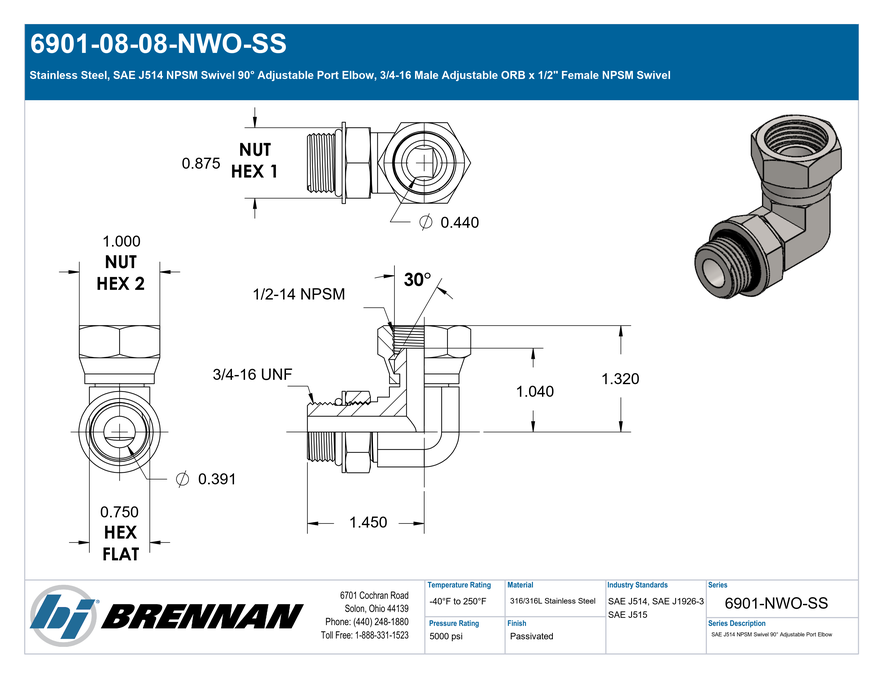

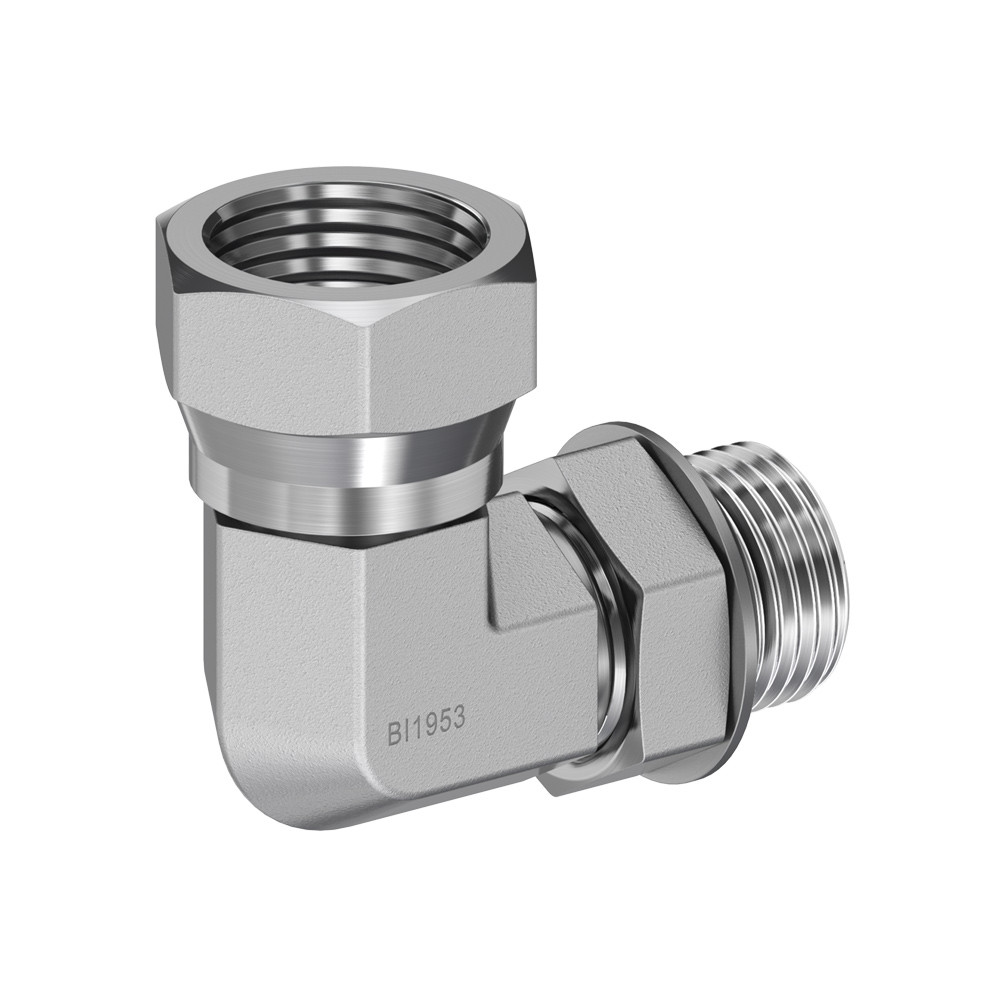

Stainless Steel, SAE J514 NPSM Swivel 90° Adjustable Port Elbow, 3/4-16 Male Adjustable ORB x 1/2″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Male Adjustable ORB Side 1 Thread Type: 3/4-16 UNF Side 1 Standard: SAE J1926 Side 1 Role: Port Connection Side 1 Replacement Seal: 4000-08 Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Adjustable Swivel Elbow Primary Material: Stainless Steel Material Grade: 316/316L Seal Code: NBR Seal Material: Buna-N (Nitrile)
Dimensions	Weight: 0.30 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -40°F to 250°F Temperature Notes: Temperature limited by NBR Seal Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2068-8-8 Parker TFD Part Number: 2507-8-8-SS SAE J514 Part Number: SAE J514 8-8 140257SN
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male Adjustable ORB x Female Pipe Swivel
Technical Series Configuration	SAE J1926-3 Male Adjustable O-Ring Boss x SAE J476 Female NPSM Swivel 90° Elbow
Side 1 Connection Type	Male Adjustable ORB
Side 2 Connection Type	Female NPSM Swivel
Shape	90° Elbow
Product Type	Fittings
