2405-04-04 - Capital Rubber & Gasket: A Singer Industrial Company

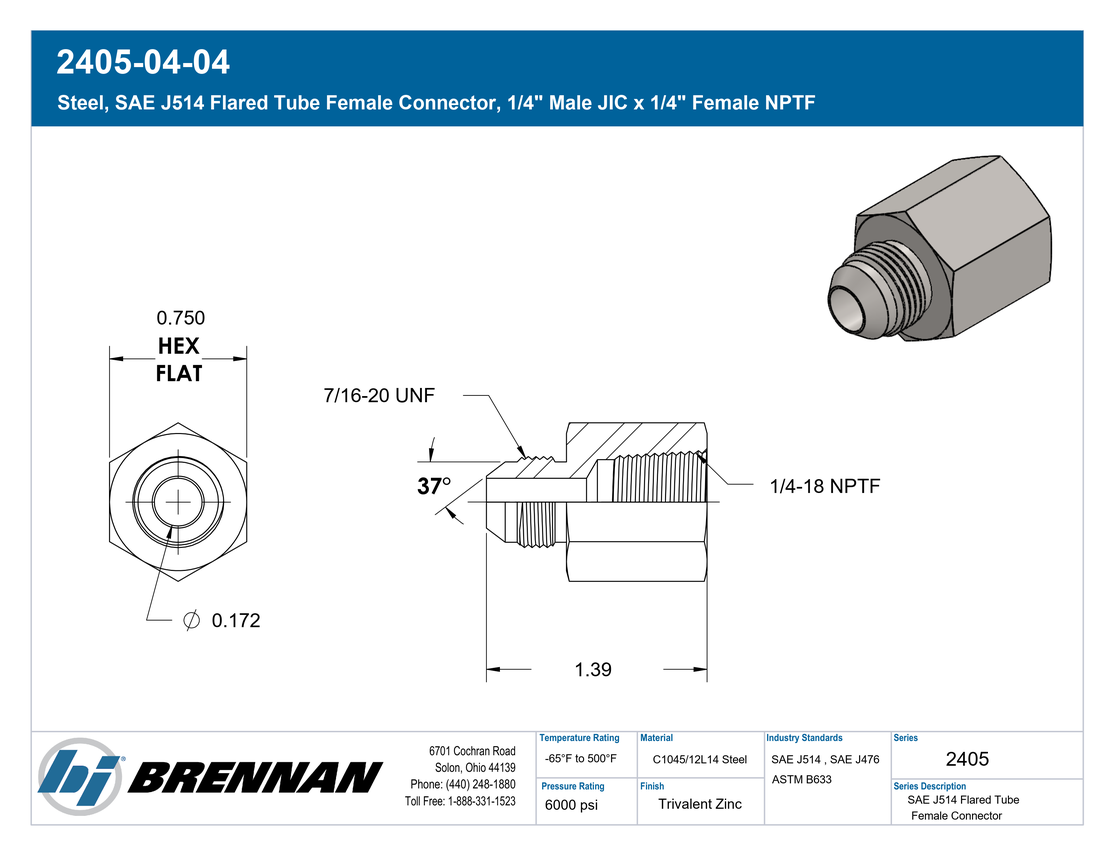

Steel, SAE J514 37° Flare Female Connector, 1/4″ Male JIC x 1/4″ Female NPTF

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 0.750 Weight: 0.09 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2022-4-4S Parker Hose Part Number: 0203-4-4 Parker TFD Part Number: 4-4 GTX-S SAE J514 Part Number: SAE J514 4-4 070103C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Female Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Female NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Female NPTF
Shape	Straight
Product Type	Fittings
