Push-on Hose Fittings / 2115-08-06-B

2115-08-06-B

2115-08-06-B
2115-08-06-B - Image 2
Product Code: 2115-08-06-b Brand:
Options
2115-04-03-b 2115-04-04-b 2115-04-05-b 2115-05-05-b 2115-05-06-b 2115-06-05-b 2115-06-06-b 2115-08-06-b 2115-08-08-b 2115-10-10-b
- +

Description

08PL-06MIFS Straight Brass

Additional information

Body & Materials

Shape: Straight
Shape Type: Male Swivel Connector
Primary Material: Brass
Material Grade: C36000
Surface Treatment: Natural Finish
Seal Code: LDPE
Dimensions

Weight: 0.08 lb
Performance Specifications

Working Pressure: 150 psi
Temperature Range: -50°F to 185°F
Temperature Notes: Temperature limited by LDPE Washer
Cross References

Aeroquip Part Number: 4740-6-8B
Parker Hose Part Number: 32882-6-8B
Parker TFD Part Number: 32882-6-8B
Regulatory & Compliance

RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy)
REACH Compliance: May contain Lead ≥0.1%
Series Configuration

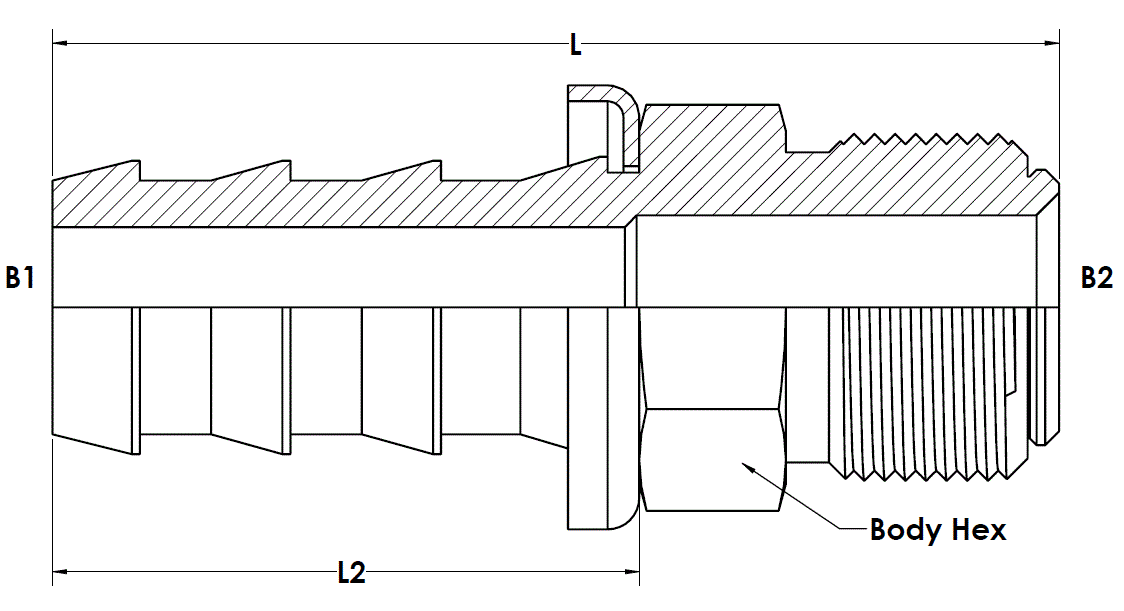

Push-Lok Hose Barb x Male Inverted Flare Swivel
Technical Series Configuration

Push-Lok Hose Barb x SAE J512 Male Inverted Flare Swivel Connector
Shape

Straight
Product Type

Fittings
