100HMSS1/4 - Capital Rubber & Gasket: A Singer Industrial Company

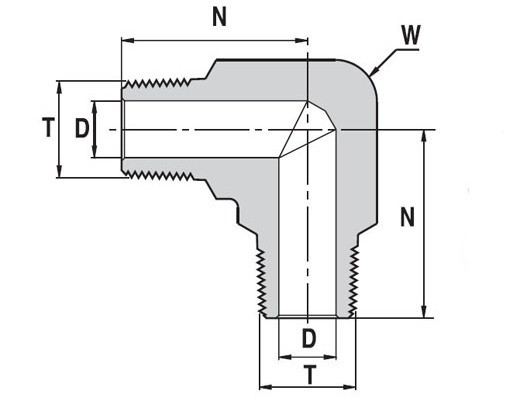

Stainless Steel 316 Pipe Fitting, Male Elbow, NPT 1/4″

Connection Details	Side 1 Connection Type: Male NPT Side 1 Pipe Size: 1/4" Side 1 Thread Type: 1/4-18 NPT Side 1 Standard: ASME/ANSI B1.20.1 Side 1 Role: Pipe Connection Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Male Elbow Primary Material: Stainless Steel Material Grade: 316L Surface Treatment: Passivated Length: 1.05"
Dimensions	Hex/Wrench: 0.625" Overall Length/Centerline: 1.05" Weight: 0.121 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Gal #: 3000969 Parker IPD ALOK Part Number: 4-4 ME-SS Swagelok Part Number: SS-4-ME
Series Configuration	Male NPT x Male NPT
Side 1 Connection Type	Male NPT
Side 2 Connection Type	Male NPT
Product Type	Fittings
