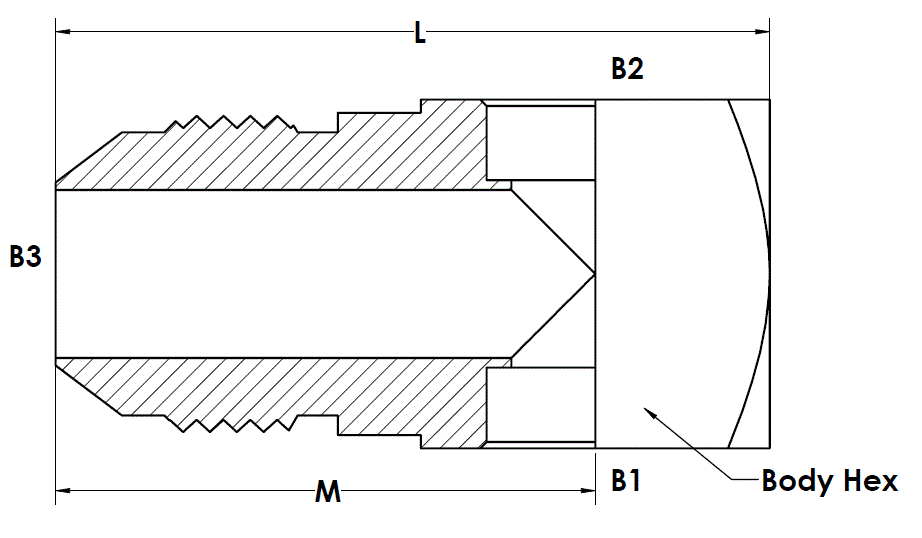

0600-20-20-20

Connection Details	Side 1 Connection Type: Bore Side 1 Tube OD: 1-1/4" Side 1 Standard: Not Defined Side 1 Role: Tube Connection Side 2 Connection Type: Bore Side 2 Tube OD: 1-1/4" Side 2 Standard: Not Defined Side 2 Role: Tube Connection Side 3 Connection Type: Male JIC Side 3 Tube OD: 1-1/4" Side 3 Thread Type: 1-5/8-12 UN Side 3 Standard: SAE J514 – Class 2A Thread Side 3 Role: Line/Tube Connection
Body & Materials	Shape: Tee Shape Type: Branch Tee Primary Material: Steel Material Grade: 1018/1020 Plating: Unplated
Dimensions	Weight: 1.15 lb
Performance Specifications	Working Pressure: 4000 psi Temperature Range: -65°F to 500°F Burst Pressure: 16000 psi Burst Ratio: 4:1
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Tube Bore x Tube Bore x Male JIC
Technical Series Configuration	SAE J514 Tube Bore x Tube Bore x Male JIC Tube Branch Tee
Side 1 Connection Type	Bore
Side 2 Connection Type	Bore
Shape	Tee
Product Type	Fittings
