0304-C-02-SS - Capital Rubber & Gasket: A Singer Industrial Company

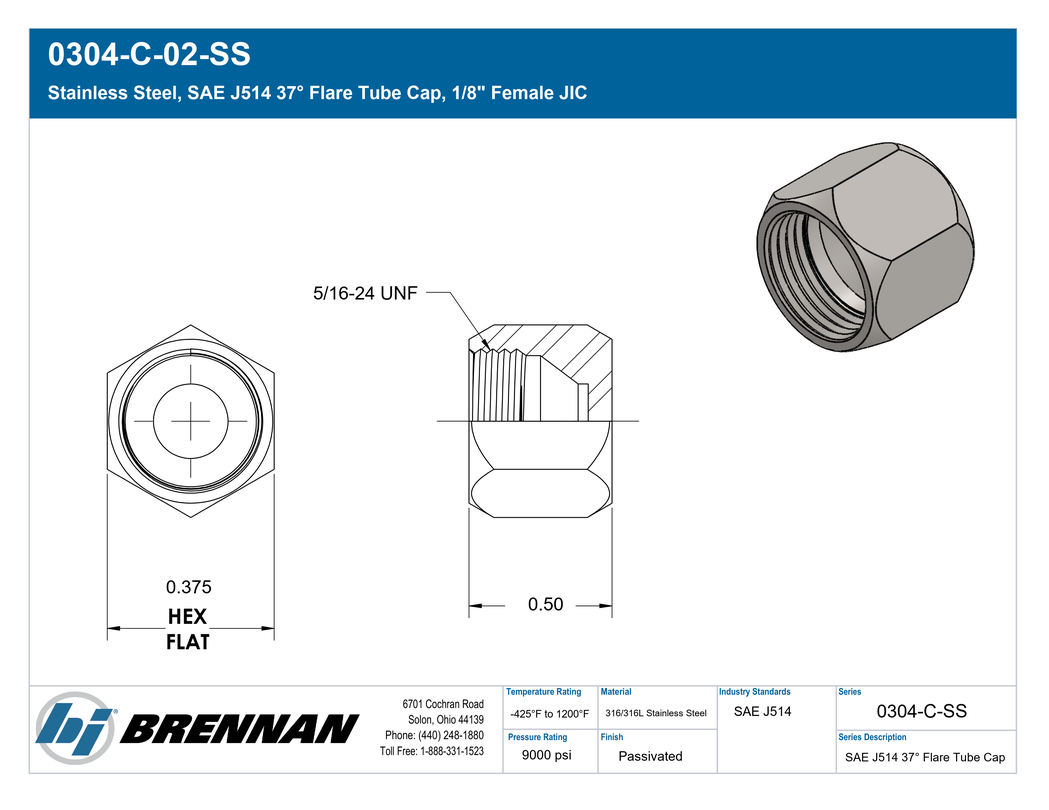

Stainless Steel, SAE J514 37° Flare Tube Cap, 1/8″ Female JIC

Connection Details	Connection Type: Female JIC Tube OD: 1/8" Thread Type: 5/16-24 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line Connection Connection Role: Line Connection
Body & Materials	Shape: Cap Shape Type: Cap Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.01 lb
Performance Specifications	Working Pressure: 9000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 36000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-210292-2 Parker TFD Part Number: 2 FNTX-SS SAE J514 Part Number: SAE J514 2 070112S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	JIC Cap
Technical Series Configuration	SAE J514 Female JIC Tube Cap
Side 1 Connection Type	Female JIC
Shape	Cap/Plug
Product Type	Fittings
