D0328-L08

Connection Details	Connection Type: DIN Tube Nut Tube OD: 8mm DIN Pressure Series: Light Thread Type: Female Metric Standard: ISO 8434-1 Connection Standard: ISO 8434-1 Role: Tube Connection Connection Role: Tube Connection
Body & Materials	Shape: Nut Shape Type: Tube Nut Primary Material: Steel Material Grade: 11SMnPb30 Plating: Zinc Nickel

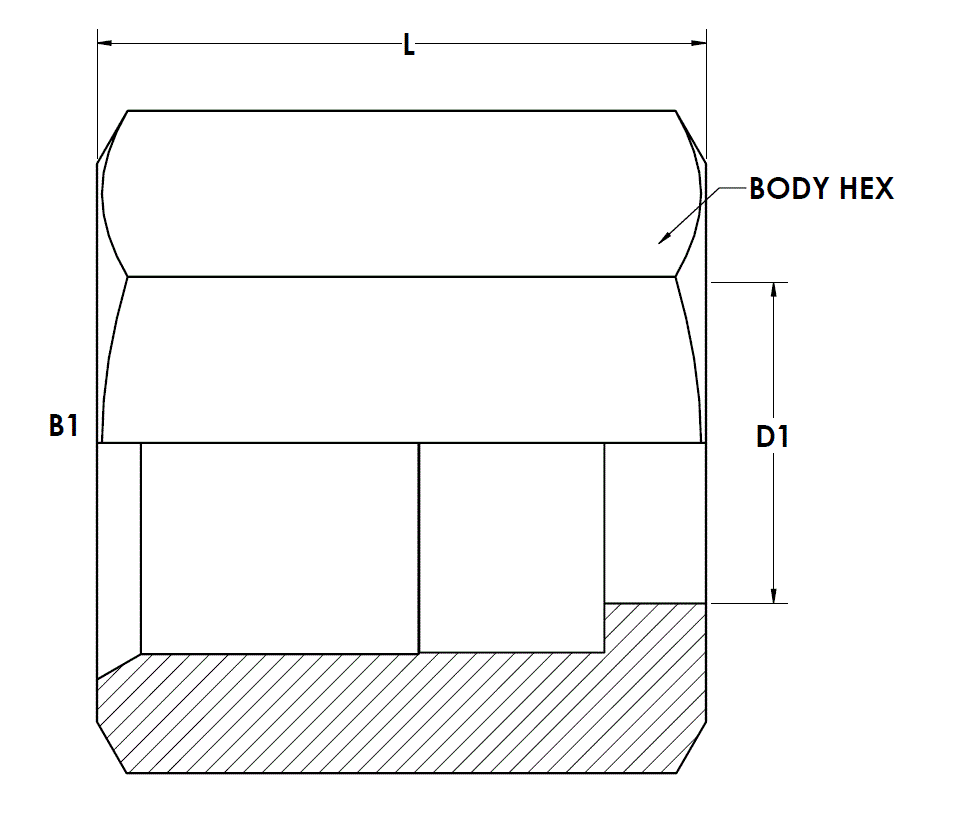

Dimensions	Hex/Wrench: 17mm Weight: 0.04 lb
Performance Specifications	Working Pressure: 7252 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 1,000 hrs no red rust per DIN ISO 9227 Burst Pressure: 29008 psi Burst Ratio: 4:1
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Metric Tube Nut
Technical Series Configuration	ISO 8434-1 Female Metric Thread Tube Nut
Side 1 Connection Type	DIN Tube Nut
Shape	Nut/Sleeve
Product Type	Fittings
