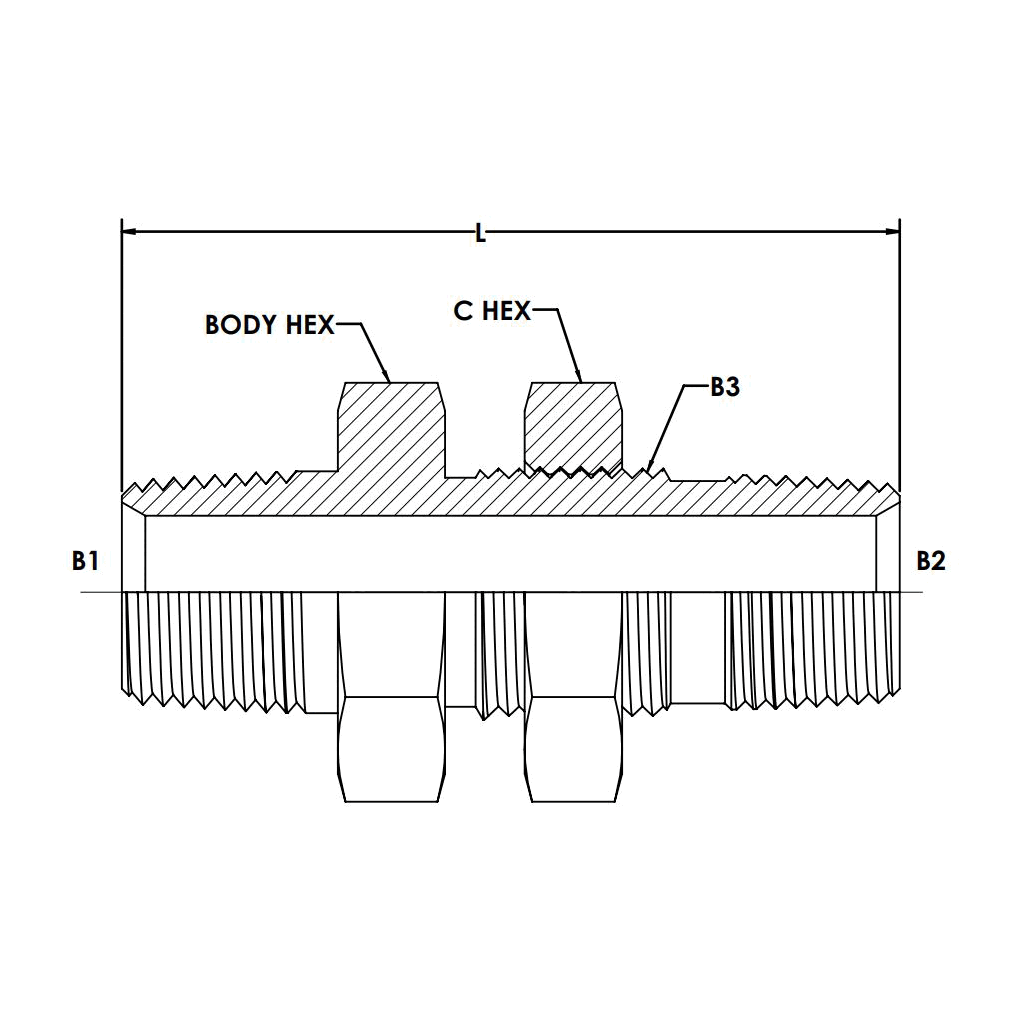

2708-LN-06-06

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 3/8" Side 1 Thread Type: 3/8-18 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 3/8" Side 2 Thread Type: 3/8-18 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Shape Type: Male Bulkhead Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc Feature: Bulkhead
Dimensions	Weight: 0.26 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 24000 psi Burst Ratio: 4:1
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male Pipe x Male Pipe Bulkhead, With Lock Nut
Technical Series Configuration	SAE J476 Male NPTF x SAE J476 Male NPTF Bulkhead With Lock Nut
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Male NPTF 30°
Shape	Straight
Product Type	Fittings
