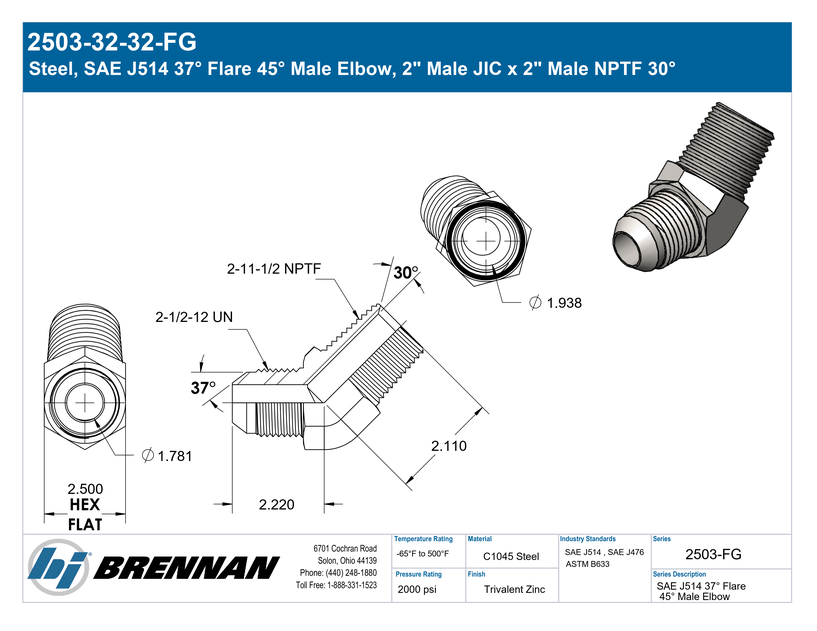

Steel, SAE J514 37° Flare 45° Male Elbow, 2″ Male JIC x 2″ Male NPTF 30°

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 2" Side 1 Thread Type: 2-1/2-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 2" Side 2 Thread Type: 2-11-1/2 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 45° Elbow Shape Type: Male Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 2.500 Weight: 2.42 lb
Performance Specifications	Working Pressure: 2000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 8000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2023-32-32S Parker Hose Part Number: 3103-32-32 Parker TFD Part Number: 32 VTX-S SAE J514 Part Number: SAE J514 32-32 070302C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF 45° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	45° Elbow
Product Type	Fittings
