2503-04-06-B - Capital Rubber & Gasket: A Singer Industrial Company

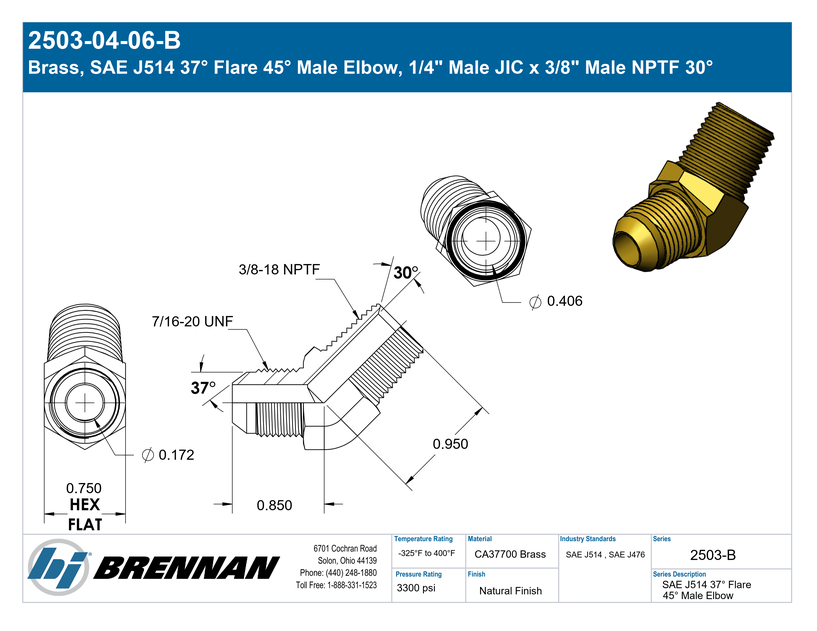

Brass, SAE J514 37° Flare 45° Male Elbow, 1/4″ Male JIC x 3/8″ Male NPTF 30°

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 3/8" Side 2 Thread Type: 3/8-18 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 45° Elbow Shape Type: Male Elbow Primary Material: Brass Material Grade: CA377 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 0.750 Weight: 0.11 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2023-6-4B Parker TFD Part Number: 4-6 VTX-B SAE J514 Part Number: SAE J514 4-6 070302B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF 45° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	45° Elbow
Product Type	Fittings
