2501-L-06-02-SS - Capital Rubber & Gasket: A Singer Industrial Company

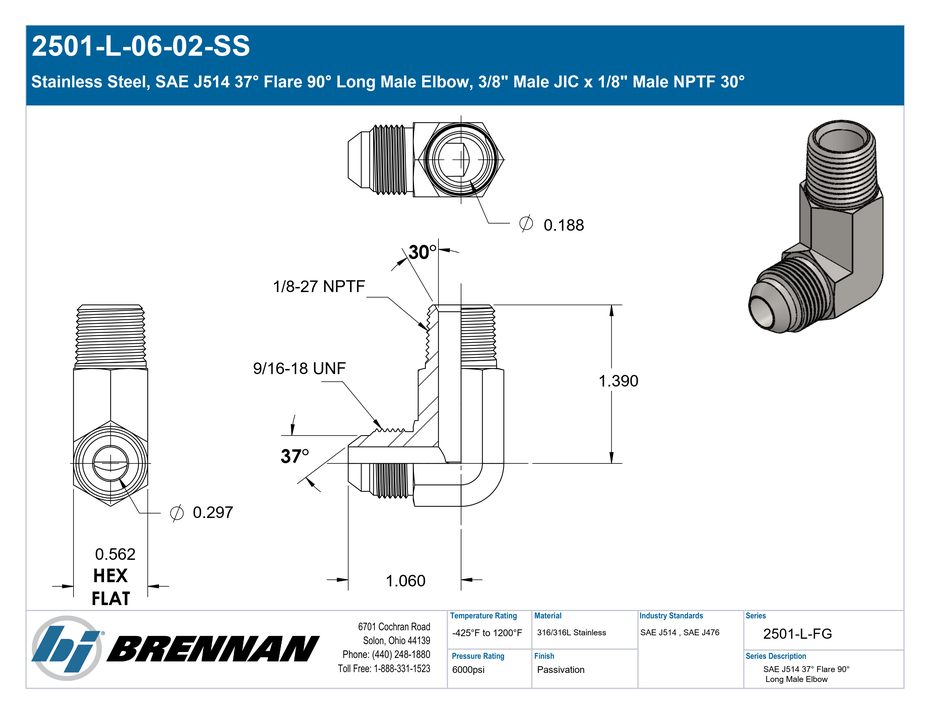

Stainless Steel, SAE J514 37° Flare 90° Long Male Elbow, 3/8″ Male JIC x 1/8″ Male NPTF 30°

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-18 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 1/8" Side 2 Thread Type: 1/8-27 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Male Elbow Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 0.562 Weight: 0.11 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-202411-2-6 Parker TFD Part Number: 6-2 CCTX-SS SAE J514 Part Number: SAE J514 6-2 071502S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	90° Elbow
Product Type	Fittings
