2408-06-B - Capital Rubber & Gasket: A Singer Industrial Company

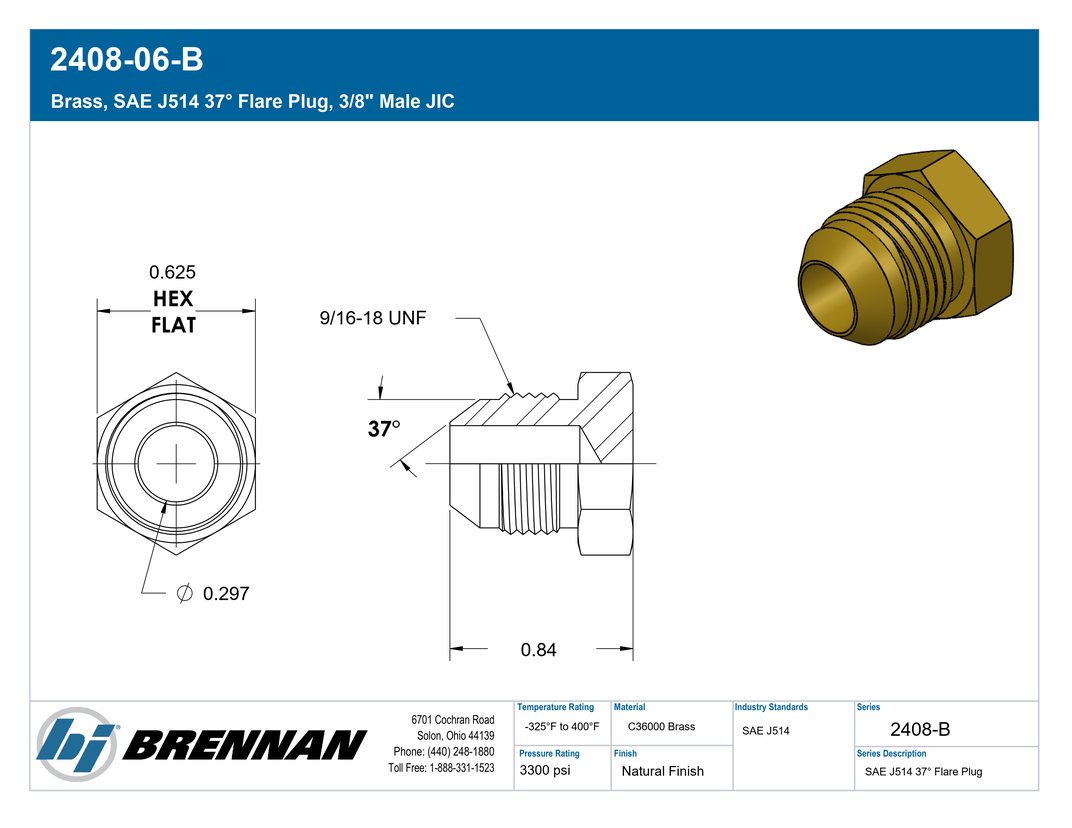

Brass, SAE J514 37° Flare Plug, 3/8″ Male JIC

Connection Details	Connection Type: Male JIC Tube OD: 3/8" Thread Type: 9/16-18 UNF Standard: SAE J514 – Class 2A Thread Connection Standard: SAE J514 – Class 2A Thread Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Plug Shape Type: Plug Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.05 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 900599-6B Parker Hose Part Number: 03CP-6 Parker TFD Part Number: 6 PNTX-B SAE J514 Part Number: SAE J514 6 070109B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC Plug
Technical Series Configuration	SAE J514 Male JIC Tube Plug
Side 1 Connection Type	Male JIC
Shape	Cap/Plug
Product Type	Fittings
