2406-10-06-B - Capital Rubber & Gasket: A Singer Industrial Company

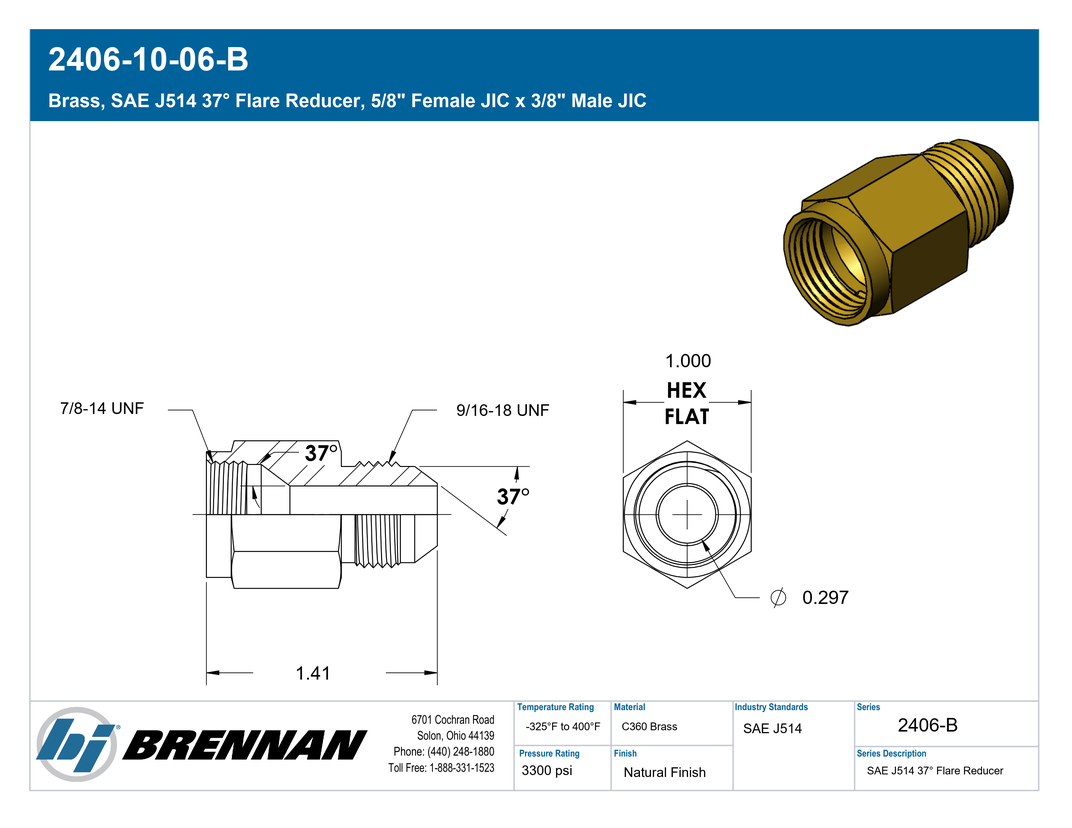

Brass, SAE J514 37° Flare Reducer, 5/8″ Female JIC x 3/8″ Male JIC

Connection Details	Side 1 Connection Type: Female JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2B Thread Side 1 Role: Line Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Reducer Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.14 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2215-10-6B Parker TFD Part Number: 10-6 TRTXN-B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Female JIC x Male JIC
Technical Series Configuration	SAE J514 Female JIC Tube x SAE J514 Male JIC Tube Reducer
Side 1 Connection Type	Female JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
