2406-06-06-R.045 - Capital Rubber & Gasket: A Singer Industrial Company

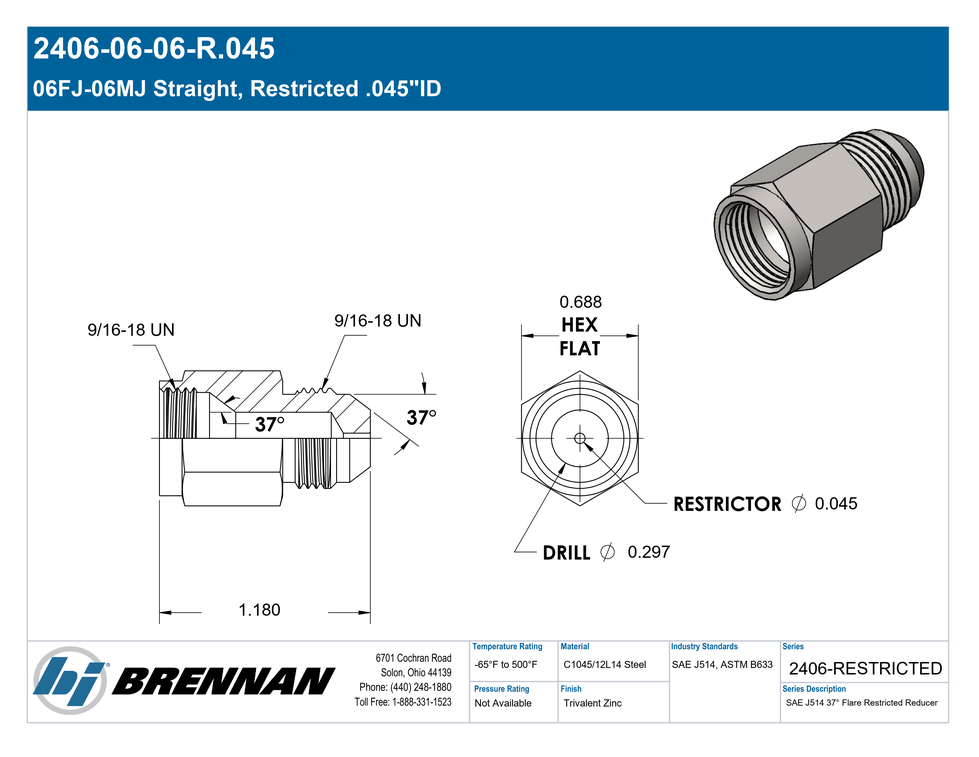

Steel, SAE J514 37° Flare Restricted Reducer, 3/8″ Female JIC x 3/8″ Male JIC, .045″ Orifice

Connection Details	Side 1 Connection Type: Female JIC Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-18 UNF Side 1 Standard: SAE J514 – Class 2B Thread Side 1 Role: Line Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Restricted Reducer Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Restricted Orifice: .045" Weight: 0.07 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: FF1981-045-0606S Parker TFD Part Number: 6 XHX7-S .045 ORIFICE
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Female JIC x Male JIC, Restricted
Technical Series Configuration	SAE J514 Female JIC Tube x SAE J514 Male JIC Tube Reducer, Orifice Drill
Side 1 Connection Type	Female JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
