2406-04-06-SS - Capital Rubber & Gasket: A Singer Industrial Company

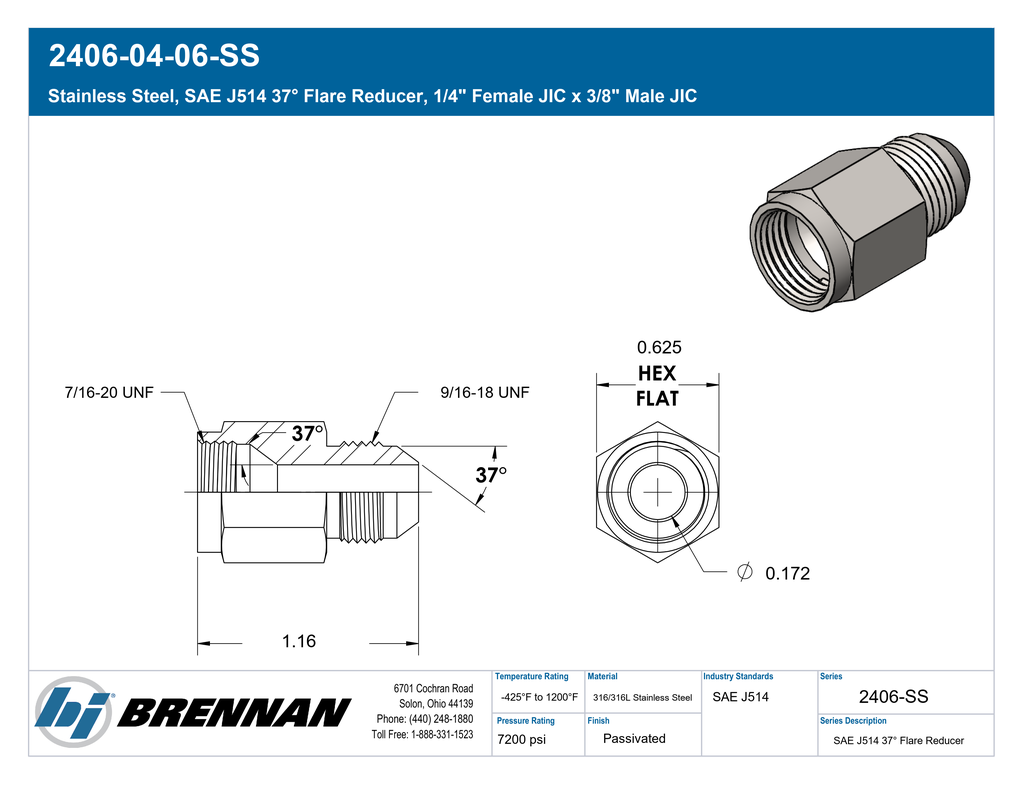

Stainless Steel, SAE J514 37° Flare Reducer, 1/4″ Female JIC x 3/8″ Male JIC

Connection Details	Side 1 Connection Type: Female JIC Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Standard: SAE J514 – Class 2B Thread Side 1 Role: Line Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Reducer Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.07 lb
Performance Specifications	Working Pressure: 7200 psi Temperature Range: -425°F to 1200°F Burst Pressure: 28800 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2215-4-6 Parker TFD Part Number: 4-6 TRTXN-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female JIC x Male JIC
Technical Series Configuration	SAE J514 Female JIC Tube x SAE J514 Male JIC Tube Reducer
Side 1 Connection Type	Female JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
