2405-16-16-B - Capital Rubber & Gasket: A Singer Industrial Company

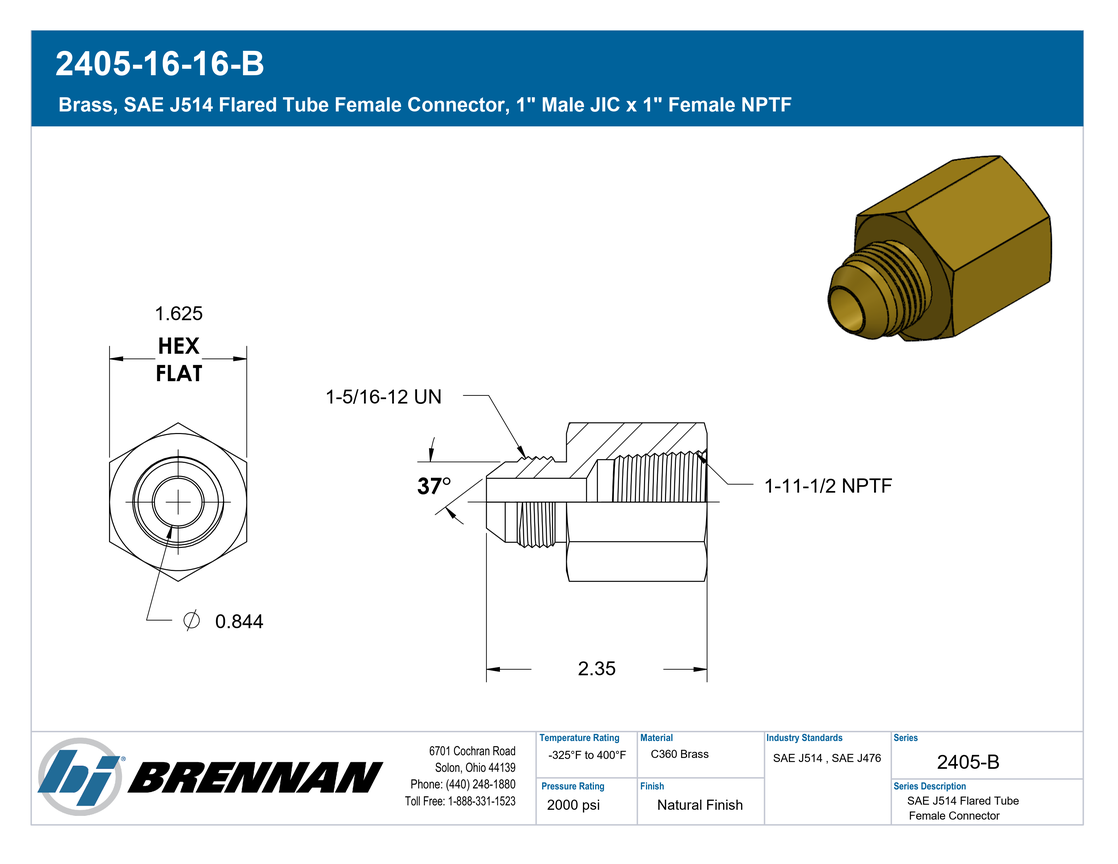

Brass, SAE J514 37° Flare Female Connector, 1″ Male JIC x 1″ Female NPTF

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1" Side 1 Thread Type: 1-5/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 1" Side 2 Thread Type: 1-11-1/2 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 1.625 Weight: 0.69 lb
Performance Specifications	Working Pressure: 2000 psi Temperature Range: -325°F to 400°F Burst Pressure: 8000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2022-16-16B Parker Hose Part Number: 0203-16-16-B Parker TFD Part Number: 16 GTX-B SAE J514 Part Number: SAE J514 16-16 070103B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Female Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Female NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Female NPTF
Shape	Straight
Product Type	Fittings
