2405-10-08-B - Capital Rubber & Gasket: A Singer Industrial Company

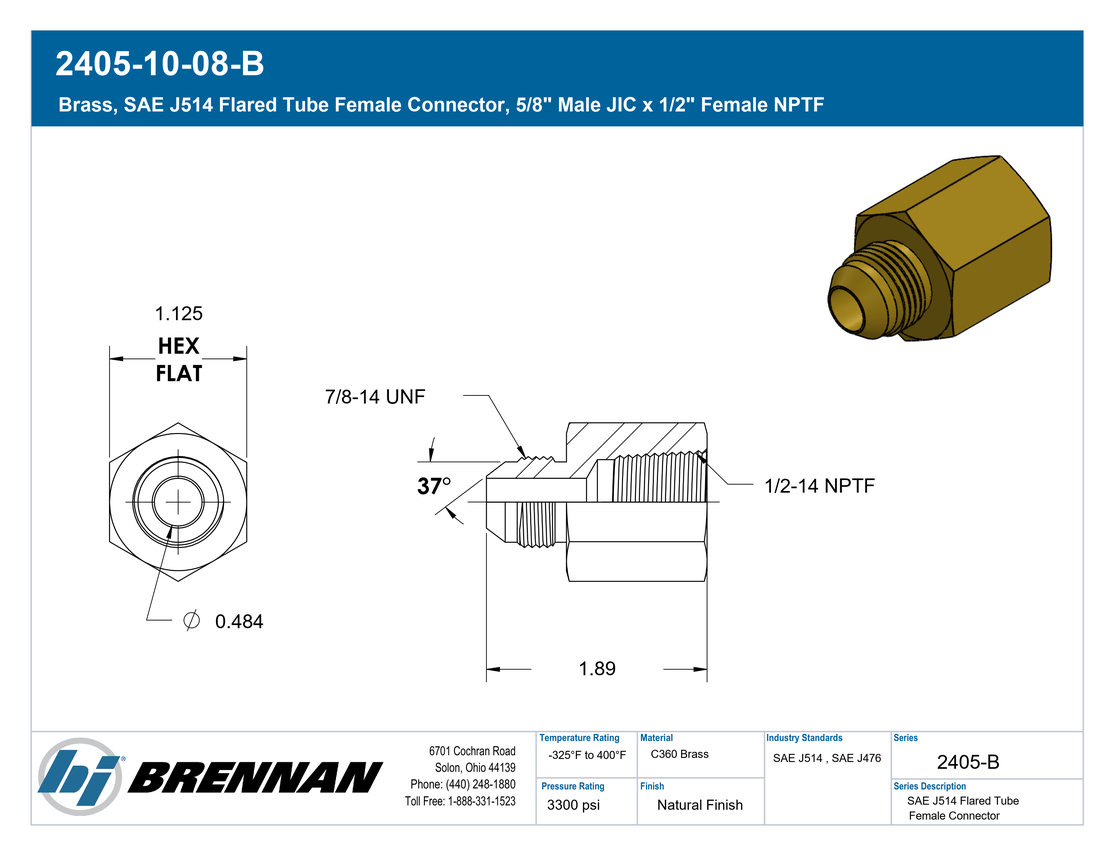

Brass, SAE J514 37° Flare Female Connector, 5/8″ Male JIC x 1/2″ Female NPTF

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Female NPTF Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPTF Side 2 Standard: SAE J476 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 1.125 Weight: 0.32 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2022-8-10B Parker Hose Part Number: 0203-8-10-B Parker TFD Part Number: 10 GTX-B SAE J514 Part Number: SAE J514 10-8 070103B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Female Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Female NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Female NPTF
Shape	Straight
Product Type	Fittings
