2404-32-20-SS - Capital Rubber & Gasket: A Singer Industrial Company

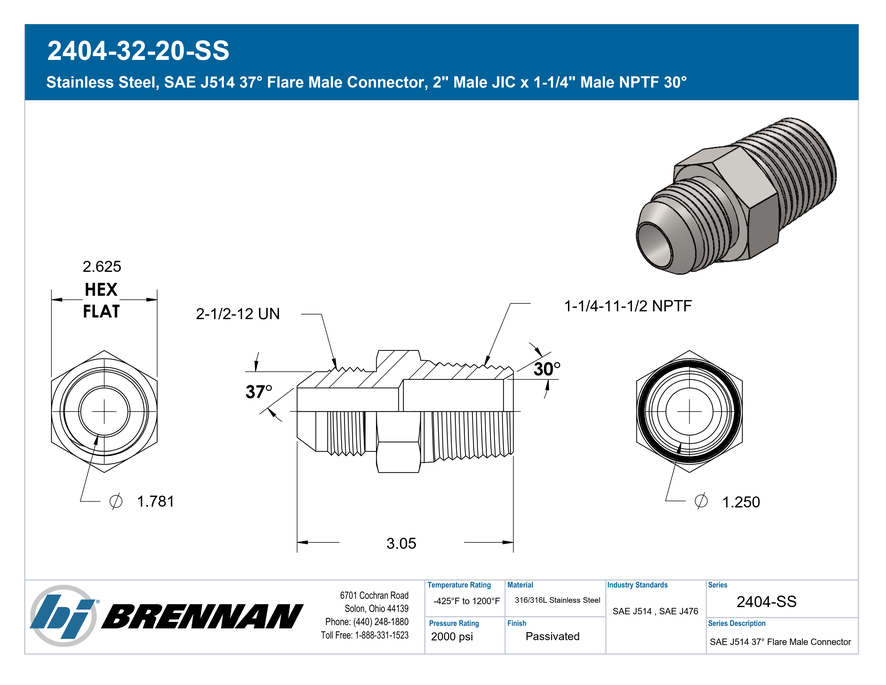

Stainless Steel, SAE J514 37° Flare Male Connector, 2″ Male JIC x 1-1/4″ Male NPTF 30°

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 2" Side 1 Thread Type: 2-1/2-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 1-1/4" Side 2 Thread Type: 1-1/4-11-1/2 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 2.625 Weight: 1.84 lb
Performance Specifications	Working Pressure: 2000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 8000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2021-20-32 Parker Hose Part Number: 0103-20-32-SS Parker TFD Part Number: 32-20 FTX-SS SAE J514 Part Number: SAE J514 32-20 070102S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	Straight
Product Type	Fittings
