2404-16-06 - Capital Rubber & Gasket: A Singer Industrial Company

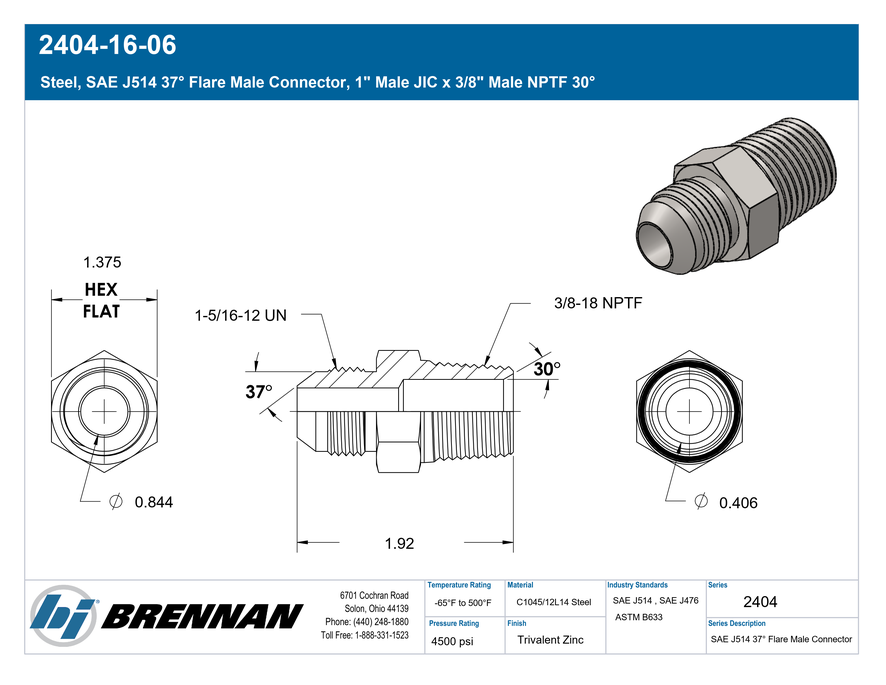

Steel, SAE J514 37° Flare Male Connector, 1″ Male JIC x 3/8″ Male NPTF 30°

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1" Side 1 Thread Type: 1-5/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male NPTF 30° Side 2 Pipe Size: 3/8" Side 2 Thread Type: 3/8-18 NPTF Side 2 Standard: SAE J476 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Shape Type: Connector Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 1.375 Weight: 0.35 lb
Performance Specifications	Working Pressure: 4500 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 18000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2021-6-16S Parker Hose Part Number: 0103-6-16 Parker TFD Part Number: 16-6 FTX-S SAE J514 Part Number: SAE J514 16-6 070102C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male Pipe
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J476 Male NPTF Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male NPTF 30°
Shape	Straight
Product Type	Fittings
