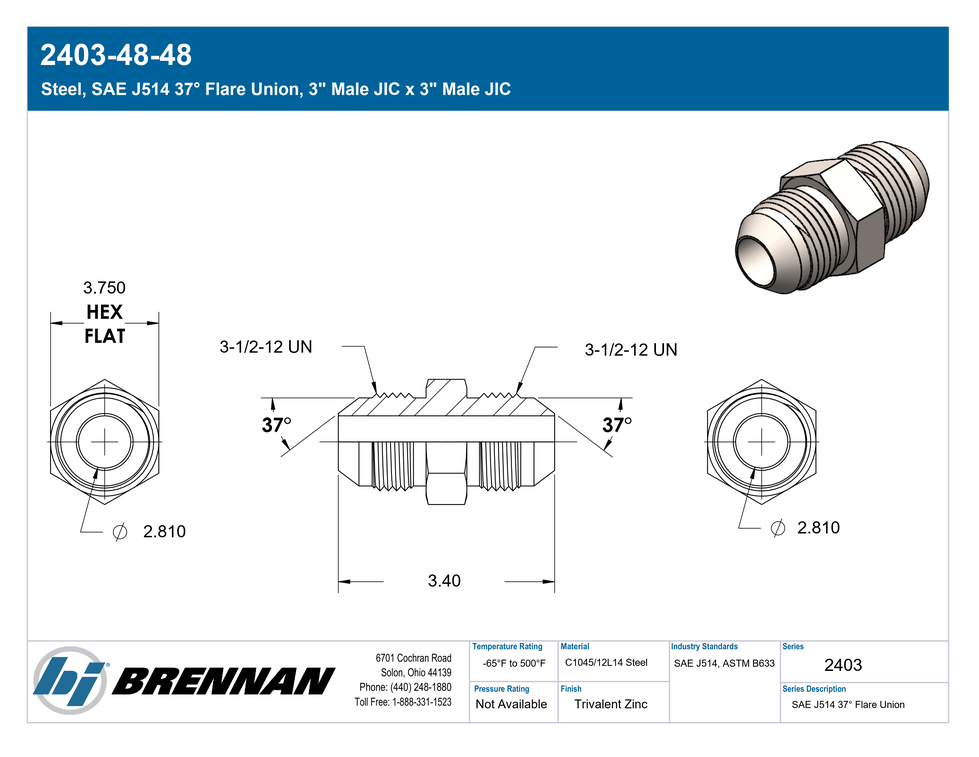

Steel, SAE J514 37° Flare Union, 3″ Male JIC x 3″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3" Side 1 Thread Type: 3-1/2-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3" Side 2 Thread Type: 3-1/2-12 UN Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Union Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Hex/Wrench: 3.750 Weight: 3.43 lb
Performance Specifications	Working Pressure: 600 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 2400 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2027-48-48S Parker Hose Part Number: 0303-48-48 Parker TFD Part Number: 48 HTX-S SAE J514 Part Number: SAE J514 48-48 070101C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J514 Male JIC Tube Union
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
