2403-24-10-SS - Capital Rubber & Gasket: A Singer Industrial Company

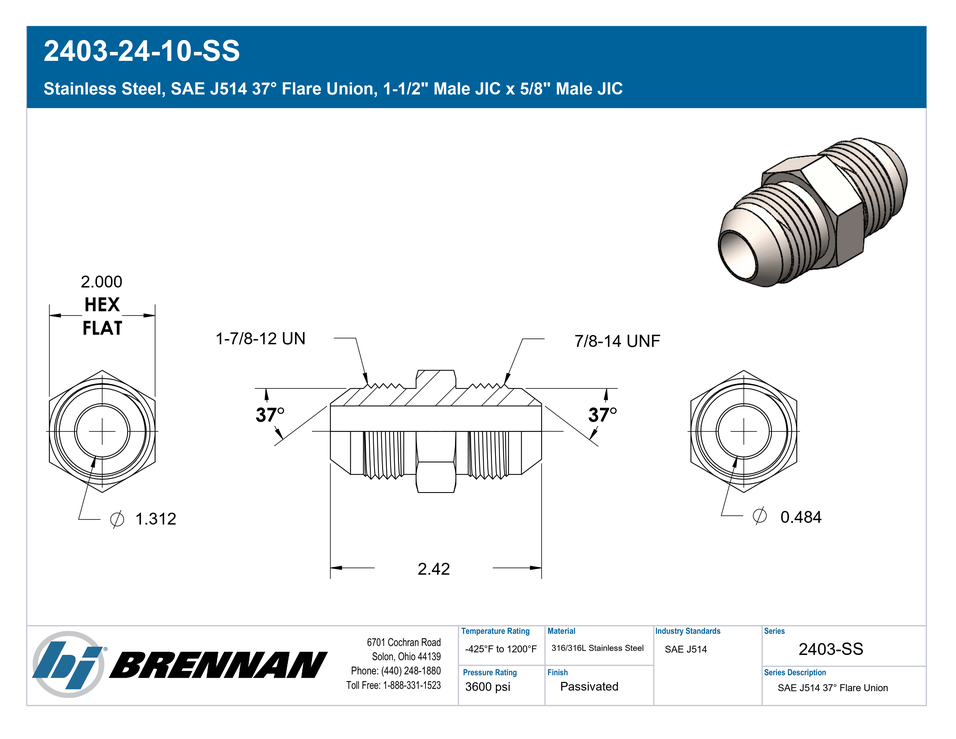

Stainless Steel, SAE J514 37° Flare Union, 1-1/2″ Male JIC x 5/8″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1-1/2" Side 1 Thread Type: 1-7/8-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 5/8" Side 2 Thread Type: 7/8-14 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Union Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 2.000 Weight: 0.81 lb
Performance Specifications	Working Pressure: 3600 psi Temperature Range: -425°F to 1200°F Burst Pressure: 14400 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2027-24-10 Parker Hose Part Number: 0303-10-24-SS Parker TFD Part Number: 24-10 HTX-SS SAE J514 Part Number: SAE J514 24-10 070101S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J514 Male JIC Tube Union
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
