2403-05-05-B - Capital Rubber & Gasket: A Singer Industrial Company

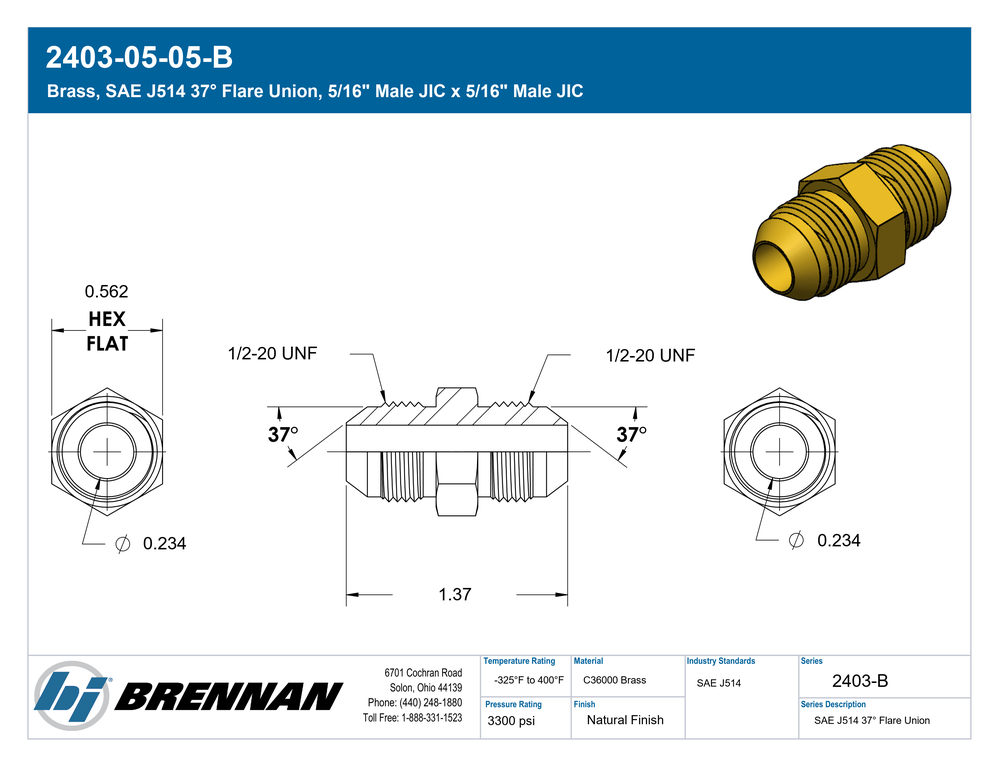

Brass, SAE J514 37° Flare Union, 5/16″ Male JIC x 5/16″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/16" Side 1 Thread Type: 1/2-20 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 5/16" Side 2 Thread Type: 1/2-20 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Union Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 0.562 Weight: 0.06 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2027-5-5B Parker Hose Part Number: 0303-5-5-B Parker TFD Part Number: 5 HTX-B SAE J514 Part Number: SAE J514 5-5 070101B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J514 Male JIC Tube Union
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
