2403-03-03-SS - Capital Rubber & Gasket: A Singer Industrial Company

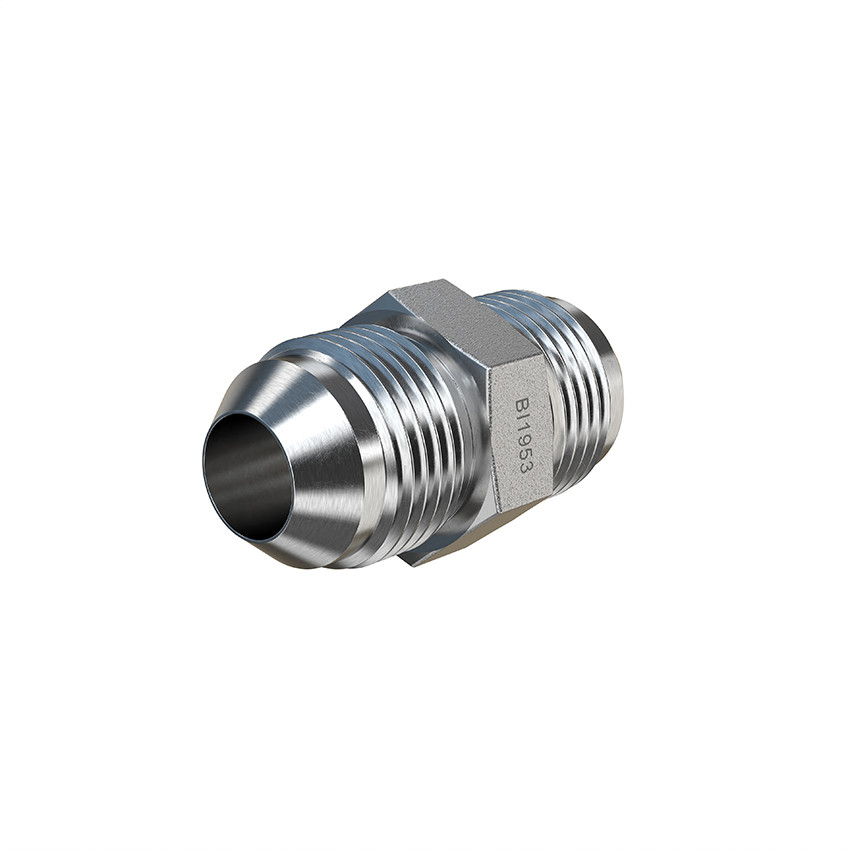

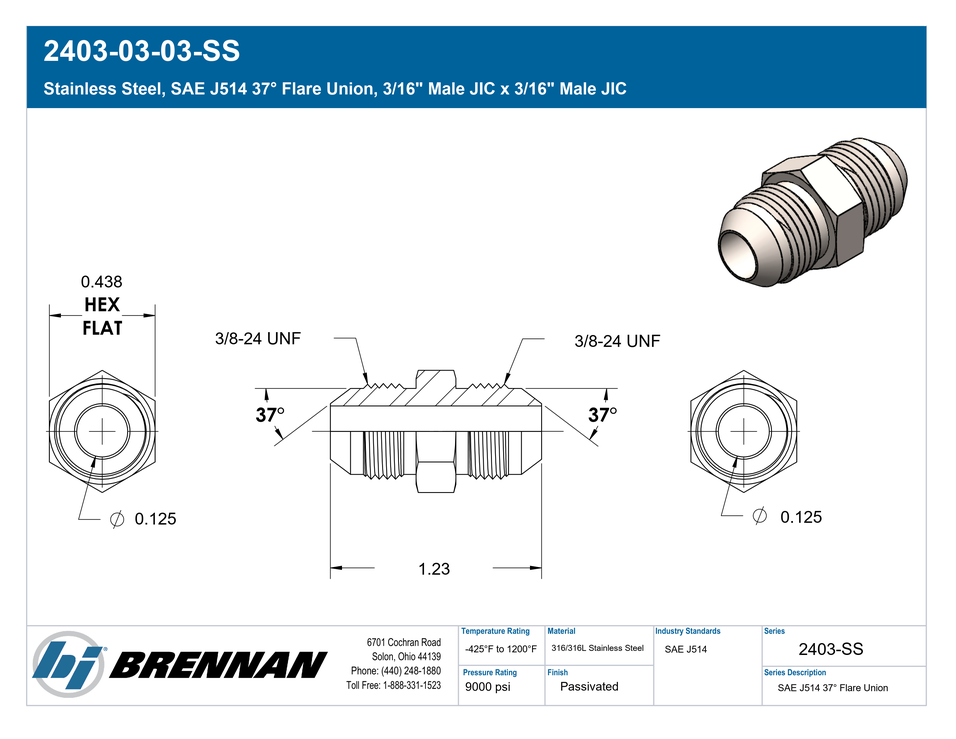

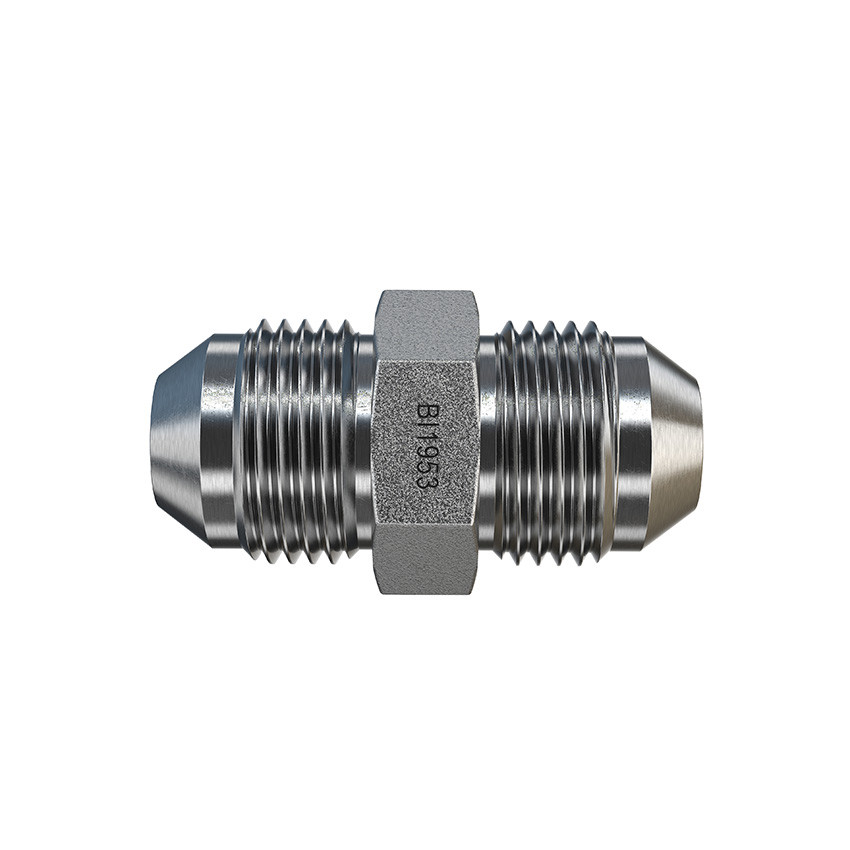

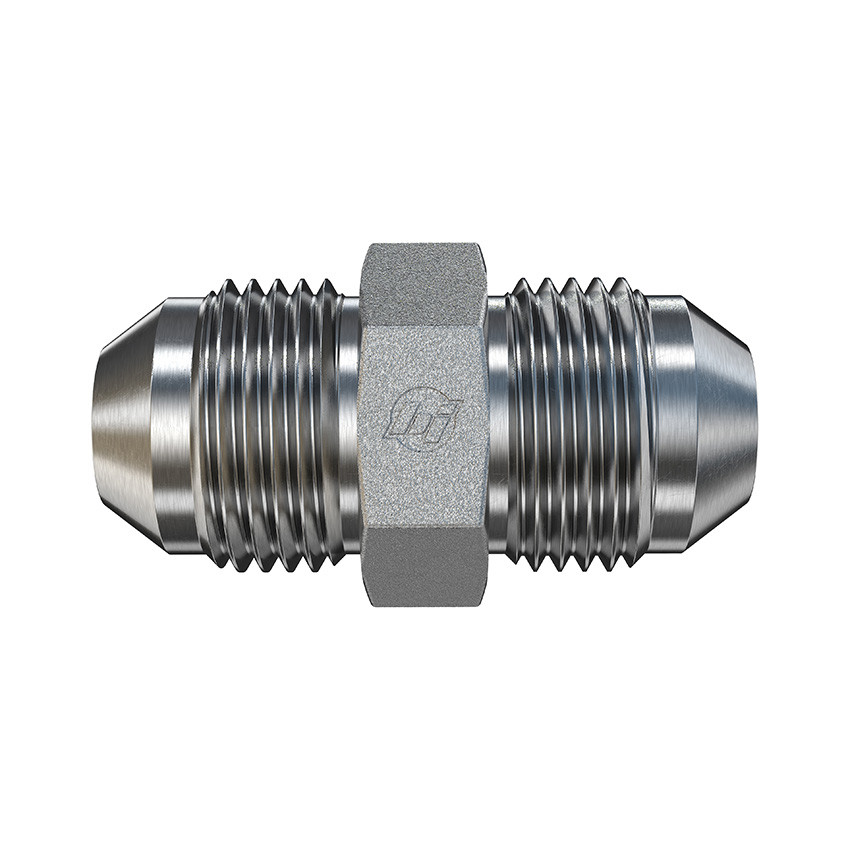

Stainless Steel, SAE J514 37° Flare Union, 3/16″ Male JIC x 3/16″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/16" Side 1 Thread Type: 3/8-24 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 3/16" Side 2 Thread Type: 3/8-24 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Union Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Hex/Wrench: 0.438 Weight: 0.04 lb
Performance Specifications	Working Pressure: 9000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 36000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2027-3-3 Parker Hose Part Number: 0303-3-3-SS Parker TFD Part Number: 3 HTX-SS SAE J514 Part Number: SAE J514 3-3 070101S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J514 Male JIC Tube Union
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
