2403-02-02-B - Capital Rubber & Gasket: A Singer Industrial Company

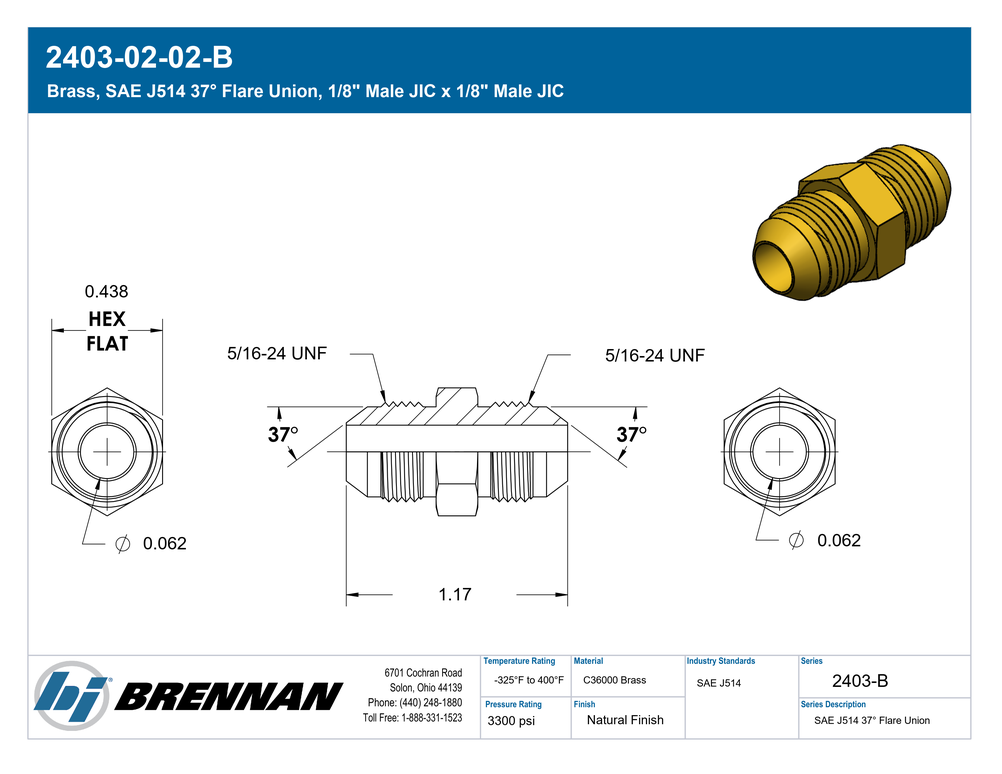

Brass, SAE J514 37° Flare Union, 1/8″ Male JIC x 1/8″ Male JIC

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/8" Side 1 Thread Type: 5/16-24 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/8" Side 2 Thread Type: 5/16-24 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Union Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Hex/Wrench: 0.438 Weight: 0.03 lb
Performance Specifications	Working Pressure: 3300 psi Temperature Range: -325°F to 400°F Burst Pressure: 13200 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2027-2-2B Parker Hose Part Number: 0303-2-2-B Parker TFD Part Number: 2 HTX-B SAE J514 Part Number: SAE J514 2-2 070101B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Male JIC
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J514 Male JIC Tube Union
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
