101HSS1/4 - Capital Rubber & Gasket: A Singer Industrial Company

Stainless Steel 316 Pipe Fitting, Union Tee, Female NPT 1/4″

Connection Details	Side 1 Connection Type: Female NPT Side 1 Pipe Size: 1/4" Side 1 Thread Type: 1/4-18 NPT Side 1 Standard: ASME/ANSI B1.20.1 Side 1 Role: Pipe Connection Side 2 Connection Type: Female NPT Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection Side 3 Connection Type: Female NPT Side 3 Pipe Size: 1/4" Side 3 Thread Type: 1/4-18 NPT Side 3 Standard: ASME/ANSI B1.20.1 Side 3 Role: Pipe Connection
Body & Materials	Shape: Tee Shape Type: Union Tee Primary Material: Stainless Steel Material Grade: 316L Surface Treatment: Passivated Length: 1.17"

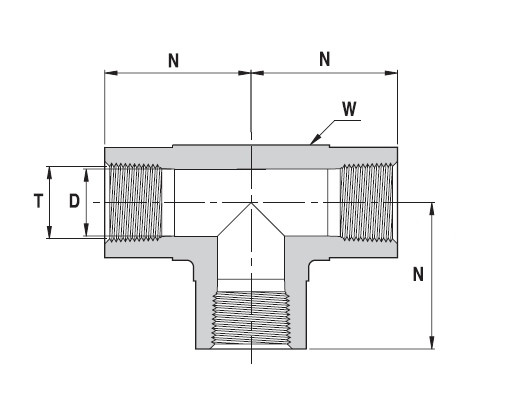

Dimensions	Hex/Wrench: 0.8125" Overall Length/Centerline: 1.17" Weight: 0.175 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Gal #: 3000976 Parker IPD ALOK Part Number: 4-4-4 FT-SS Swagelok Part Number: SS-4-T
Series Configuration	Female NPT x Female NPT x Female NPT
Side 1 Connection Type	Female NPT
Side 2 Connection Type	Female NPT
Product Type	Fittings
