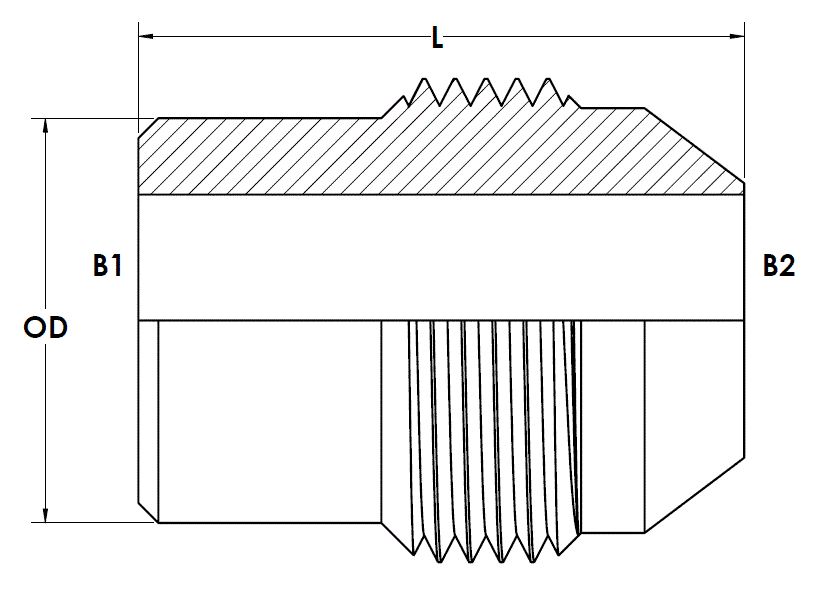

0403-TS-10-10

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 5/8" Side 1 Thread Type: 7/8-14 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Tube Spud Side 2 Tube OD: 3/8" Side 2 Standard: SAE J514 Side 2 Role: Weld Connection
Body & Materials	Shape: Straight Shape Type: Tube Spud Primary Material: Steel Material Grade: 1018/1020 Plating: Unplated
Dimensions	Weight: 0.09 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 73420-3-10S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Tube Spud x Male JIC
Technical Series Configuration	SAE J514 Tube Spud x Male JIC Tube Connector
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Tube Spud
Shape	Straight
Product Type	Fittings
