0403-08-08 - Capital Rubber & Gasket: A Singer Industrial Company

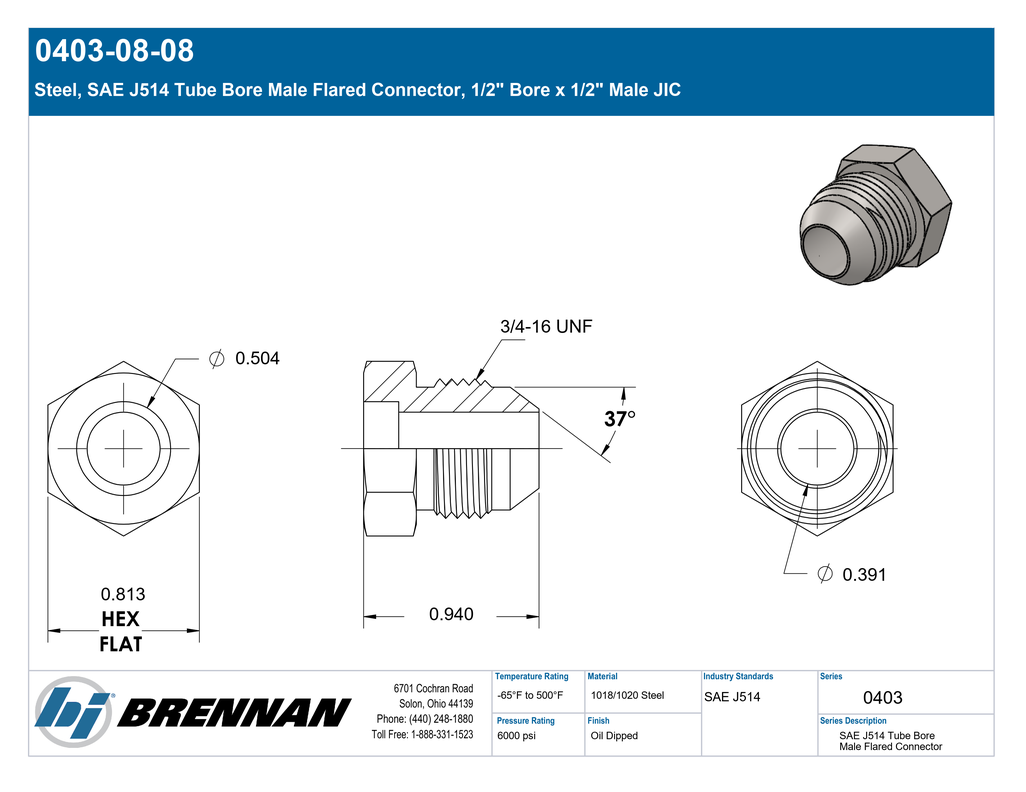

Steel, SAE J514 Tube Bore Male Flared Connector, 1/2″ Bore x 1/2″ Male JIC

Connection Details	Side 1 Connection Type: Bore Side 1 Tube OD: 1/2" Side 1 Standard: Not Defined Side 1 Role: Tube Connection Side 2 Connection Type: Male JIC Side 2 Tube OD: 1/2" Side 2 Thread Type: 3/4-16 UNF Side 2 Standard: SAE J514 – Class 2A Thread Side 2 Role: Line/Tube Connection
Body & Materials	Shape: Straight Shape Type: Male Connector Primary Material: Steel Material Grade: 1018/1020 Plating: Unplated
Dimensions	Weight: 0.07 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -65°F to 500°F Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 73014-8S Parker TFD Part Number: 8 XHB3-S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Tube Bore x Male JIC
Technical Series Configuration	SAE J514 Tube Bore x Male JIC Tube Connector
Side 1 Connection Type	Bore
Side 2 Connection Type	Male JIC
Shape	Straight
Product Type	Fittings
