0319-32-B - Capital Rubber & Gasket: A Singer Industrial Company

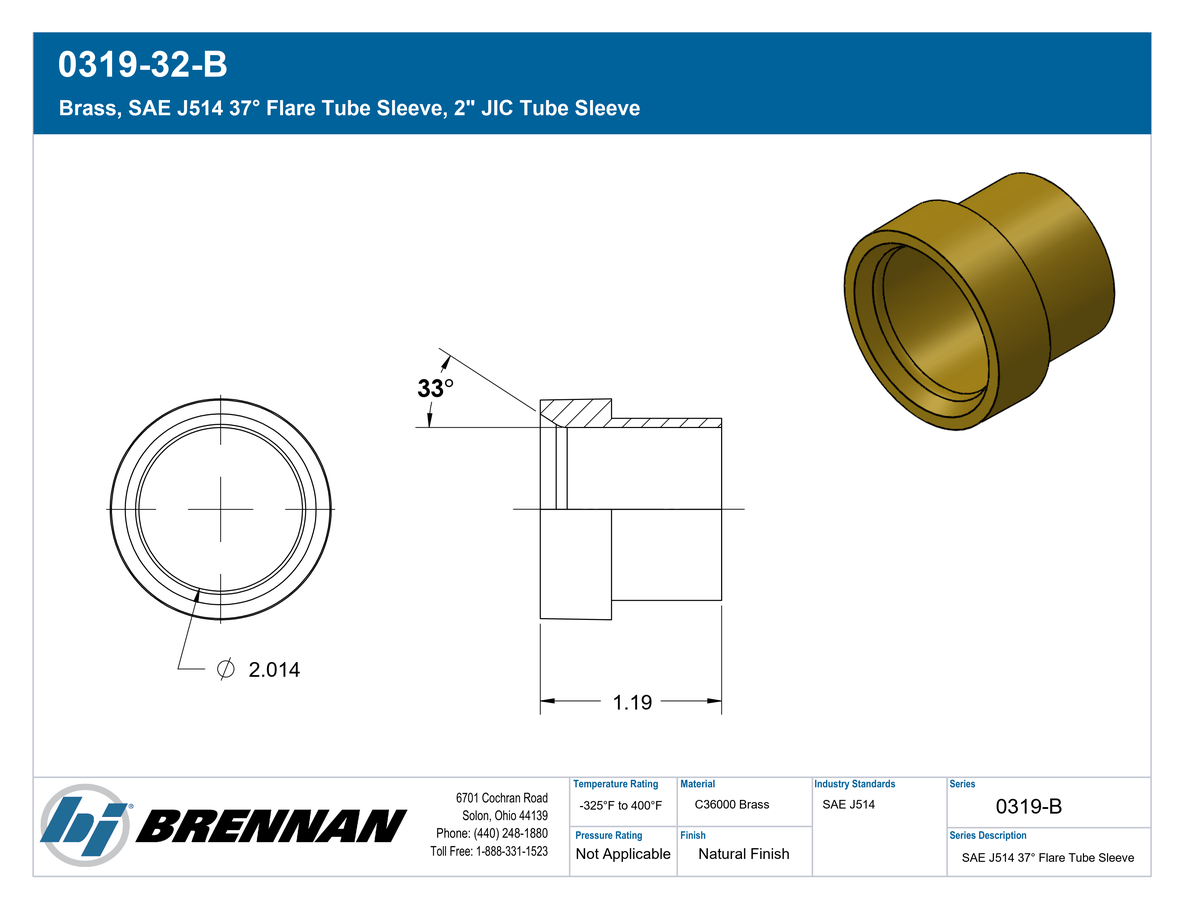

Brass, SAE J514 37° Flare Tube Sleeve, 2″ JIC Tube Sleeve

Connection Details	Connection Type: JIC Tube Sleeve Tube OD: 2" Standard: SAE J514 Connection Standard: SAE J514 Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Sleeve Shape Type: Tube Sleeve Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.27 lb
Performance Specifications	Temperature Range: -325°F to 400°F
Cross References	Aeroquip Part Number: 900605-32B Parker TFD Part Number: 32 TX-B SAE J514 Part Number: SAE J514 32 070115B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Tube Sleeve
Technical Series Configuration	SAE J514 Tube Sleeve
Side 1 Connection Type	JIC Tube Sleeve
Shape	Nut/Sleeve
Product Type	Fittings
