0318-32-SS - Capital Rubber & Gasket: A Singer Industrial Company

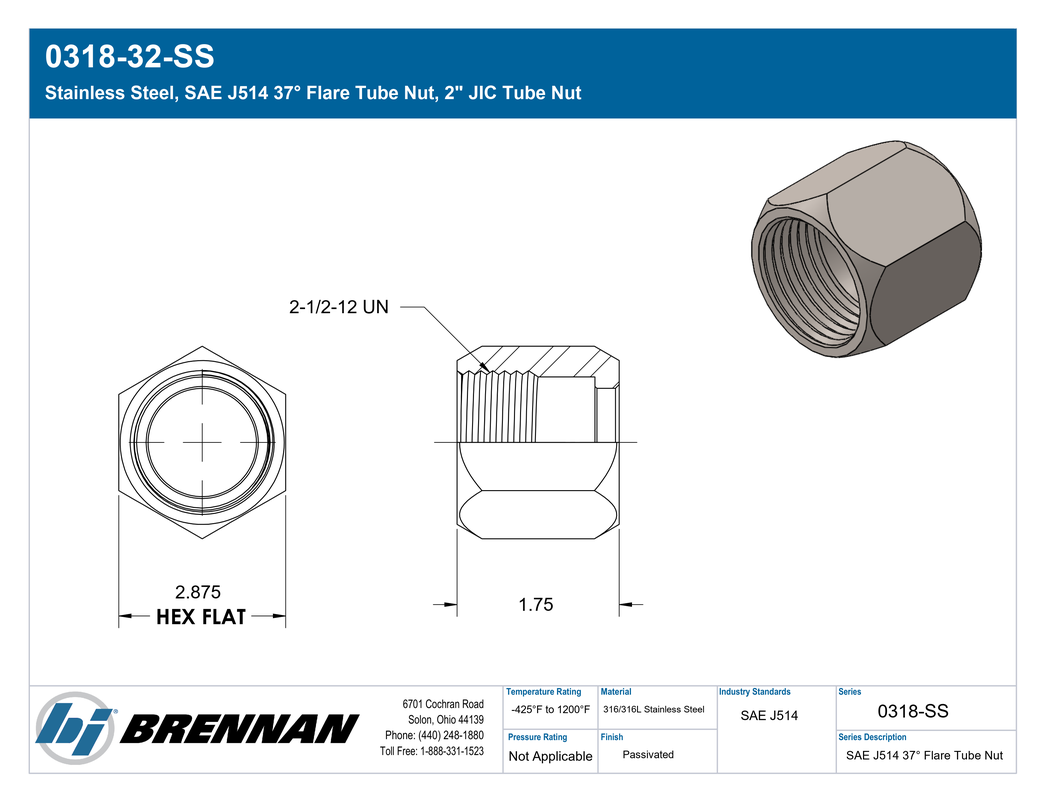

Stainless Steel, SAE J514 37° Flare Tube Nut, 2″ JIC Tube Nut

Connection Details	Connection Type: JIC Tube Nut Tube OD: 2" Thread Type: 2-1/2-12 UN Standard: SAE J514 Connection Standard: SAE J514 Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Nut Shape Type: Tube Nut Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 1.28 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Aeroquip Part Number: 259-1290-32 Parker Hose Part Number: 111-32-SS Parker TFD Part Number: 32 BTX-SS SAE J514 Part Number: SAE J514 32 070110S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	JIC Tube Nut
Technical Series Configuration	SAE J514 Female UN/UNF Tube Nut
Side 1 Connection Type	JIC Tube Nut
Shape	Nut/Sleeve
Product Type	Fittings
