0318-24-SS - Capital Rubber & Gasket: A Singer Industrial Company

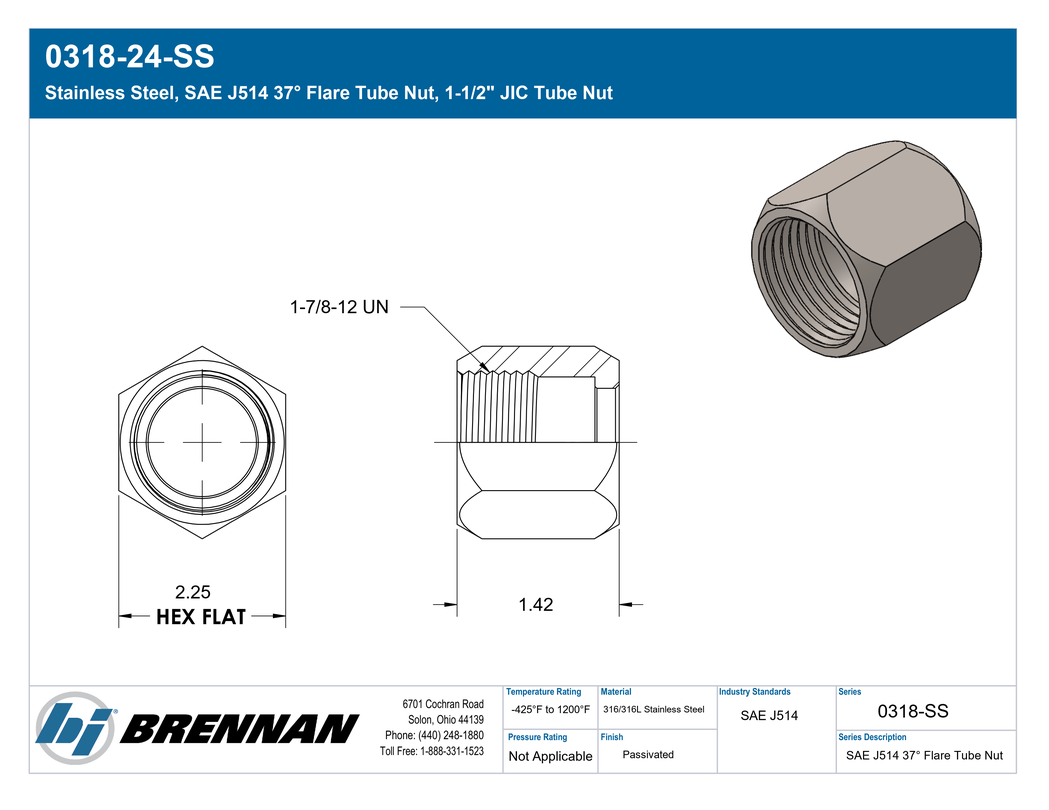

Stainless Steel, SAE J514 37° Flare Tube Nut, 1-1/2″ JIC Tube Nut

Connection Details	Connection Type: JIC Tube Nut Tube OD: 1-1/2" Thread Type: 1-7/8-12 UN Standard: SAE J514 Connection Standard: SAE J514 Role: Line/Tube Connection Connection Role: Line/Tube Connection
Body & Materials	Shape: Nut Shape Type: Tube Nut Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.73 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Aeroquip Part Number: 259-1290-24 Parker Hose Part Number: 111-24-SS Parker TFD Part Number: 24 BTX-SS SAE J514 Part Number: SAE J514 24 070110S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	JIC Tube Nut
Technical Series Configuration	SAE J514 Female UN/UNF Tube Nut
Side 1 Connection Type	JIC Tube Nut
Shape	Nut/Sleeve
Product Type	Fittings
