0304-C-16-B - Capital Rubber & Gasket: A Singer Industrial Company

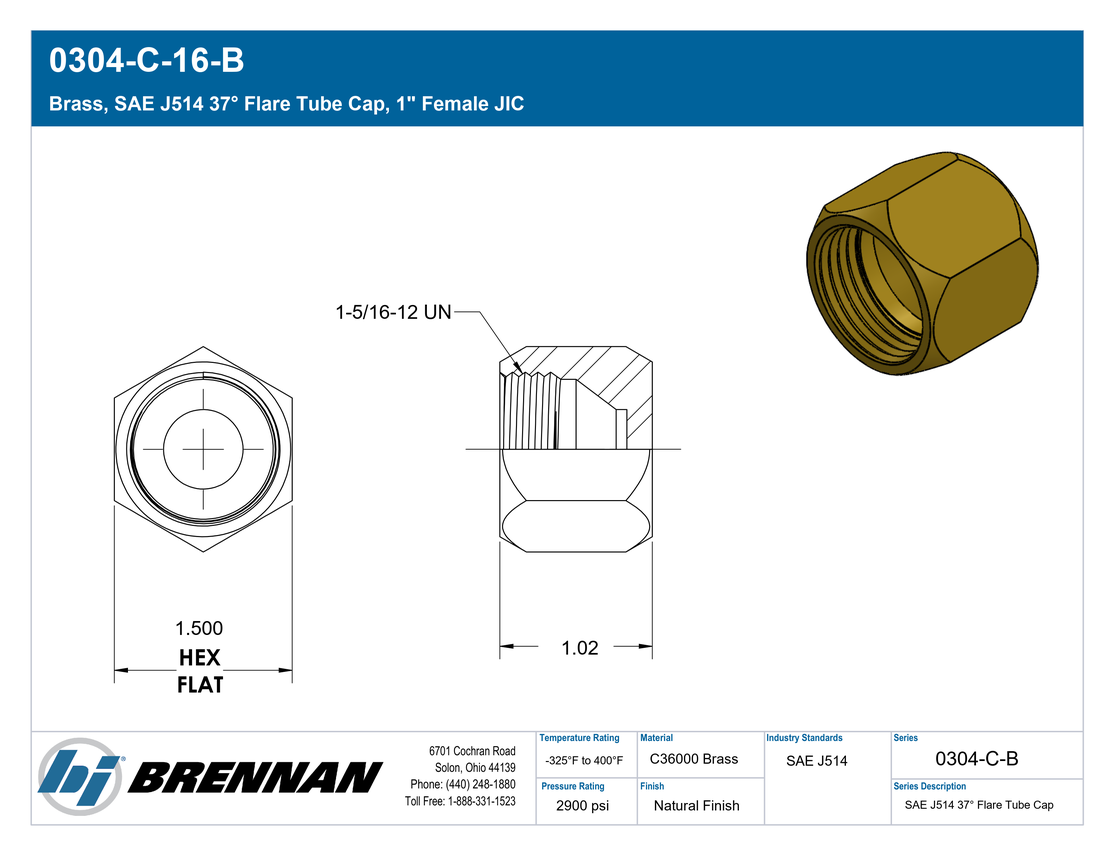

Brass, SAE J514 37° Flare Tube Cap, 1″ Female JIC

Connection Details	Connection Type: Female JIC Tube OD: 1" Thread Type: 1-5/16-12 UN Standard: SAE J514 Connection Standard: SAE J514 Role: Line Connection Connection Role: Line Connection
Body & Materials	Shape: Cap Shape Type: Cap Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish
Dimensions	Weight: 0.28 lb
Performance Specifications	Working Pressure: 2900 psi Temperature Range: -325°F to 400°F Burst Pressure: 11600 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 210292-16B Parker Hose Part Number: 06CP-16B Parker TFD Part Number: 16 FNTX-B SAE J514 Part Number: SAE J514 16 070112B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Cap
Technical Series Configuration	SAE J514 Female JIC Tube Cap
Side 1 Connection Type	Female JIC
Shape	Cap/Plug
Product Type	Fittings
