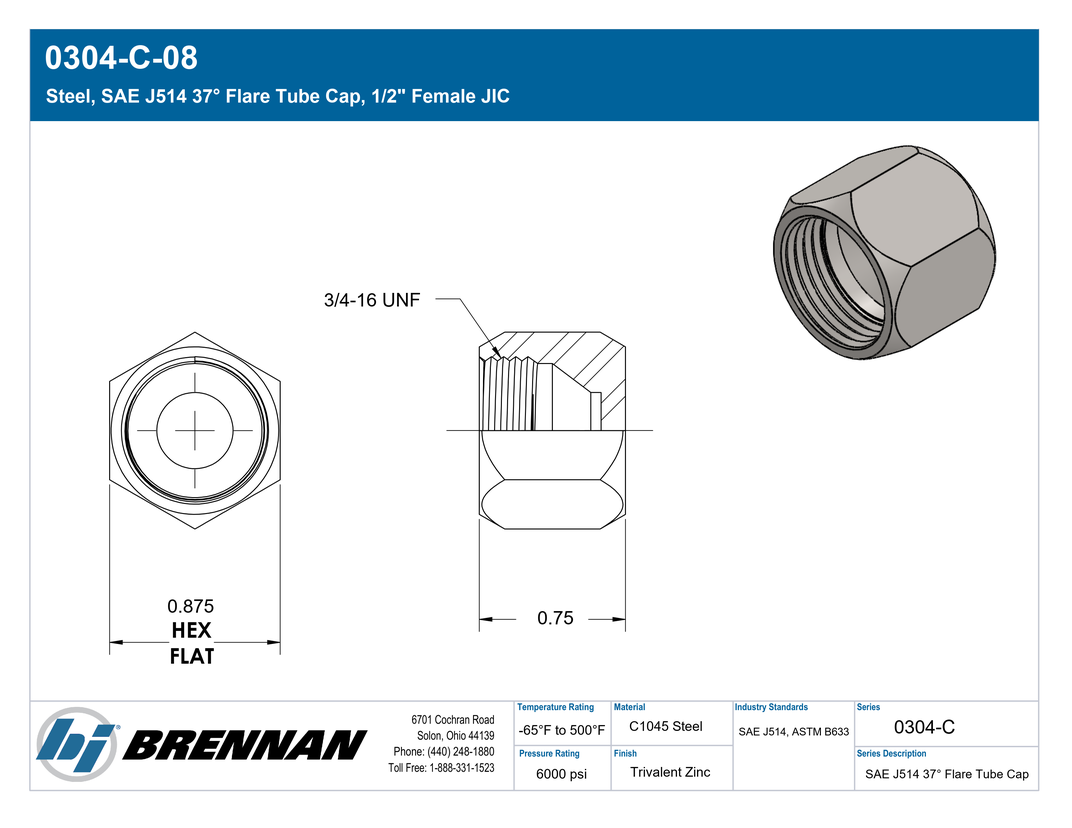

Steel, SAE J514 37° Flare Tube Cap, 1/2″ Female JIC

Connection Details	Connection Type: Female JIC Tube OD: 1/2" Thread Type: 3/4-16 UNF Standard: SAE J514 Connection Standard: SAE J514 Role: Line Connection Connection Role: Line Connection
Body & Materials	Shape: Cap Shape Type: Cap Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.08 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 210292-8S Parker Hose Part Number: 06CP-8 Parker TFD Part Number: 8 FNTX-S SAE J514 Part Number: SAE J514 8 070112C
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	JIC Cap
Technical Series Configuration	SAE J514 Female JIC Tube Cap
Side 1 Connection Type	Female JIC
Shape	Cap/Plug
Product Type	Fittings
